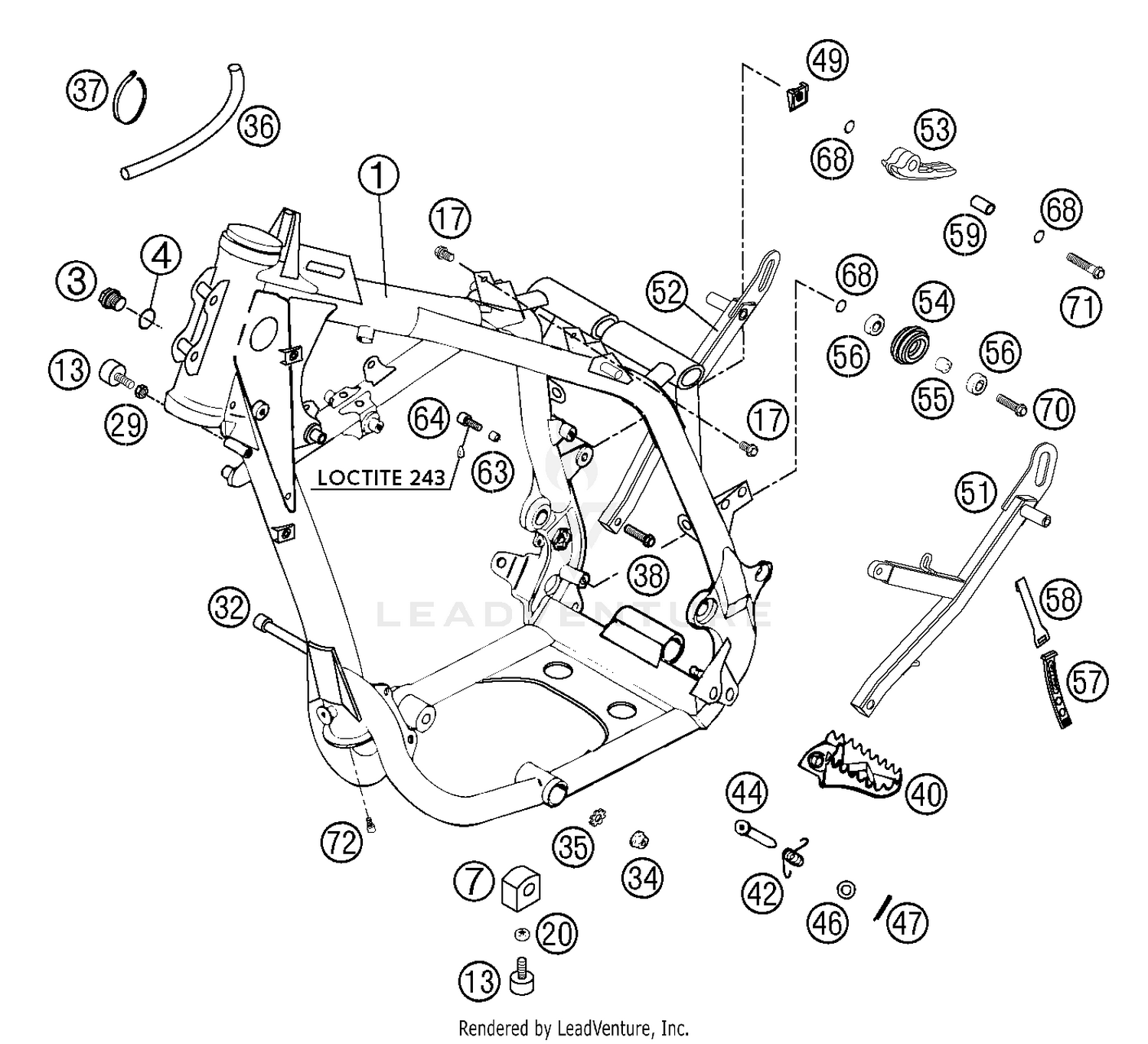

Frame, Sub Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME 660 RALLYE E-START'2001
58503001444/90
|
|||
|
Unavailable |
|||
|
#3
PLUG DIN0910-M16X1,5
0910160153
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
CU-SEAL RING 16X22X2
0603162220
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
ENGINE PROTECTOR BRACKET 2001
58503012000
|
|||
|
Unavailable |
|||
|
#13
STOP RUBBER M8
58303070000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
HH collar screw M5x12 TX30
0015050123
Superseded by 0025050126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Unavailable |
|||
|
#32
AH SCREW DIN0912-M10X160
0912101603
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#34
Collar nut M10-SW13 ZnNi
54630044000
Superseded by 55530044000
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
LOCK WASHER DIN6797-J10,5 ZI
0797100003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
FOOTREST L/S 08
59003040250
Superseded by 78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S 08
59003041250
Superseded by 78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN FOR FOOT PED 51.5X9.8 MM
54603044000
Superseded by 54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#46
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
RANGE CHANGE METAL NUT M8
54603048000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
TANK HOLDER DOWN L/S 04
58503002410
|
|||
|
Unavailable |
|||
|
#52
TANK HOLDER R/S 04
58503002430
|
|||
|
Unavailable |
|||
|
#53
CHAIN SLIDING PIECE 03
54804067000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#54
CHAIN ROLL D=35MM 125-380 '99
52303053100
|
$6.68 | ||
|
Available to order. Add to View Price |
|||
|
#55
BUSHING 8.2 X 12 X 6
74003021000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
GROOVED BALL BEAR. 608 2RS C3
0625006087
|
$25.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
RUBBER BAND
54611186000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#58
SIDE STAND RUBBER-RET.PANEL 01
58503023170
|
|||
|
Unavailable |
|||
|
#59
BUSHING 8,2X10X20
51103053051
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
BUSHING 7X12X15,4
54305069000
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
Unavailable |
|||
|
#68
LOCK WASHER 8MM
36003014000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
HH collar screw M8x35 TX40
0015080353
Superseded by 0025080356
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
HH COLLAR SCREW M 8X60 WS=10
0015080603
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
AH SCREW DIN7984-M 6X10
0984060103
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
