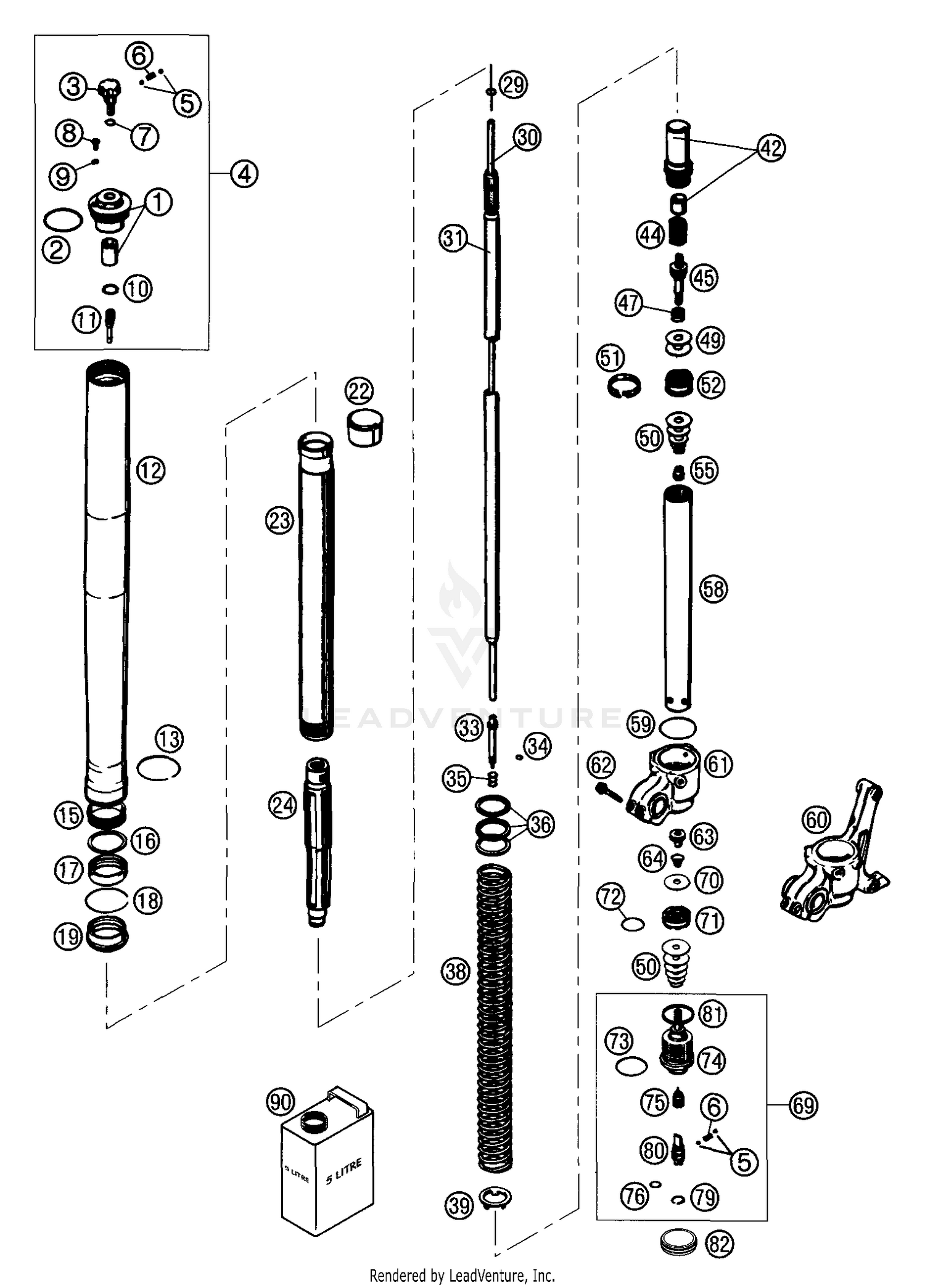

Fork Legs Usd 43 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SREW CAP+BUSH M51X1,5
48600020S
|
$47.06 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-ring 45x2 NBR70 siliconized
46810340
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
Adjuster rebound
48600018
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW CAP M51X1,5 CPL.
48600020S1
|
$118.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
Steel ball d3
40540603
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
Spring (1,7) l7,9
48600028
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-ring 6x1,5 NBR70
48600044
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Cross flat head screw M4x6
48600058
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 3,7x1,6 NBR70
48600009
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-ring 12x1,5 NBR70
48600043
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
Tube tap d4x25
48600019
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
OUTER TUBE L=577MM D=54/57MM
43570125
|
|||
|
Unavailable |
|||
|
#13
Round-wire snap ring 53x2
43570099
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
DU-BUSH 47 X 43 X 20
43570019
|
$91.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
Supportwasher 45x52,5x1,5
43570092
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
Shaft seal SKF 43x52,9x11,4 black
43570140
Superseded by 43570623
|
$19.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Snap ring SB53x1,5 acc drawing
43570008
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
Dirt scarper SKF 43mm black
43570094
Superseded by 43570624
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
Guide bushing 42x44x20
43570020
Superseded by 43570617
|
$13.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
INNER TUBE D=43MM L=585MM
43570145
|
|||
|
Unavailable |
|||
|
#24
HYDR.STOP L=200MM D=27,5 CPL
43570142S
|
$55.86 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING NBR 6,3X2,4
48600175
|
|||
|
Unavailable |
|||
|
#30
ADJUSTMENT TUBE L=512MM
48600014
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
ADJUSTMENT TUBE L=492MM
48600094
|
$18.09 | ||
|
Available to order. Add to View Price |
|||
|
#31
PISTONR. D=14MM L=546MM M11X1
48600023
|
$73.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PISTONR. D=14MM L=526MM M11X1 (640 LC4 SUPERMOTO)
48600093
|
|||
|
Unavailable |
|||
|
#33
REBOUND NEEDLE
48600150
|
|||
|
Unavailable |
|||
|
#34
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Spring (7,2) 4-23 needle
48600033
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
Preload bush 42x26,5x2,5
48600036
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Preload bush 26,5x42x5
48600037
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#36
Preload bush 26,5x42x10
48600038
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
Preload bush 26,5x42x1,5
48600053
|
$4.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
SPRING 3,6 N/MM SET D=4,6MM
95010010S
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,4 N/MM SET D=4,9MM
95010012S
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,0 N/MM SET D=4,75MM
95010002S
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 4,2 N/MM SET D=4,9MM
95010003S
|
$173.24 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING 5,0 N/MM SET D=5,0MM
95010022S
|
$135.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
Spring retainer 33,5x38,2x3
43570131
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW SLEEVE M29,3X1+BUSH
43570132S
|
$49.78 | ||
|
Available to order. Add to View Price |
|||
|
#44
REBOUND SPRING D=14,6MM L=75MM
48600178
|
$9.37 | ||
|
Available to order. Add to View Price |
|||
|
#44
REBOUND SPRING D=14,6MM L=22MM
48600015
|
$34.35 | ||
|
Available to order. Add to View Price |
|||
|
#45
TAB REBOUND
48600151
|
$22.19 | ||
|
Available to order. Add to View Price |
|||
|
#47
Spring (11,7) 1,5-8 valve
35480377
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#49
CHECK VALVE 8X24X0,1
48600062
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x12x0,10
40540400
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x14x0,10
40540401
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x16x0,10
40540402
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x18x0,10
40540403
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x12x0,15
40540404
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x14x0,15
40540405
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x18x0,20
40540411
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x16x0,25
40540414
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x10x0,30
40540447
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
SHIM 6X11X0,25
40541417
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x24x0,10
48600063
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x22x0,10
48600064
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#50
Shim 6x20x0,10
48600065
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x24x0,10 delta
48600116
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Shim 6x22x0,1 delta
48600139
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#51
Pistonring 26x28x5
48600060
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
Piston 6,05x27,65x12 rebound
48600042
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#55
Nut M6x0,5 h6,5 WAF10 rebound
40540486
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#58
TUBE 29,3X1X390 D=8,5MM
48600081
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
TUBE 29,3X1X385 ALU
48600140
|
$99.39 | ||
|
Available to order. Add to View Price |
|||
|
#59
O-ring 41x2 NBR70 siliconized yellow
43570023
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#60
AXLE CLAMP L/S 260MM M8 2000
43570124
|
$408.69 | ||
|
Available to order. Add to View Price |
|||
|
#61
AXLE CLAMP RIGHT M8 2000
43570123
|
$195.23 | ||
|
Available to order. Add to View Price |
|||
|
#62
HH collar screw M8x30
50600061
Superseded by 0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
CHECK VALVE NUT M6X0,5
40541241
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#64
Spring (8,5) l6,5 valve
40541278
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
|
#69
TAP COMPRESSION CPL.
486001525
|
|||
|
Unavailable |
|||
|
#70
Shim 8x24x0,40
48600061
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#71
Piston 6x27,8x9 compression
48600047
|
$11.54 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#72
O-ring 21x2 NBR70
46811499
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#73
O-ring 24x2 NBR70
35480320
|
$1.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#74
Compression
48600152
Superseded by 48600586S3
|
$44.32 | ||
|
Available to order. Add to View Price |
|||
|
#75
NEEDLE COMPRESSION M10X1
48600153
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#76
O-ring 8x2 NBR70
48600049
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#79
Round-wire snap ring 12x1 DIN7993 A2
48600051
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#80
Adjustment screw slot compression
48600034
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#81
Copper disc 29,5x33,5x1
48600004
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#82
Rubber cap 35x10 NBR80
48600141
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#90
FORKOIL REZ 71 SAE 5
40540882
|
|||
|
Unavailable |
|||
