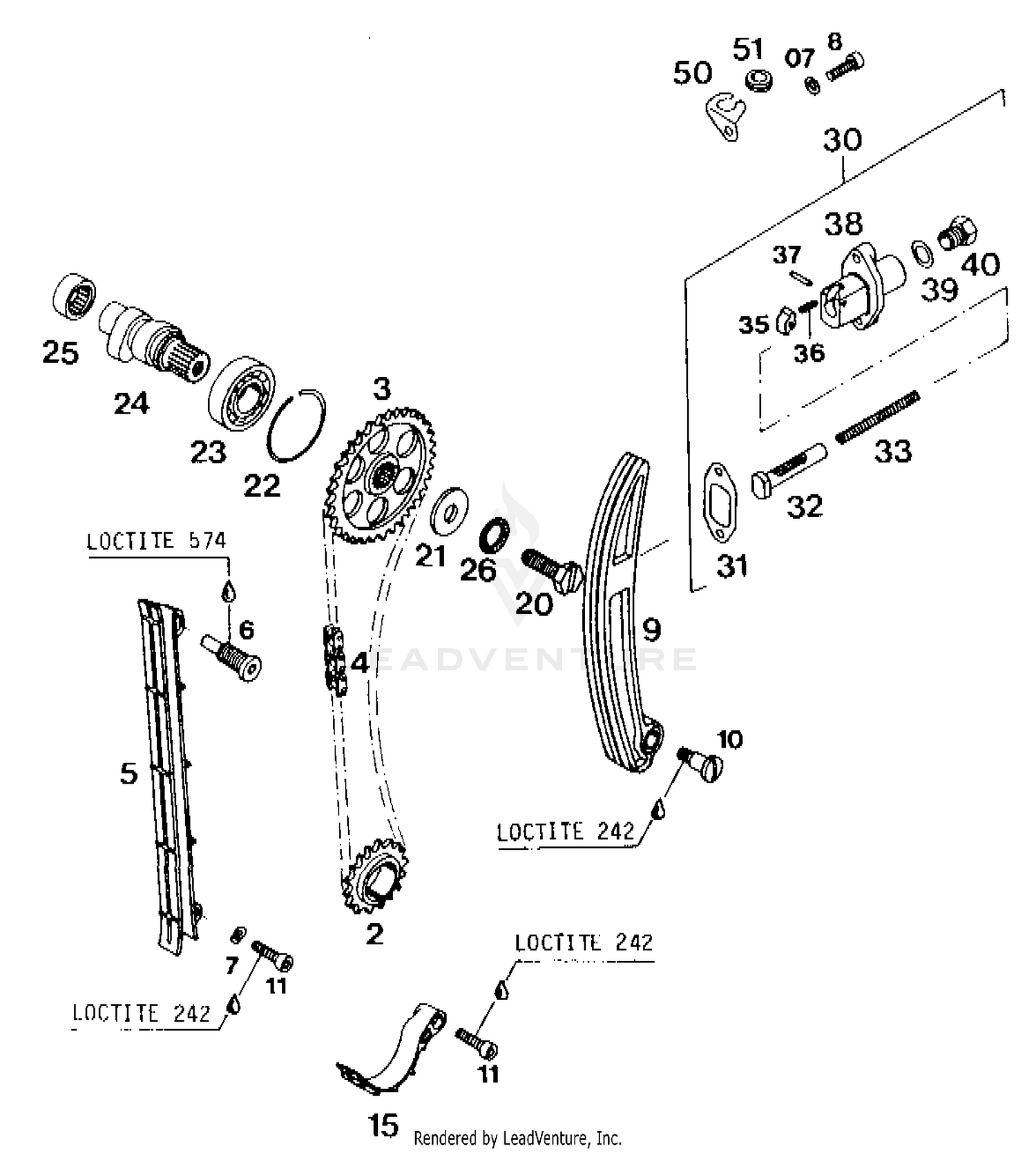

Timing Drive Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
TIMING GEAR 17-T
58036014000
|
$67.64 | ||
|
Available to order. Add to View Price |
|||
|
#3
TIMING SPROCKET 350-400 LC4
58036011000
|
|||
|
Unavailable |
|||
|
#3
CAMSHAFT GEAR 34-T ''01'' '94
58336011001
|
$88.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIMING CHAIN 350/400 LC4
57536013000
|
|||
|
Unavailable |
|||
|
#4
TIMING CHAIN C107C / 100 LINKS
58036013000
|
$351.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
TIMING CHAIN GUIDE
57536001000
|
$17.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
TIMING CHAIN GUIDE
58036001000
|
$16.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN GUIDE SCREW
58036009000
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL RING
58036065000
|
|||
|
Unavailable |
|||
|
#7
SPRING WASHER
0137060000
|
|||
|
Unavailable |
|||
|
#8
AH SCREW DIN0912-M 6X20
0912060203
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
TIMING CHAIN TENSIONER
57536002000
|
$49.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIMING CHAIN TENSIONER
58036002000
|
$42.97 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLAT HEAD SCR. M 8X12
0923080120
|
$5.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
AH SCREW DIN0912-M 6X20 SS
0912060208
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SECURING GUIDE
58336018000
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
H H SCREW M10x30 10.9
58036112500
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
STEEL WASHER 10 X 28 X 3
58036012000
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP SB 42
58036096000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROOVED BALL BEARING TMB004
0625060040
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAM SHAFT 995 350/400 LC4
57536010000
|
$202.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAM SHAFT 600/612/620
58036010000
|
|||
|
Unavailable |
|||
|
#25
NEEDLE BEARING BK 2012
58036097000
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOCKING WASHER 10MM
36003014200
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#30
AUTOM.TENSIONER CPL. '88
58036003144
|
$351.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
TENSIONER GASKET 1,5 MM
58036005100
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PRESSURE BOLT
58036004100
|
$33.79 | ||
|
Available to order. Add to View Price |
|||
|
#33
PRESSURE SPRING 0,9MM
58036006100
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#35
RATCHETING PAWL
58036007100
|
$29.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
PRES.SPRING F.RATCHETING PAWL
58036007050
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#37
NEEDLE ROL.DIN5402 NRB 3X17,8
0402031780
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
TENSIONER CASE
58036003100
|
|||
|
Unavailable |
|||
|
#39
CU-SEAL RING DIN7603-12X18X1,5
58038022000
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PLUG M12X1,5
58036008100
|
$6.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
RETAINING PLATE
58038339000
|
|||
|
Unavailable |
|||
|
#51
RUBBER SLEEVE
31011027000
|
|||
|
Unavailable |
|||
