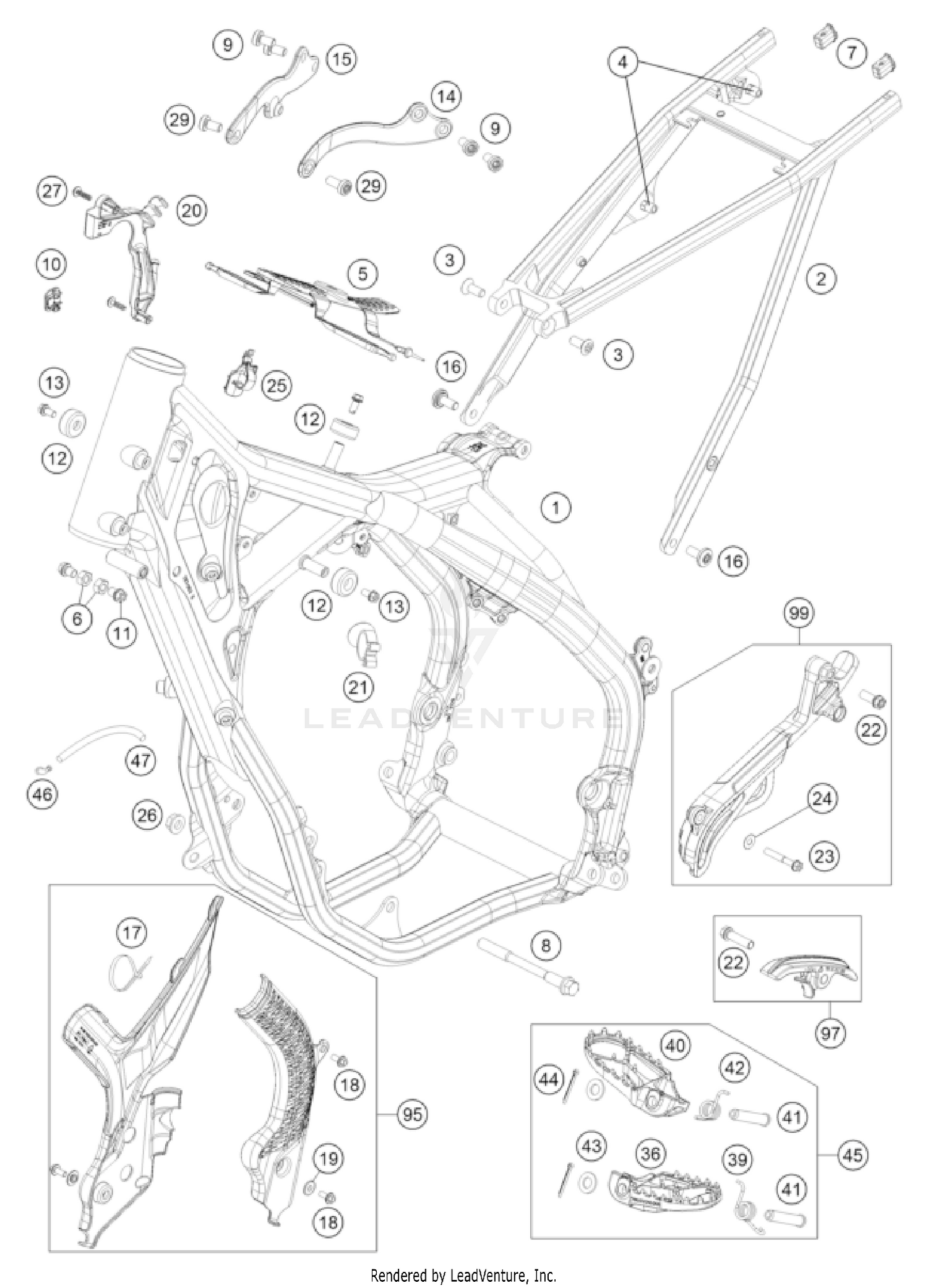

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Frame 557T2
55703101000EB
|
$2,561.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
Subframe
79103002100
|
$355.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BLIND RIVET INT.THREAD M6
55003139800
|
|||
|
Unavailable |
|||
|
#5
TANK REST RUBBER
79607012000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Rear frame bit
79103002010
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
engine brac.scr. M10x115
77203014000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
AH-COLLAR SCREW M8X15 TORX45
0035080156S
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Cover control head sheet
79111013010
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
TANK ROLLER 12X26X12 '98
50307014000
|
$12.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HH collar screw M6x12 TX30
0026060136
Superseded by 0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
Engine brace, left 250/300 TPI
5570301300001S
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
Engine brace, right 250/300 TPI
5570301400001S
|
$58.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPECIAL SCREW M8X18 TORX45 SS
79003003000
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
KABELBAND 140/3,5 MM SCHWARZ
44011176140
|
$0.99 | ||
|
Unavailable |
|||
|
#18
HH collar screw M5x10 TX30
0025050106
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH F. FRAME PROTECTION 03
54803092060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cable holder throttle cable guide
79711013000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#21
Cable bracket d8
79711013010
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HH collar screw M6x40 TX30
0025060406
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER DIN0125-A 6,4
0125060003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
wire holder / fuel ventilation
79107013010
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
SCREW FOR PLASTIC K50X18 T20
0081050181
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SHCS M8x20 TX45
0035080206S
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#36
FOOTREST L/S EXC 2017
79603040000
|
$52.68 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOOTREST SPRING L/S 2016
79003045000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S EXC 2017
79603041000
|
$52.68 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING R/S 2016
79003044000
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST-SET
79603040033
|
$132.98 | ||
|
Available to order. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
preformed hose 6x10 ECO
50430087000
|
|||
|
Unavailable |
|||
|
#95
Frame protection set
79103094100EB
|
$34.31 | ||
|
Available to order. Add to View Price |
|||
|
#97
CHAIN SLIDING KIT BELOW CPL.16
79003053010
|
$21.00 | ||
|
Available to order. Add to View Price |
|||
|
#99
SPROCKET COVER KIT
55403096010
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
