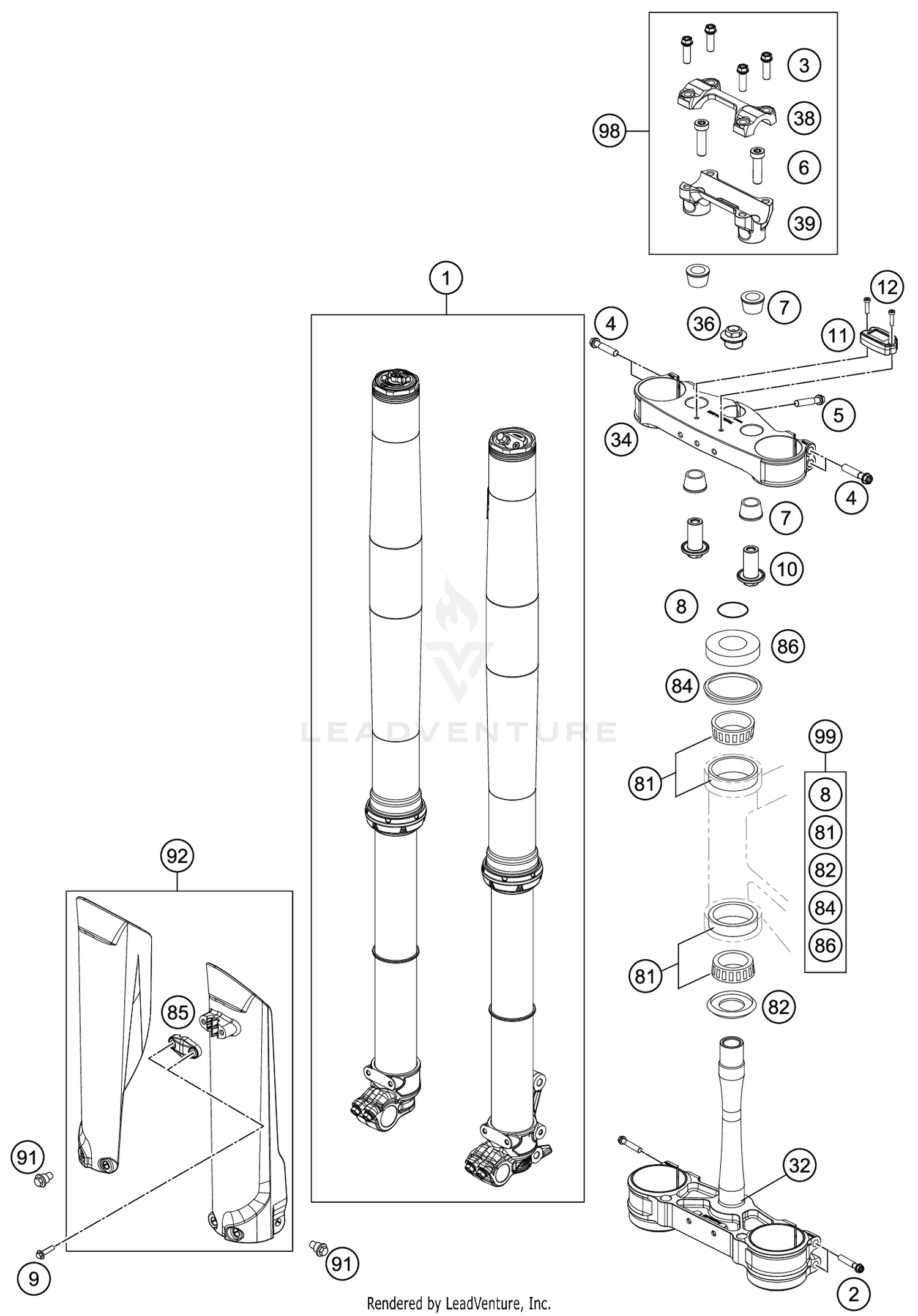

Front Fork, Triple Clamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Fork 250/300 XC 2020
34188T7301
|
$2,814.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
HH collar screw M8x50 TX40
0025080506
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x25
0025080256
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HH COLLAR SCREW M8X40 TX40
0025080406
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
HH COLLAR SCREW M8X25 WS=10
0015080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
AH-COLLAR SCREW M10X35 ISA45
0032100356S
|
$4.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RUBBER BUSH
83001040000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING 25X3,55 NBR70 05
0770025035
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW F. PLASTIC K60X20AL SW6
0017060206
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
HANDLEBAR SUPPORT LOWER PART
79001037034
|
$71.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hourmeter
78112020050
Superseded by 78112920100
|
$65.99 | ||
|
Unavailable |
|||
|
#12
AH SCREW DIN0912-M 4X16
0912040163
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
LOWER TRIPLE CLAMP CPL. 16
7900103202230
|
$494.66 | ||
|
Available to order. Add to View Price |
|||
|
#34
Top triple clamp X=22 mm 2019
7910103402230
|
$263.22 | ||
|
Available to order. Add to View Price |
|||
|
#36
AXLESCREW M20X1.5 SW17
70009082000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#38
HANDLEBAR CLAMP 28MM
79001038000
|
$81.61 | ||
|
Available to order. Add to View Price |
|||
|
#39
HANDLEBAR SUPPORT D28MM-H36MM
79001139036
|
$108.12 | ||
|
Unavailable |
|||
|
#81
TAPERED ROLLER BEARING CPL. 06
54201081100
|
$60.05 | ||
|
Available to order. Add to View Price |
|||
|
#82
O-RING SUPPORT W. SEALING LIP
77701084000
|
$22.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#84
STEARING HEAD GASKET TOP
54601184000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#85
Clamp for brake hose
77701085100AB
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#86
STEERING HEAD COVER
78101086000
|
$7.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#91
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92
Fork Protector kit SX/XC 2020
77701094100ABA
|
$80.73 | ||
|
Available to order. Add to View Price |
|||
|
#98
Handlebar Mount Kit
00050000932
|
$174.34 | ||
|
Available to order. Add to View Price |
|||
|
#99
Stearing Head repair kit
00050000930
Superseded by 54201081144
|
$104.71 | ||
|
Available to order. Add to View Price |
|||
