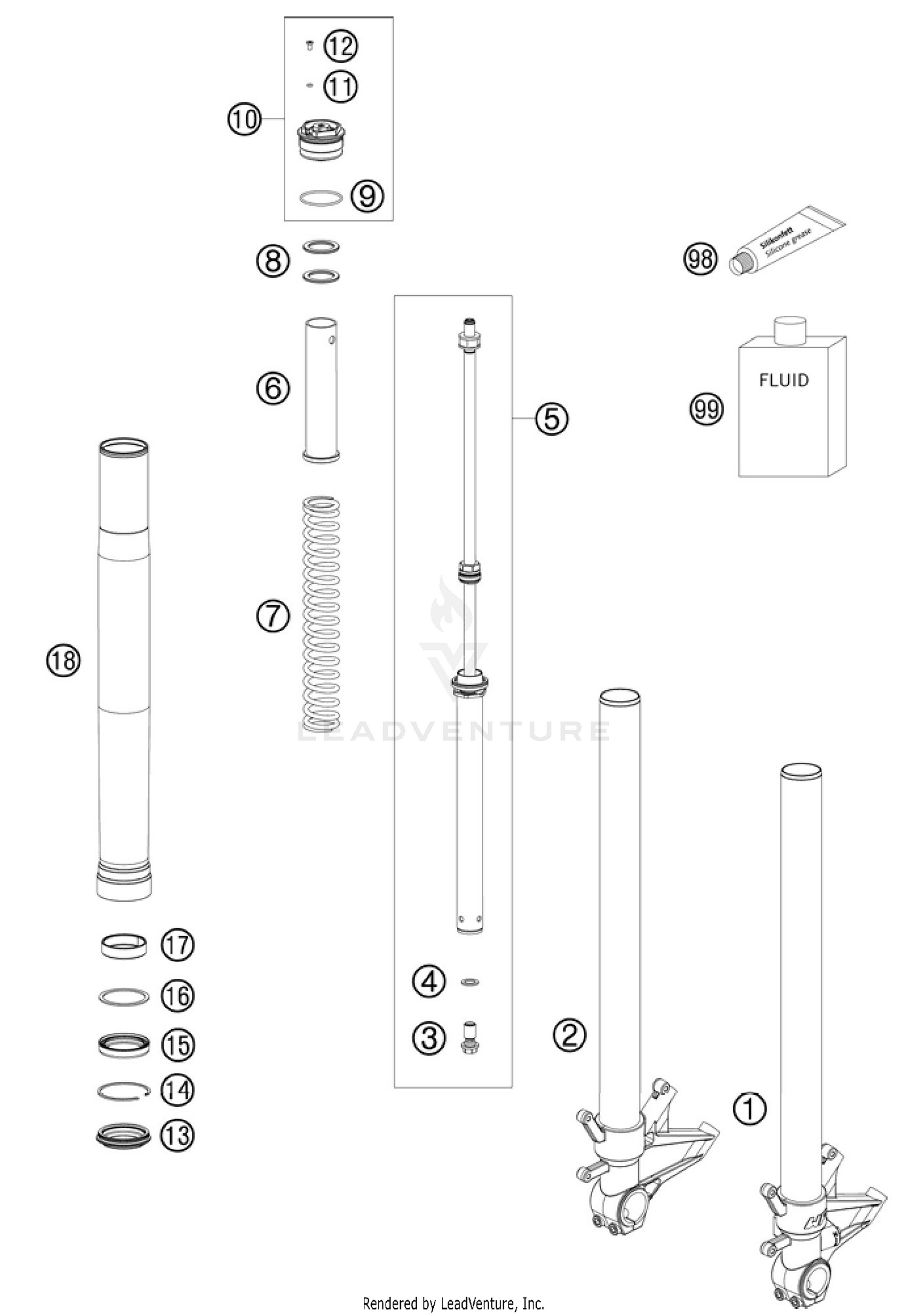

Front Fork, Disassembled Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE-CLAMP L/S CPL. W. TUBE
43570457S1
|
$633.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE-CLAMP R/S CPL. W. TUBE
43570456S1
|
$633.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M12x1x23
48600176
|
$24.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEALING RING COPPER 12X18X1,5
48600704
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
CARTRIDGE CPL. RC8
43570453S
|
|||
|
Unavailable |
|||
|
#6
ALU SPACER D32XD28X145 CPL.
43570445S
|
|||
|
Unavailable |
|||
|
#7
SPRING LINEAR SET D=4,9
95010034S
|
$184.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
Mainspring (38,2) 100-250 fork
95010035S
Superseded by 95010083
|
$163.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
Preload bush 26,5x38x2,5
43570133
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
Preload bush 26x35x4
43570134
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
Preload bush 26x38x10
43570135
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
Preload bush 26,5x38x1,5
43570136
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-ring 41x2 NBR70 siliconized yellow
43570023
|
$15.94 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW CAP M46X1 PA CPL.
43570447S
Superseded by 43570447SA
|
$156.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-ring 3x1,5 NBR70
48600046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Cross countersunk head screw M4x8
48600481
|
$2.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Dirt scarper SKF 43mm black
43570202
Superseded by 43570624
|
$19.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
Snap ring SB53x1,5 acc drawing
43570008
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
Shaft seal SKF 43x52,9x11,4 black
43570201
Superseded by 43570623
|
$19.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
Supportwasher 45x52,5x1,5
43570092
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
Guide bushing 42x44x20
43570204
Superseded by 43570618
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#18
OUTER TUBE RC8 R
43570454S
Superseded by 43570608S
|
$618.30 | ||
|
Available to order. Add to View Price |
|||
|
#98
Fuchs grease IPR (250g)
T511
Superseded by T14034
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#99
Fork Fluid Viscosity 4.0 5L
48600765S1
Superseded by 48601166S1
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
