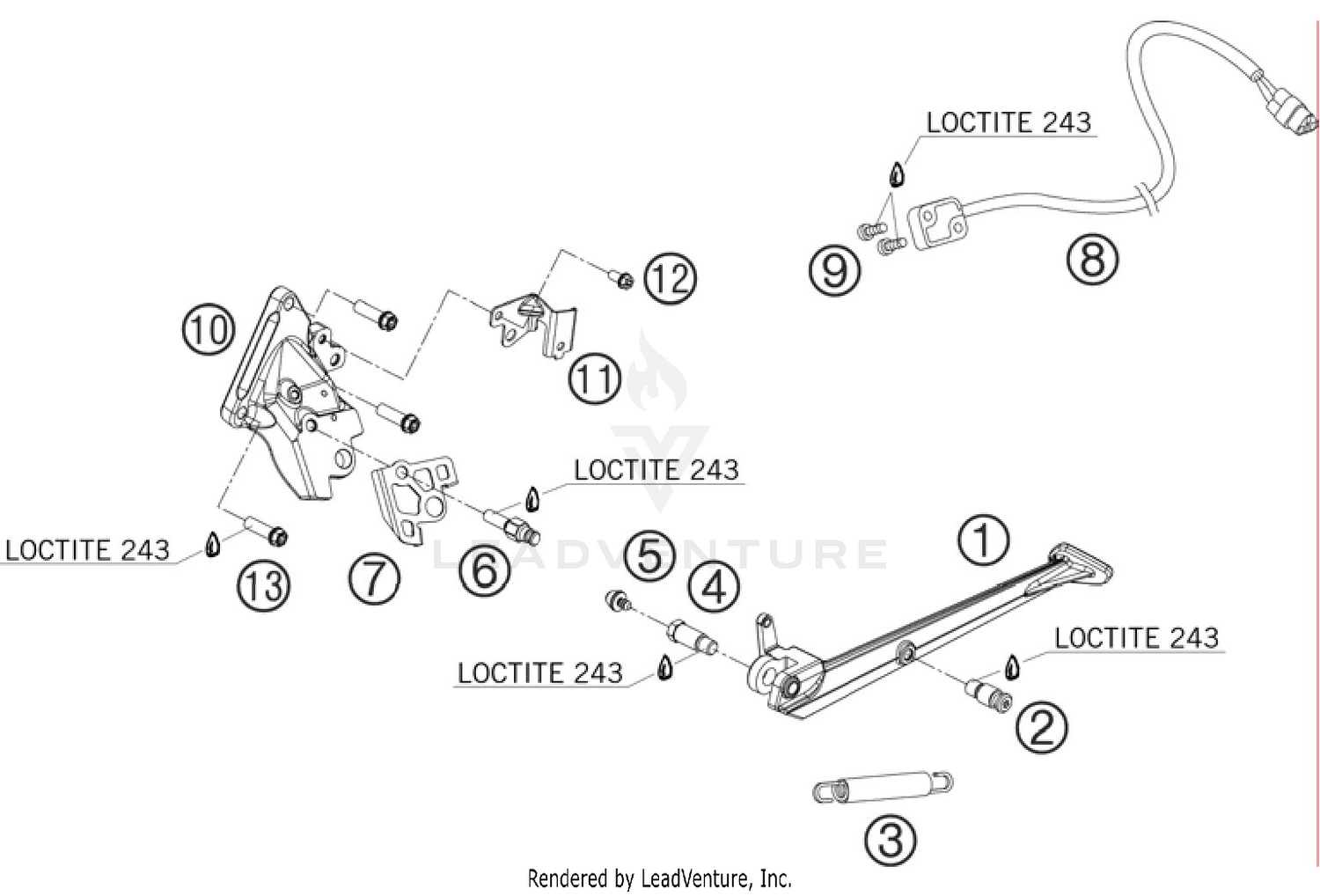

Side/center Stand Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SIDE STAND CPL. BLACK 10
6900302303333S
Superseded by 6900302313333S
|
$167.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
RETAINING BOLT
75603023011
Superseded by 60303023111
|
$15.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING L=116 MM 05
61003024000
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW F. SIDE STAND M10
69003027050
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISTANCE RUBBER D=14X10,5
69003027060
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SIDE STAND SPRING 05
61003028001
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
CONSOLE INTERMEDIATE METAL
69003027000
|
$38.93 | ||
|
Available to order. Add to View Price |
|||
|
#8
SIDE STAND SENSOR 05
61011045000
|
$70.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYL.HEAD SCREW DIN84A M4x12
0084040123
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SIDE STAND CONSOLE RC8R 2010
6900302600033S
Superseded by 6900302610033S
|
$166.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEEL RETAINING BRACKET
69003029000
Superseded by 69003029100
|
$18.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH collar screw M6x12 TX30
0025060126
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
HH COLLAR SCREW M8X25 TX40
0025080256S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
