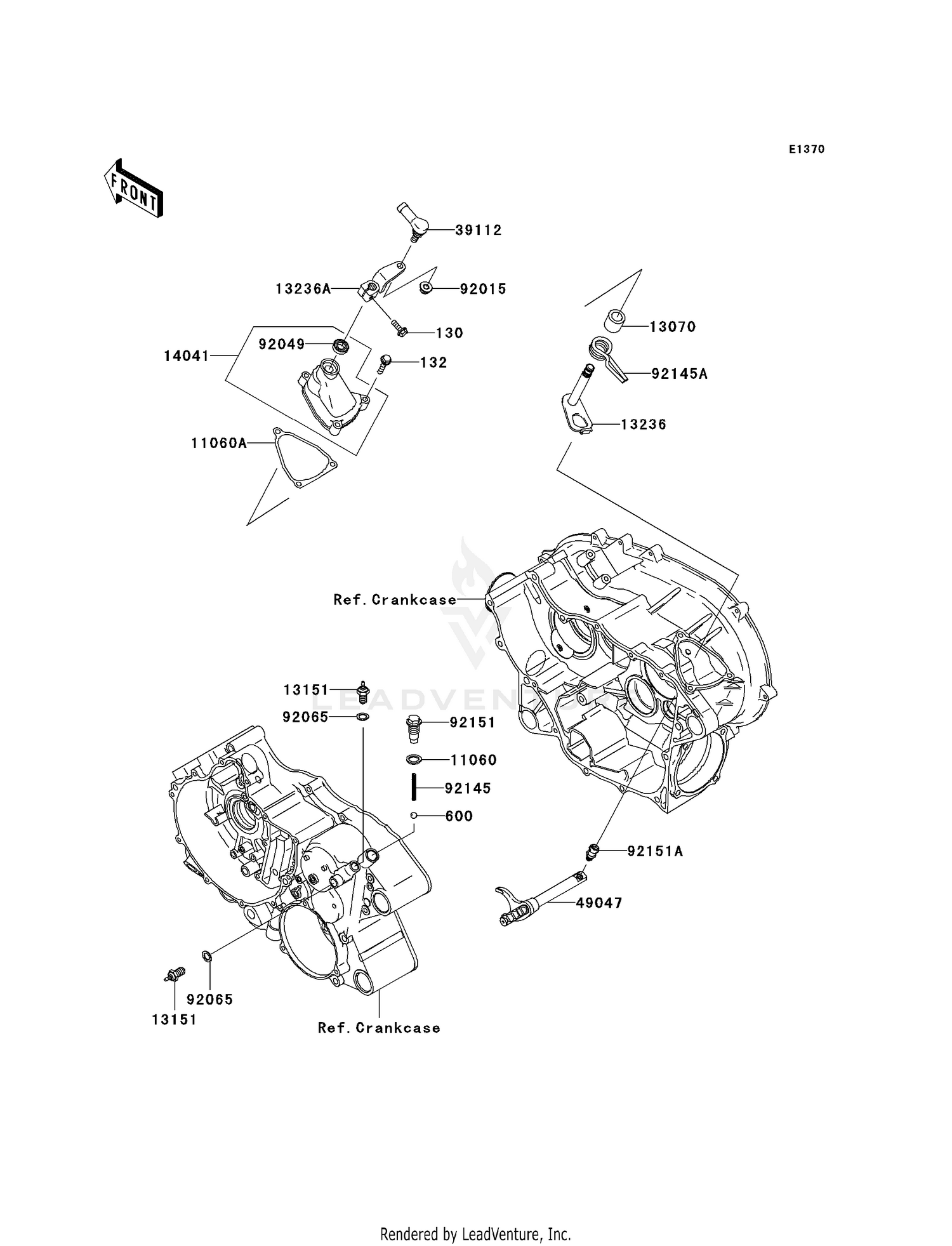

Gear Change Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X20
130CD0620
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X30
132BD0630
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,5/16
600A1000
|
$0.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11060
GASKET,14X20X2
11060-1287
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,CHANGE LEVER COVER
11060-1956
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE
13070-1352
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#13151
SWITCH-COMP,NEUTRAL
13151-1080
|
$10.61 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,CHANGE
13236-0051
|
$26.37 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,CHANGE LEV
13236-1400
|
$25.74 | ||
|
Available to order. Add to View Price |
|||
|
#14041
COVER-COMP,CHANGE LEVER
14041-1136
|
$40.44 | ||
|
Available to order. Add to View Price |
|||
|
#39112
RODEND-TIE,CHANGE LEVER
39112-1080
Superseded by 39112-0018
|
$72.56 | ||
|
Available to order. Add to View Price |
|||
|
#49047
ROD-SHIFT
49047-1104
|
$112.60 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1432
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TB12205.5
92049-1271
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92145
SPRING,CHANGE POSITION
92145-1297
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,CHANGE LEVER
92145-1299
|
$21.88 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,CHANGE POSITION
92151-1687
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,SHIFT ROD
92151-1699
|
$18.69 | ||
|
Available to order. Add to View Price |
|||
