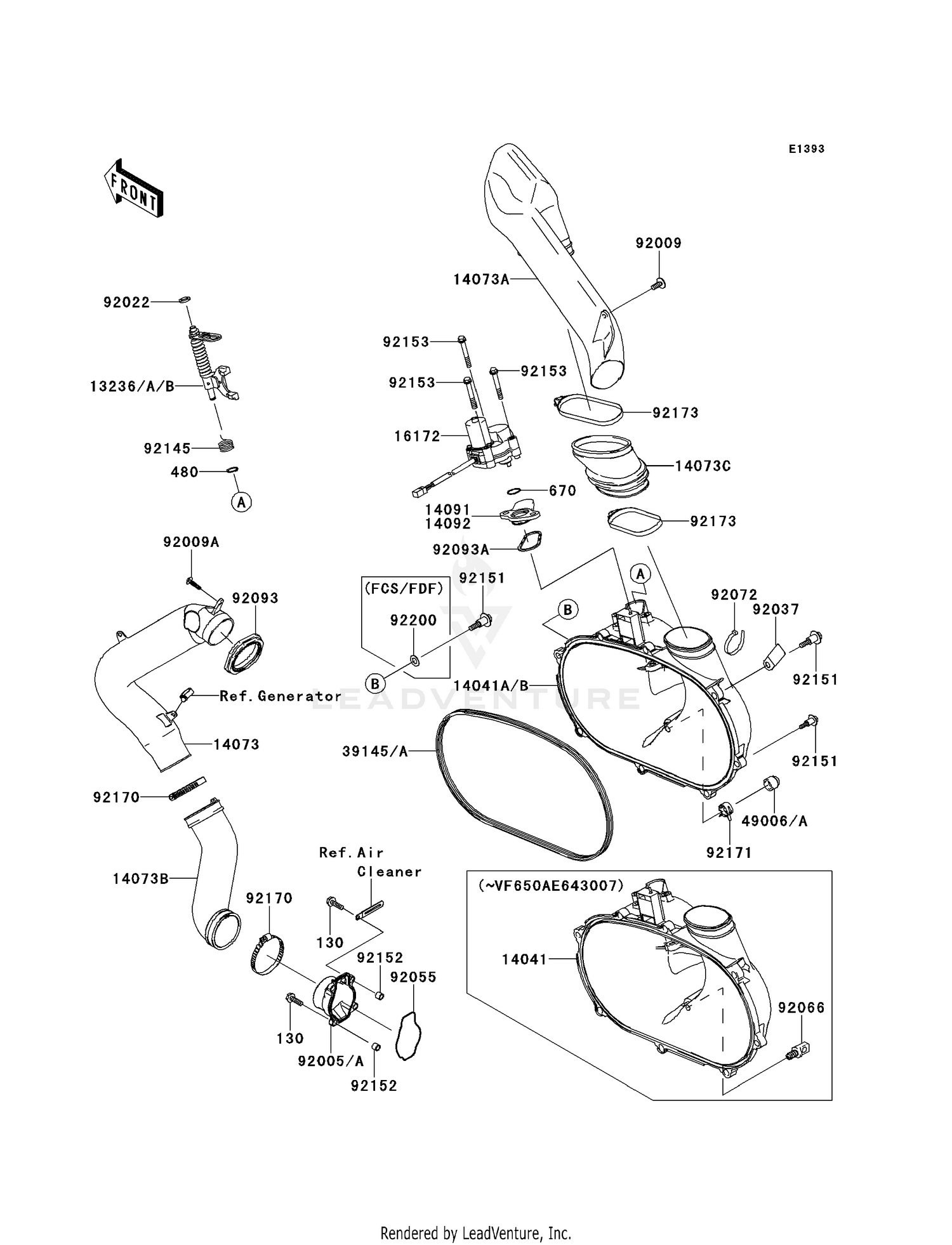

Converter Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13236
LEVER-COMP,YELLOW
13236-0046
|
$134.44 | ||
|
Available to order. Add to View Price |
|||
|
#13236A
LEVER-COMP,GREEN
13236-0047
|
$134.44 | ||
|
Available to order. Add to View Price |
|||
|
#13236B
LEVER-COMP,PAINT LESS
13236-0048
|
$134.44 | ||
|
Available to order. Add to View Price |
|||
|
#14041A
COVER-COMP
14041-0052
Superseded by 14041-5081
|
$215.46 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,INTAKE
14073-0025
|
$23.83 | ||
|
Available to order. Add to View Price |
|||
|
#14073A
DUCT
14073-0026
|
$31.19 | ||
|
Available to order. Add to View Price |
|||
|
#14073B
DUCT,INTAKE JOINT
14073-0027
|
$22.68 | ||
|
Available to order. Add to View Price |
|||
|
#14073C
DUCT,EXHAUST JOINT
14073-0028
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER
14091-1421
Superseded by 14092-0780
|
$13.70 | ||
|
Available to order. Add to View Price |
|||
|
#16172
ACTUATOR
16172-0018
|
$430.60 | ||
|
Available to order. Add to View Price |
|||
|
#39145A
TRIM-SEAL
39145-1135
Superseded by 39145-0702
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,DRAIN
49006-3718
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1387
Superseded by 92005-0718
|
$12.52 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1694
|
$4.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,5X20
92009-1993
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X16X1
92022-1829
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1780
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1630
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=188
92072-1239
|
$1.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92093
SEAL
92093-0016
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL
92093-1548
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-1567
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X30
92151-1686
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1332
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X47
92153-0678
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1764
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X20
130CD0620
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,10MM
480J1000
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING
670D3022
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0329
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0260
|
$13.51 | ||
|
Available to order. Add to View Price |
|||
