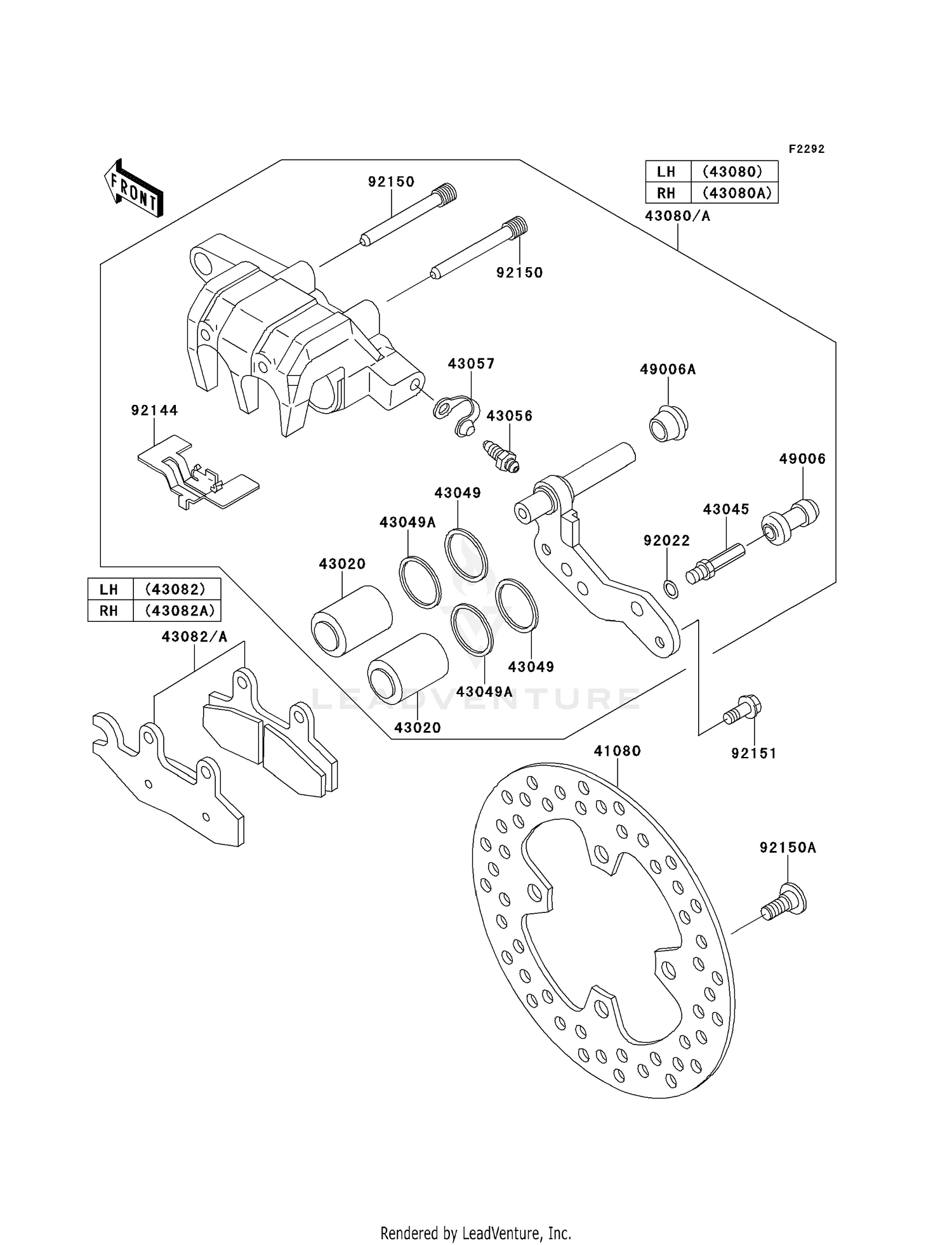

Front Brake (fbf) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41080
DISC,FR
41080-1513
Superseded by 41080-0585
|
$199.21 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1101
|
$54.04 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-1010
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-1063
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING
43049-1064
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1055
Superseded by 43056-1056
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,FR,L
43080-0019-DJ
|
$426.93 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,FR,R
43080-0020-DJ
|
$426.93 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE,FR,LH
43082-0022
|
$71.63 | ||
|
Available to order. Add to View Price |
|||
|
#43082A
PAD-ASSY-BRAKE,FR,RH
43082-0023
|
$71.63 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1088
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1242
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,WAVE
92022-1373
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PAD
92144-1319
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1144
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1800
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,8X19
92151-1793
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
