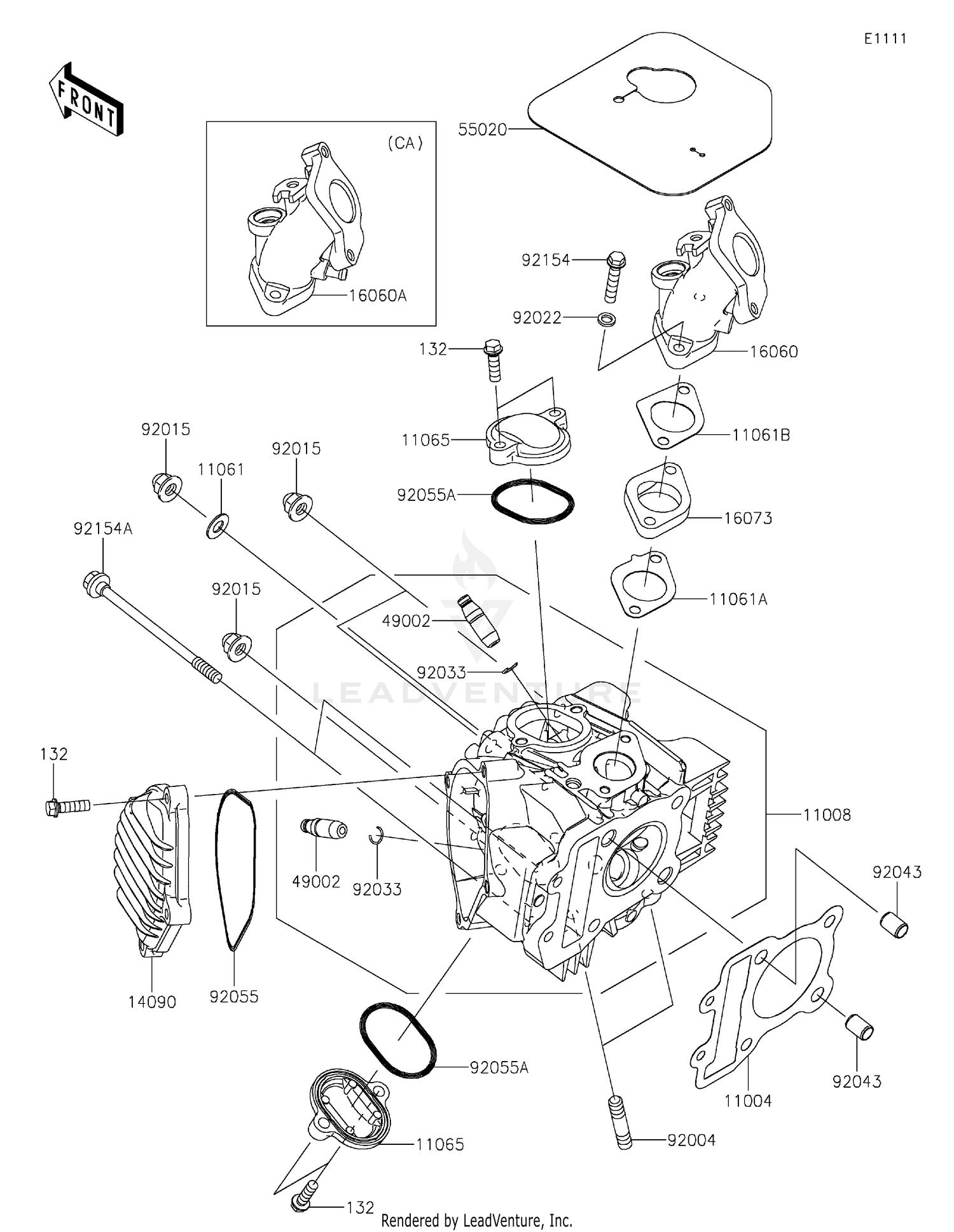

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11004
GASKET-HEAD
11004-0009
|
$25.88 | ||
|
Available to order. Add to View Price |
|||
|
#11008
HEAD-COMP-CYLINDER
11008-0868
|
$722.79 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET
11061-0850
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,HEAD SIDE
11061-0992
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,PIPE-INTAKE SIDE
11061-0993
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,VALVE ADJUSTING
11065-0919
|
$23.84 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,CAMSHAFT
14090-1845
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#16060
PIPE-INTAKE
16060-0040
|
$110.52 | ||
|
Available to order. Add to View Price |
|||
|
#16060
PIPE-INTAKE
16060-0040
|
$110.52 | ||
|
Unavailable |
|||
|
#16060A
PIPE-INTAKE
16060-0041
|
$110.52 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-0858
|
$19.54 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-0033
|
$25.07 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,THROTTLE-ASSY
55020-1958
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X28.5
92004-1284
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,8MM
92015-1151
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.3X10.2X1.6
92022-1588
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1247
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8.2X10X14
92043-1264
|
$0.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92055
RING-O,91X2.5
92055-1651
|
$15.27 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,ADJUST CAP
92055-1655
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X30
92154-1830
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,6X106
92154-2693
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132BA0620
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
