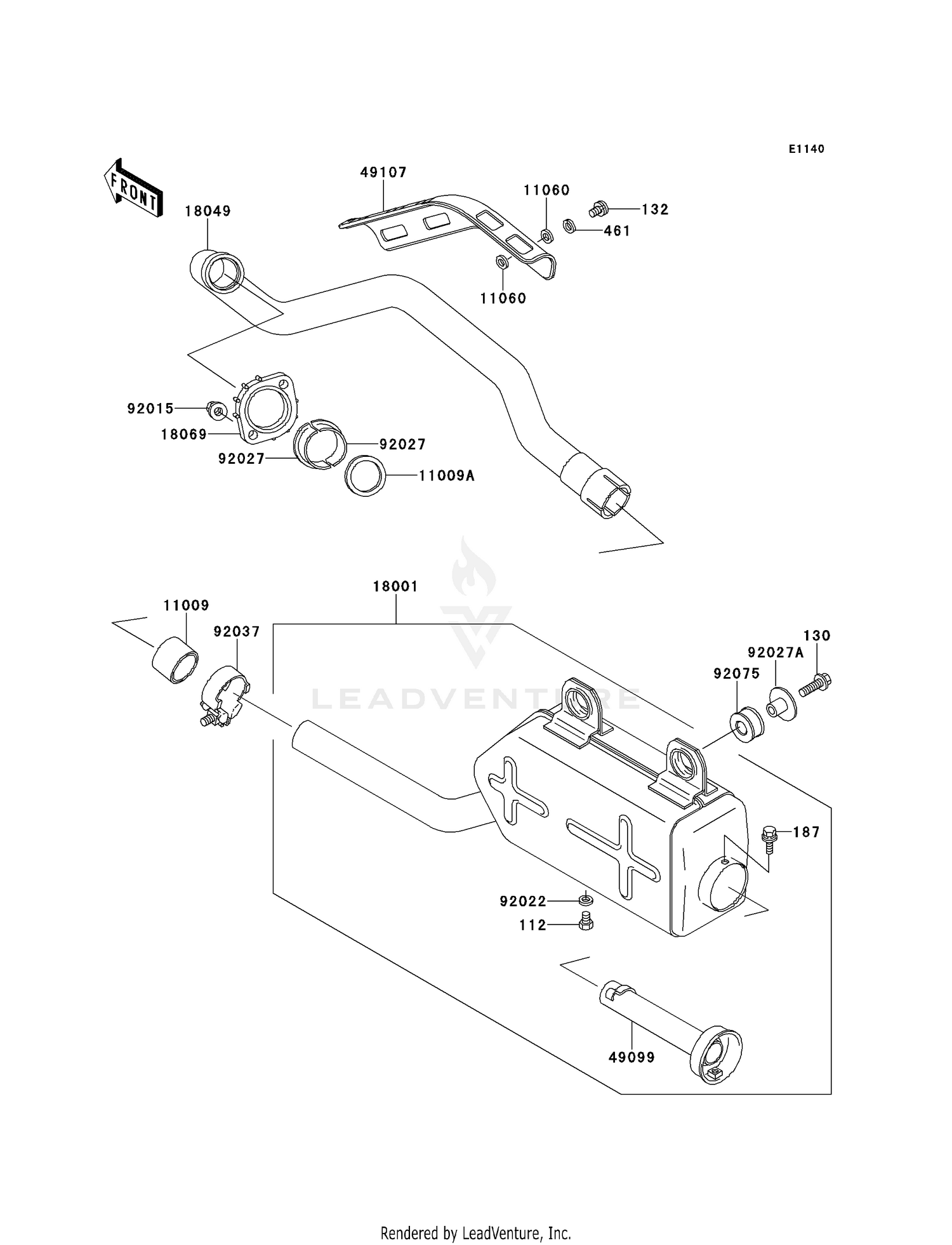

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#112
BOLT-UPSET
112B0608
Superseded by 112AA0608
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X30
130J0830
Superseded by 130BB0830
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X10
132J0610
Superseded by 132BB0610
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP,6X12
187B0612
Superseded by 187AA0612
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461K0600
Superseded by 461DB0600
|
$0.71 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE C
11009-1718
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,EXHAUST PIPE HOLDER
11009-1866
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,6.2X11.5X1.5
11060-1109
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#18001
MUFFLER
18001-1667
|
$377.85 | ||
|
Available to order. Add to View Price |
|||
|
#18049
PIPE-EXHAUST
18049-1415
|
$112.68 | ||
|
Available to order. Add to View Price |
|||
|
#18069
HOLDER,EXHAUST PIPE
18069-1078
Superseded by 18069-1006
|
$27.76 | ||
|
Available to order. Add to View Price |
|||
|
#49099
BAFFLE-PIPE MUFFLER
49099-1249
|
$107.45 | ||
|
Available to order. Add to View Price |
|||
|
#49107
COVER-EXHAUST PIPE
49107-1074
|
$37.82 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1365
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,EXHAUST PIPE
92027-1142
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,MUFFLER
92027-1981
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1956
|
$21.12 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,MUFFLER
92075-1809
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
