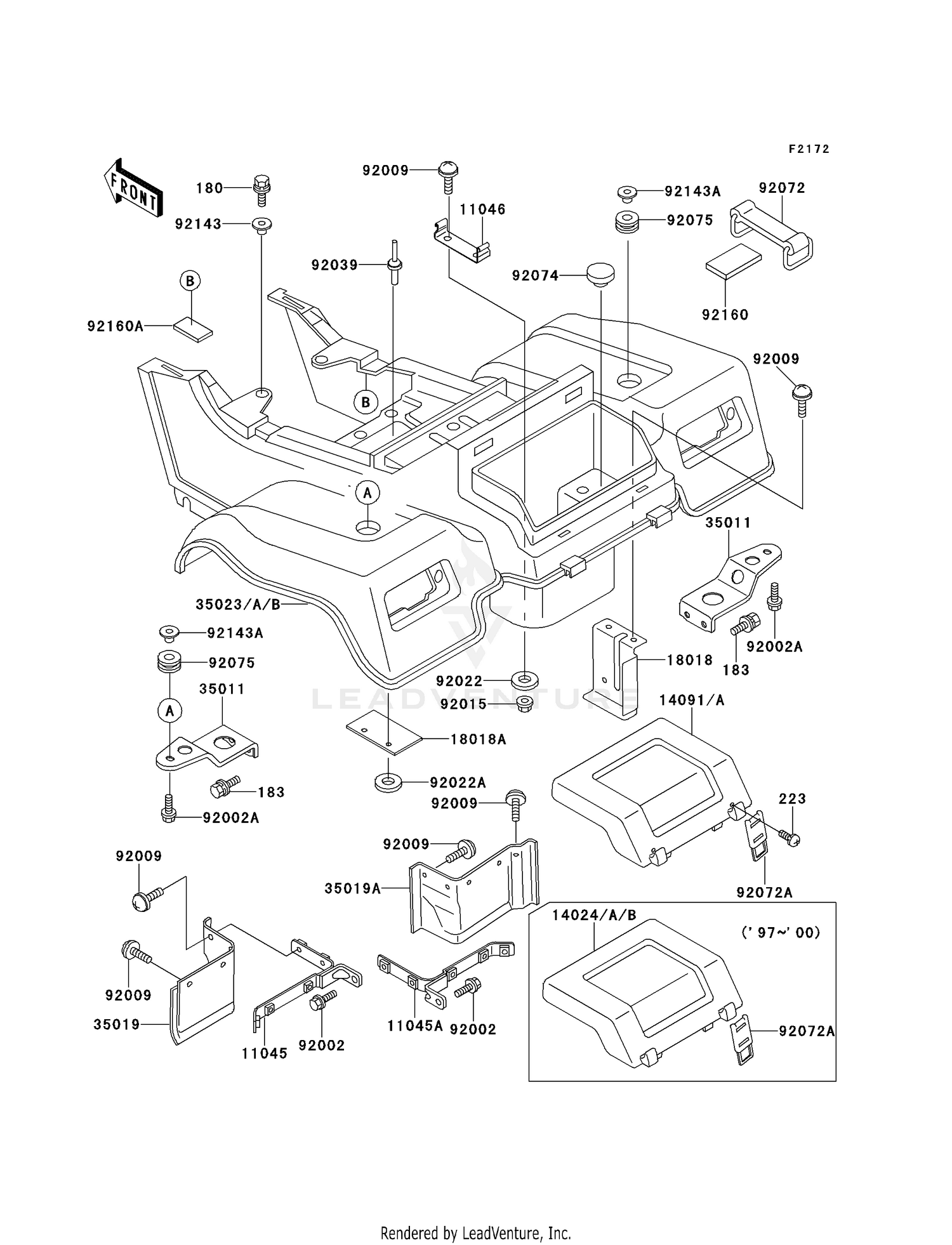

Rear Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#180
BOLT-UPSET-WS
180D0618
Superseded by 180AA0618
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183J0814
Superseded by 183BB0814
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,REAR FLAP,LH
11045-1731
|
$28.91 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,REAR FLAP,RH
11045-1732
|
$28.91 | ||
|
Available to order. Add to View Price |
|||
|
#11046
BRACKET,TOOL BAND
11046-1451
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,REAR FENDER,F.GREEN
14024-1477-59
|
$27.27 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,RR FENDER,F RED
14024-1477-6L
|
$35.06 | ||
|
Available to order. Add to View Price |
|||
|
#18018
PLATE-HEAT GUARD
18018-1075
|
$27.37 | ||
|
Available to order. Add to View Price |
|||
|
#18018A
PLATE-HEAT GUARD
18018-1079
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,REAR FENDER
35011-1363
|
$29.17 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,RR,LH
35019-1253
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,RR,RH
35019-1254
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#35023
FENDER-REAR,F.GREEN
35023-1196-59
Superseded by 35023-1594-59
|
$145.20 | ||
|
Available to order. Add to View Price |
|||
|
#35023B
FENDER-REAR,F.RED
35023-1196-6L
Superseded by 35023-1594-6L
|
$148.87 | ||
|
Unavailable |
|||
|
#92002
BOLT,6X14
92002-1351
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X25
92002-1591
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-1804
Superseded by 92200-0283
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-4017
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-4006
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,RESERVE TANK
92072-1085
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND
92072-1227
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#92074
RUBBER PLUG
92074-038
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1898
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=6.5
92143-1025
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,FLANGED,8.8X10.6
92143-1069
Superseded by 92027-1653
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER-TOOL KIT
92160-1076
|
$8.47 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER
92160-1102
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
