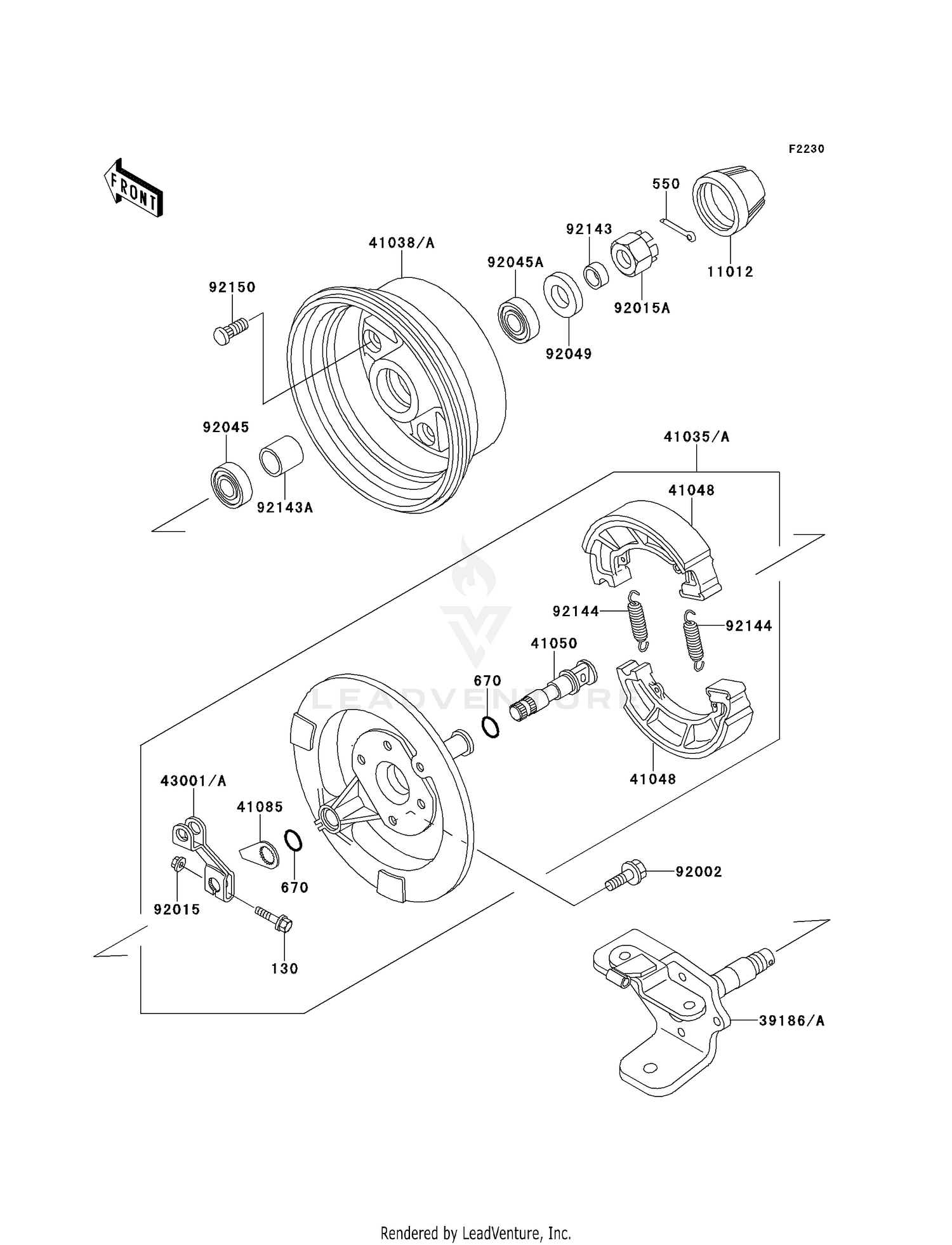

Front Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X35
130H0635
Superseded by 130BA0635
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X30
550D4030
Superseded by 550AA4030
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,15MM
670B2015
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,WHEEL
11012-1969
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#39186
KNUCKLE,LH
39186-1077
|
$195.59 | ||
|
Available to order. Add to View Price |
|||
|
#39186A
KNUCKLE,RH
39186-1078
|
$195.59 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,FR,L
41035-1302
|
$421.18 | ||
|
Available to order. Add to View Price |
|||
|
#41035A
PANEL-ASSY-BRAKE,FR,R
41035-1303
|
$421.18 | ||
|
Available to order. Add to View Price |
|||
|
#41038
DRUM,FRONT BRAKE
41038-1189
Superseded by 41038-1327
|
$178.21 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1068
|
$27.79 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1081
|
$38.15 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR
41085-1059
|
$10.74 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,LH
43001-1228
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#43001A
LEVER-BRAKE,RH
43001-1229
|
$33.36 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,8X18
92002-1957
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,16MM
92015-1947
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,60042RD
92045-1198
|
$22.06 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,#6203UUC3
92045-1228
Superseded by 601B6203UU
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1318
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,16X22X10.5
92143-1117
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,20X25.4X25
92143-1118
|
$13.97 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,BRAKE SHOE
92144-1225
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1289
|
$5.47 | ||
|
Available to order. Add to View Price |
|||
