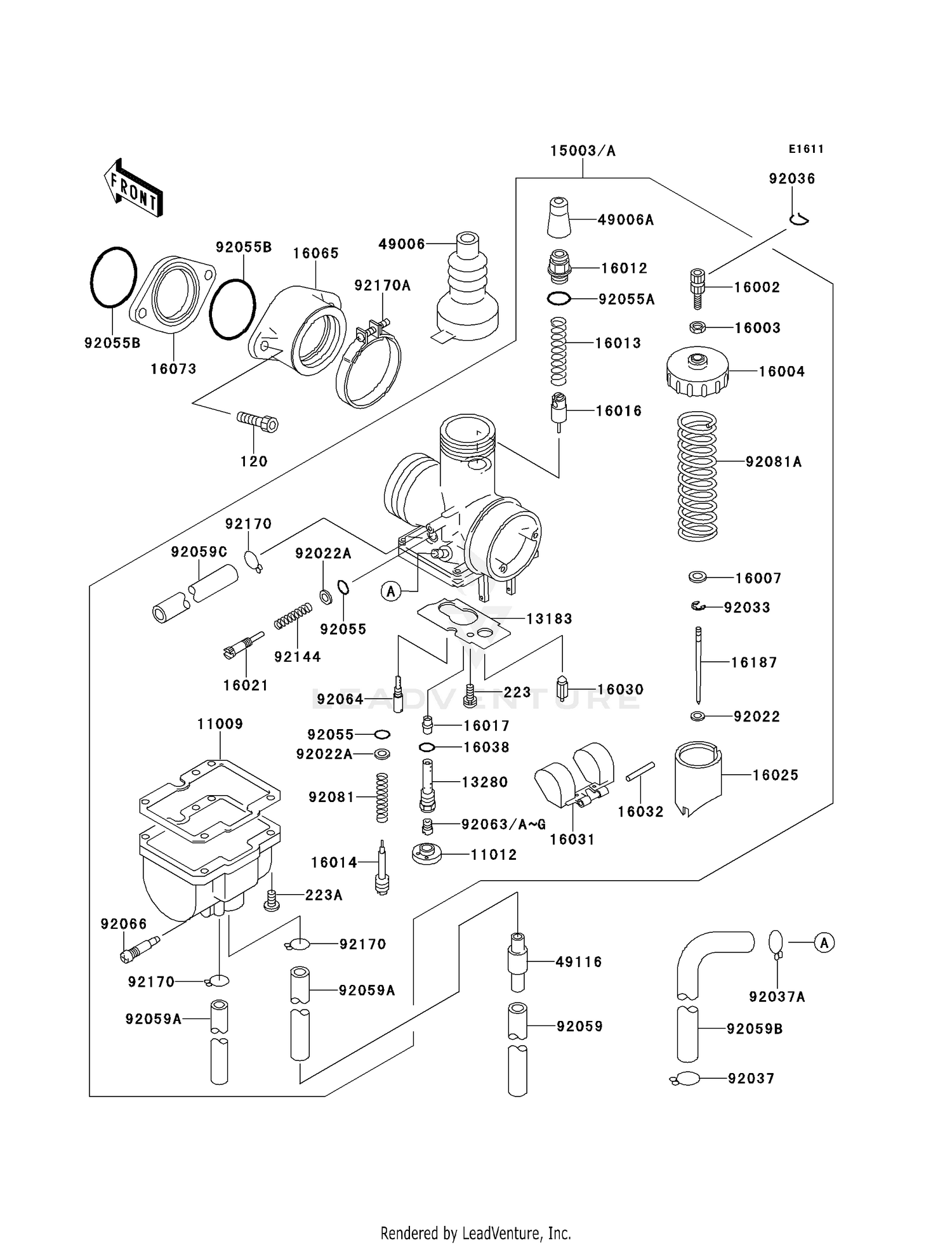

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1676
|
$18.06 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1659
|
$28.29 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1273
|
$22.80 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,NEEDLE JET
13280-1167
|
$34.00 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1533
|
$735.80 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1564
|
$611.77 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-011
|
$14.32 | ||
|
Available to order. Add to View Price |
|||
|
#16003
NUT,ADJUST LOCK
16003-006
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER
16004-1055
|
$34.83 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,THROTTLE
16007-1111
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1056
|
$16.27 | ||
|
Available to order. Add to View Price |
|||
|
#16013
SPRING-PLUNGER
16013-003
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT AIR ADJST
16014-1027
|
$26.20 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1074
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,O-6M
16017-1408
|
$47.41 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1126
|
$16.57 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA3.0
16025-1150
|
$108.18 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT,#1.5
16030-1066
|
$54.62 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1055
|
$54.64 | ||
|
Available to order. Add to View Price |
|||
|
#16032
PIN,FLOAT
16032-003
Superseded by 16032-008
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#16038
0 RING,MAIN JET COV
16038-016
|
$3.34 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1157
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR
16073-1053
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,5GN64
16187-1115
|
$43.23 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-1230
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,STARTER PLUNGER
49006-1235
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1126
|
$21.14 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,THROTTLE VALVE
92022-1024
|
$7.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92022A
WASHER,ADJUST SCREW
92022-1187
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1290
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1531
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1712
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92055
0 RING,PILOT SCREW
92055-1078
|
$6.43 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,STARTER PLUNGER
92055-1242
Superseded by 92055-1252
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,32MM
92055-1256
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,7X10X100
92059-1736
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6X8X650
92059-1843
Superseded by 92059-1937
|
$24.26 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X20
120S0620
Superseded by 120CB0620
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223B0308
Superseded by 223AA0307
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS,4X14
223B0414
Superseded by 223AA0414
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,4.5X9.5X225
92059-1889
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#92059C
TUBE,6X8X650
92059-1937
|
$24.26 | ||
|
Unavailable |
|||
|
