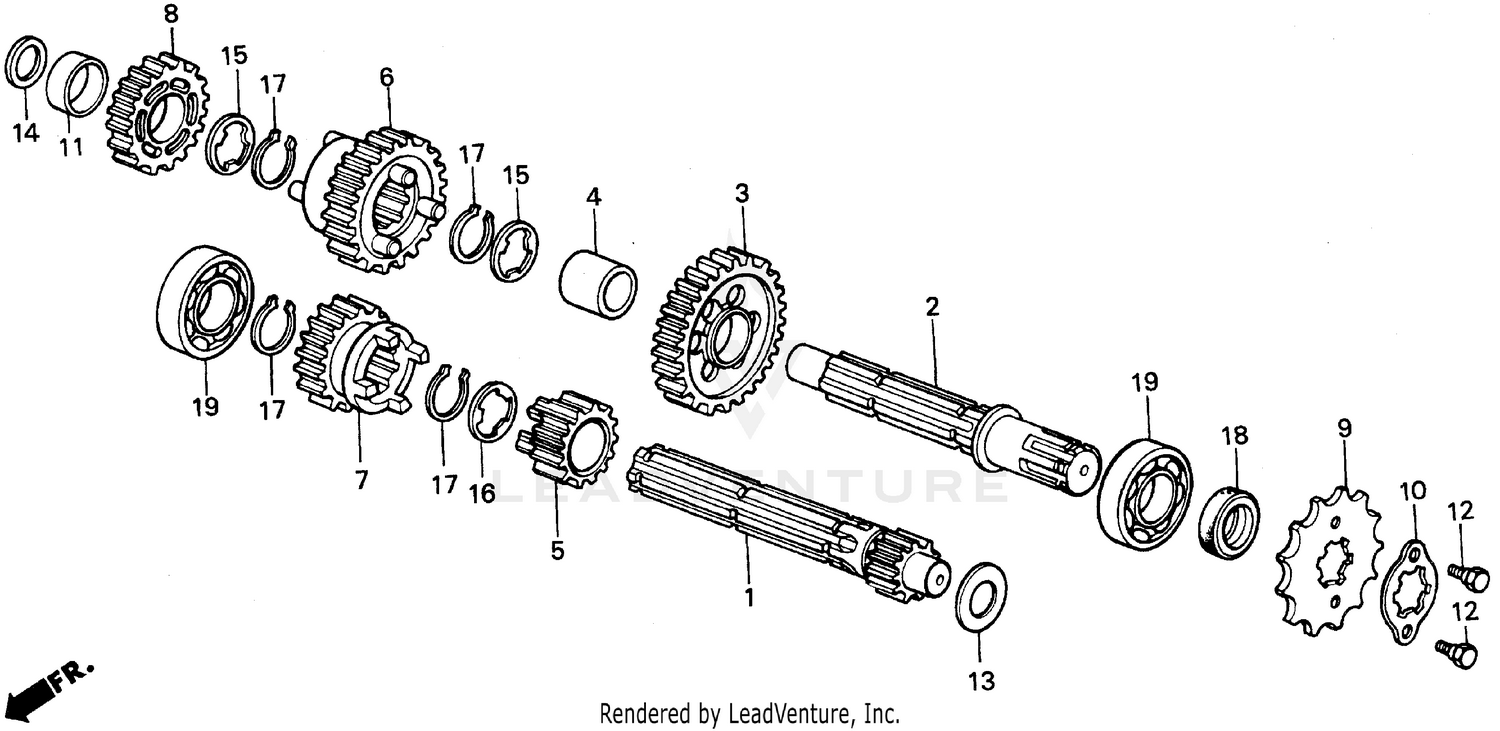

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT, TRANSMISSION (11T)
23211-041-020
|
$88.98 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT, TRANSMISSION
23221-041-050
|
$71.28 | ||
|
Unavailable |
|||
|
#3
GEAR, COUNTERSHAFT LOW (36T)
23421-086-020
|
$69.45 | ||
|
Unavailable |
|||
|
#4
COLLAR, COUNTERSHAFT LOW GEAR
23422-041-000
|
$4.42 | ||
|
Unavailable |
|||
|
#5
GEAR, MAINSHAFT SECOND (17T)
23431-171-000
|
$51.60 | ||
|
Unavailable |
|||
|
#6
GEAR, COUNTERSHAFT SECOND (31T)
23441-086-010
|
$72.14 | ||
|
Unavailable |
|||
|
#7
GEAR, MAINSHAFT THIRD (21T)
23471-041-050
|
$44.58 | ||
|
Unavailable |
|||
|
#8
GEAR, COUNTERSHAFT THIRD (25T)
23481-086-010
|
$39.94 | ||
|
Unavailable |
|||
|
#9
SPROCKET, DRIVE (14T)
23801-178-000
|
$19.87 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, DRIVE SPROCKET FIXING
23802-040-000
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, GEAR
23911-041-020
|
$4.76 | ||
|
Unavailable |
|||
|
#12
BOLT, DRIVE SPROCKET FIXING
90084-041-000
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (14MM)
90451-121-000
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, THRUST (13.5MM)
90451-141-000
|
$15.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPLINE (17MM)
90461-035-000
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER B, SPLINE (17MM)
90462-035-000
|
$2.13 | ||
|
Unavailable |
|||
|
#17
CIRCLIP, OUTER (17MM)
90601-001-000
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (17X29X5) (NOK)
91203-GBG-900
|
$8.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
OIL SEAL (17X29X5) (ARAI)
91203-GB5-761
Superseded by 91203-GBG-900
|
$8.78 | ||
|
Unavailable |
|||
|
#19
BEARING, RADIAL BALL (6203)
96100-62030-00
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
