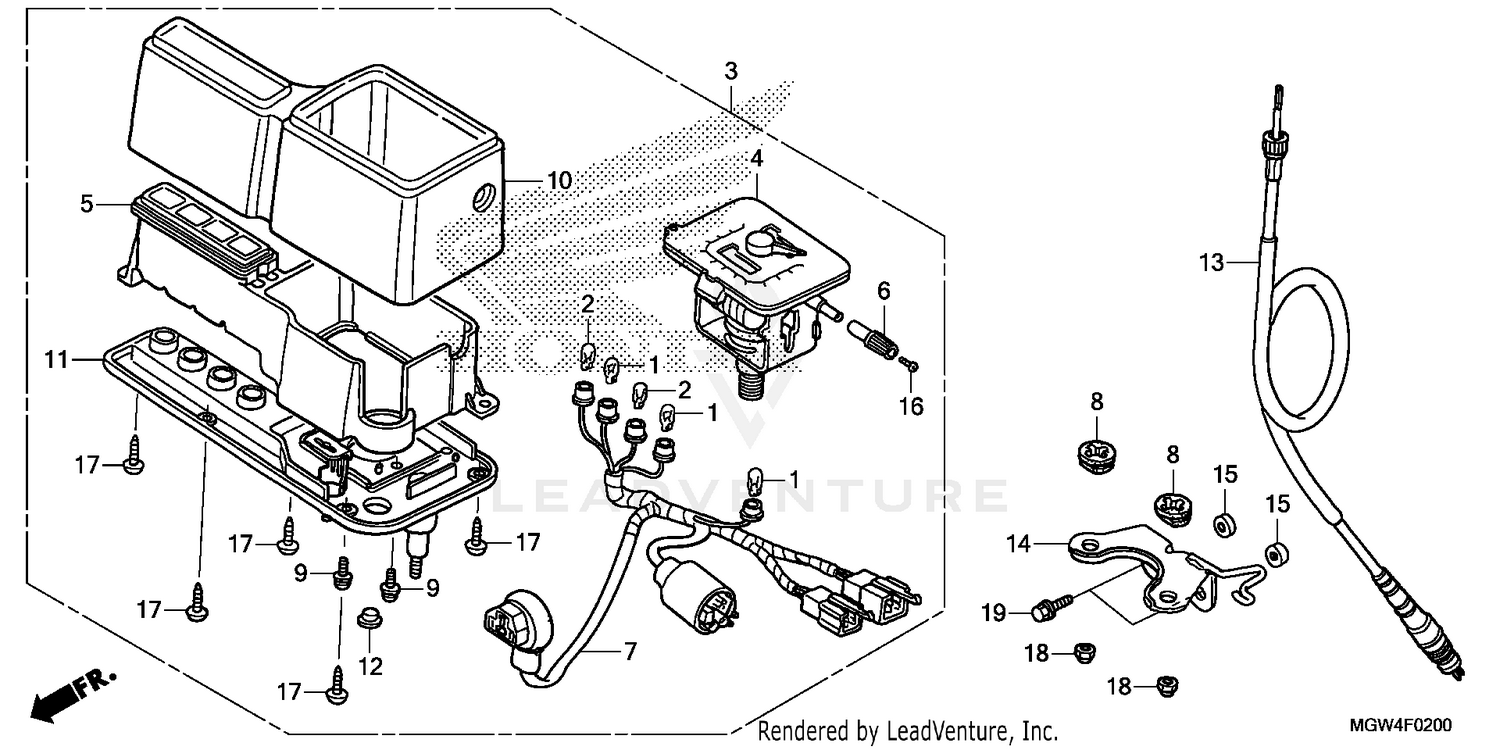

Speedometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB (14V 3.4W) (NS)
34908-GA7-701
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#1
BULB (14V 3.4W) (NS)
37102-567-009
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS) BULB (14V 3.4W) (DENSO)
37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#1
BULB (14V 3.4W) (NS)
37237-SA5-004
Superseded by 37237-SA5-003
|
$5.25 | ||
|
Unavailable |
|||
|
#2
BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)
34908-MB9-871
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER ASSY. (MPH/KPH)(COO)
37200-MGW-315
|
$447.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPEEDOMETER ASSY. (MPH/KPH)(COO)
37200-MY6-A92
Superseded by 37200-MGW-315
|
$447.27 | ||
|
Unavailable |
|||
|
#4
SPEEDOMETER
37210-MY6-672
|
$173.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE ASSY. (INNER)
37211-MY6-A90
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
KNOB
37220-KR3-671
|
$13.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET
37223-MY6-671
|
$134.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, SPEEDOMETER MOUNTING
37243-MG2-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-WASHER (4X12)
37305-MAW-621
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE ASSY. (UPPER) (COO)
37610-KBR-008
Superseded by 37610-MGW-305
|
$80.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE ASSY. (UPPER) (COO)
37610-MGW-305
|
$80.09 | ||
|
Unavailable |
|||
|
#11
CASE ASSY. (LOWER)
37617-MY6-671
|
$72.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, SPEED ALARM WIRE
37618-MB2-008
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, SPEEDOMETER
44830-MZ1-000
|
$49.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY, SPEEDOMETER
61315-KR5-000
|
$27.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (9X20X6)
90114-MY6-700
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (2X6)
90158-KM7-911
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, CAP (6MM)
94021-06000-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CAP (6MM)
94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#18
NUT, CAP (6MM)
94021-06020-0S
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#18
NUT, CAP (6MM)
94022-06020
Superseded by 94021-06020
|
$1.90 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X20)
95701-08020-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
