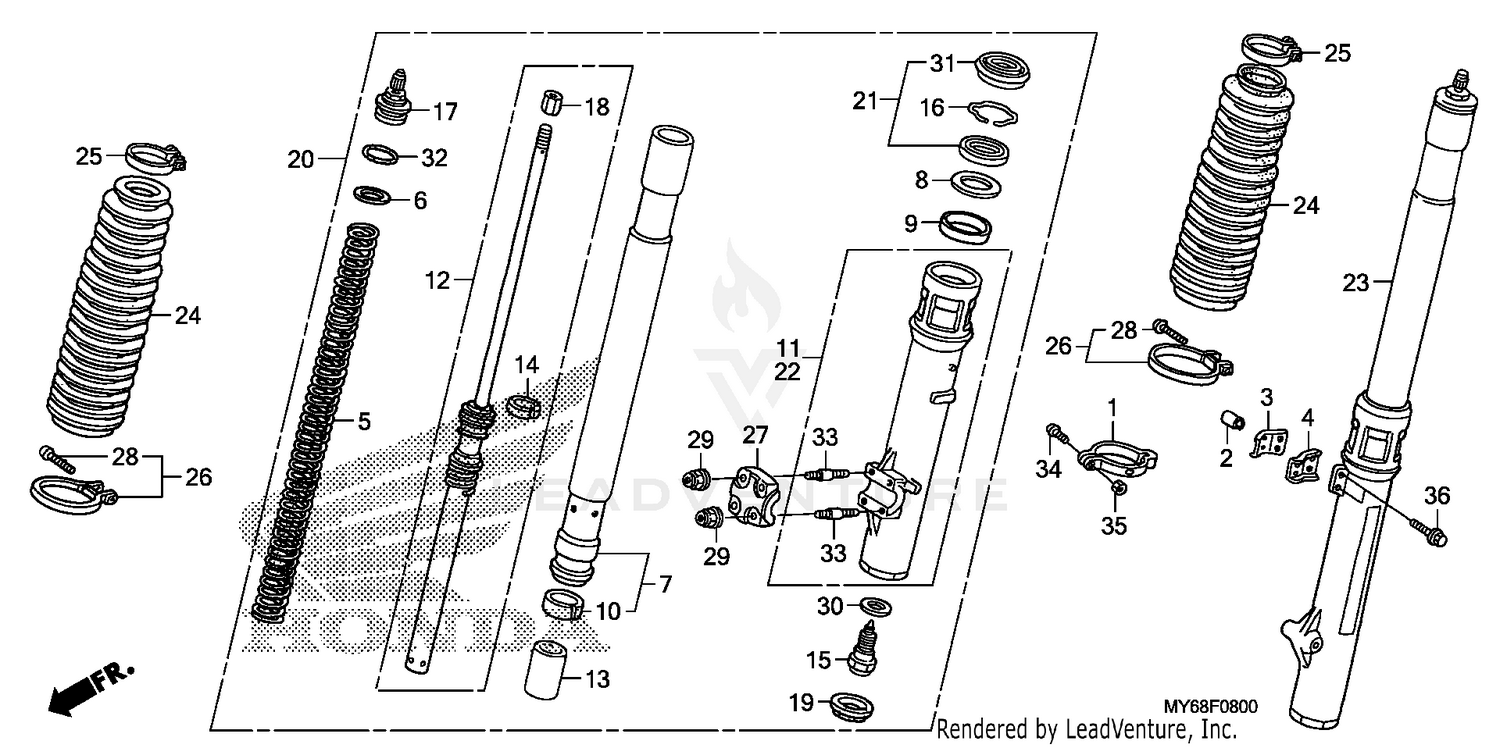

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, SPEEDOMETER CABLE
44832-MG2-000
|
$10.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, SPEEDOMETER CABLE CLAMP
44833-MN1-680
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP A, FR. BRAKE CABLE
45461-MG3-650
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP B, FR. BRAKE CABLE
45462-MG3-650
|
$9.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FR. FORK (SHOWA)
51401-MY6-671
|
$160.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SPRING
51405-KA4-711
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, FR. FORK
51410-MN1-682
|
$501.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, BACK-UP
51412-KA4-711
|
$11.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, GUIDE
51414-MAZ-751
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, GUIDE
51414-MN1-671
Superseded by 51414-MAZ-751
|
$8.96 | ||
|
Unavailable |
|||
|
#10
BUSH, SLIDER
51415-MN1-671
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, R. (LOWER) (SHOWA)
51420-KS7-023
|
$568.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, FR. (SHOWA)
51430-MY6-671
|
$341.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIECE, OIL LOCK (SHOWA)
51432-KS7-003
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, CYLINDER
51435-KS7-003
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CENTER (SHOWA)
51441-KS7-003
|
$91.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, OIL SEAL STOPPER (SHOWA)
51447-KA4-711
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT ASSY., FR. FORK (SHOWA)
51450-KS6-831
|
$82.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, LOCK (SHOWA)
51451-KS7-701
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP, FR. FORK (SHOWA)
51461-KA4-831
|
$5.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
FORK SUB-ASSY., R. FR. (SHOWA)
51480-MY6-792
|
$1,076.04 | ||
|
Available to order. Add to View Price |
|||
|
#20
FORK SUB-ASSY., R. FR. (SHOWA)
51480-MGW-305
Superseded by 51480-MY6-792
|
$1,076.04 | ||
|
Unavailable |
|||
|
#21
SEAL SET, FR. FORK (SHOWA)
51490-KA4-831
|
$36.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
CASE, L. (LOWER) (SHOWA)
51520-MY6-672
|
$568.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
51580-MY6-792
Superseded by 51580-MGW-305
|
$1,076.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
51580-MGW-305
|
$1,076.04 | ||
|
Unavailable |
|||
|
#24
BOOT, FR. FORK
51611-MN1-671ZE
Superseded by 51611-MN1-673
|
$61.47 | ||
|
Unavailable |
|||
|
#25
BAND, BOOT (UPPER) (SHOWA)
51612-KA4-831
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND, BOOT (LOWER) (SHOWA)
51613-MK2-003
|
$10.64 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, AXLE (SHOWA)
51634-KA4-831
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (3.5X25)
90202-MK2-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, U (6MM) NUT, FLANGE (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SPECIAL (SHOWA)
90544-KS7-003
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#31
DUST SEAL, FR. FORK
91254-KA4-831
|
$18.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (35.2X2.4)
91356-KA4-711
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, STUD (6X25) (R. SIDE ONLY)
92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (5X28)
93500-05028-0G
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEX. (5MM)
94001-05070-0S
|
$1.08 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
