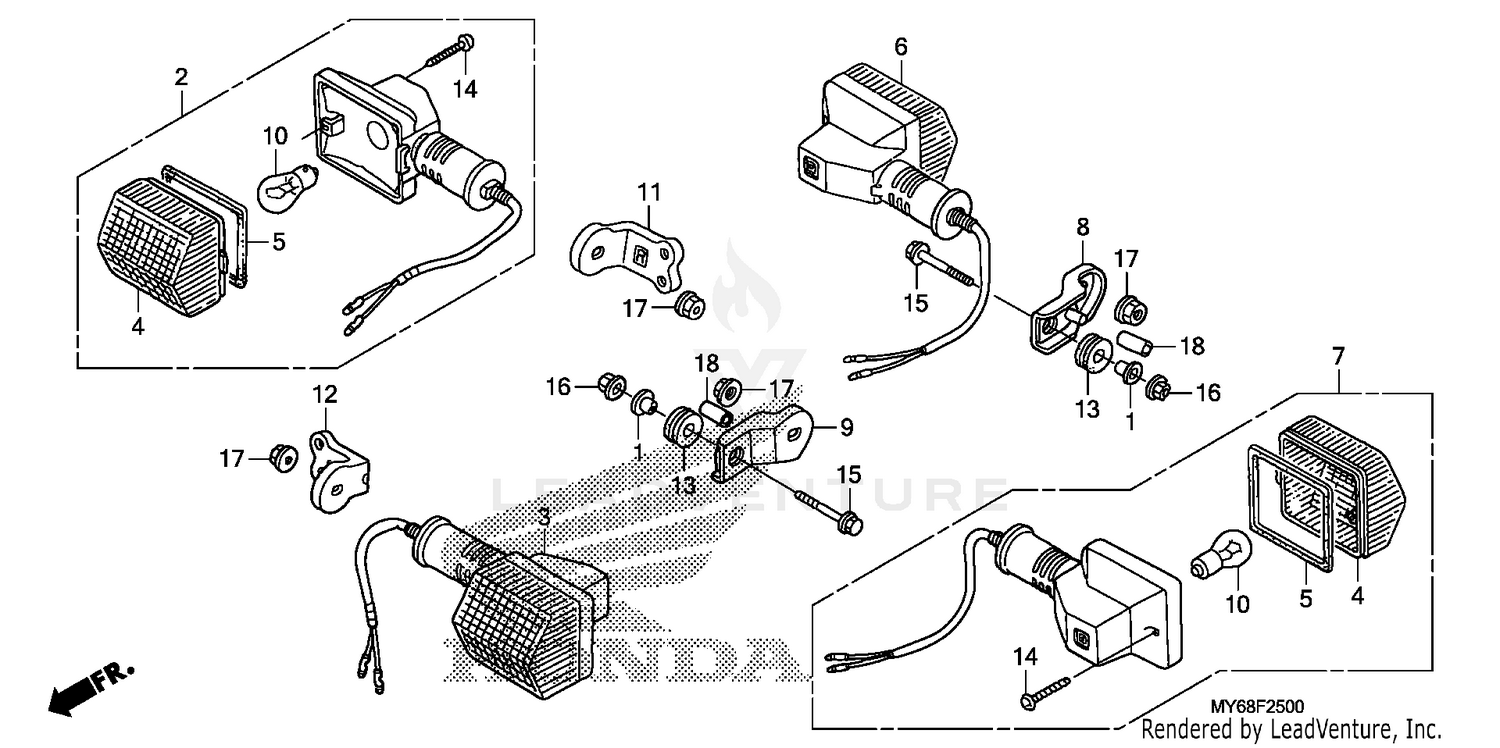

Turn Signal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, RESERVE TANK SETTING
19107-415-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
TURN SIGNAL ASSY., R. FR. (12V 23W) (COO)
33300-MGW-305
|
$99.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
TURN SIGNAL ASSY., L. FR. (12V 23W)
33350-MY6-670
|
$99.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
TURN SIGNAL ASSY., L. FR. (12V 23W)
33350-MGW-305
Superseded by 33350-MY6-670
|
$99.95 | ||
|
Unavailable |
|||
|
#4
LENS, TURN SIGNAL (COO)
33402-MGW-305
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, LENS
33407-MG2-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
TURN SIGNAL SET, R. RR. (12V 23W) (COO)
33500-MGW-305
|
$85.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
TURN SIGNAL SET, L. RR. (12V 23W) (COO)
33550-MGW-305
|
$85.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, R. RR. TURN SIGNAL *NH146M* (ACCURATE SILVER METALLIC)
33605-MY6-670ZB
|
$29.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, L. RR. TURN SIGNAL *NH146M* (ACCURATE SILVER METALLIC)
33606-MY6-670ZB
|
$29.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)
34905-268-671
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, R. FR. TURN SIGNAL
53101-MM0-620
|
$46.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, L. FR. TURN SIGNAL
53102-MM0-620
|
$46.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING (3X25)
91901-MG2-003
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-WASHER (6X55)
93404-06055-00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
BULK HOSE, VINYL (6X9X1000) (6X9X600) (BULK HOSE 95003-14003-10M)
95003-14001-10M
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
