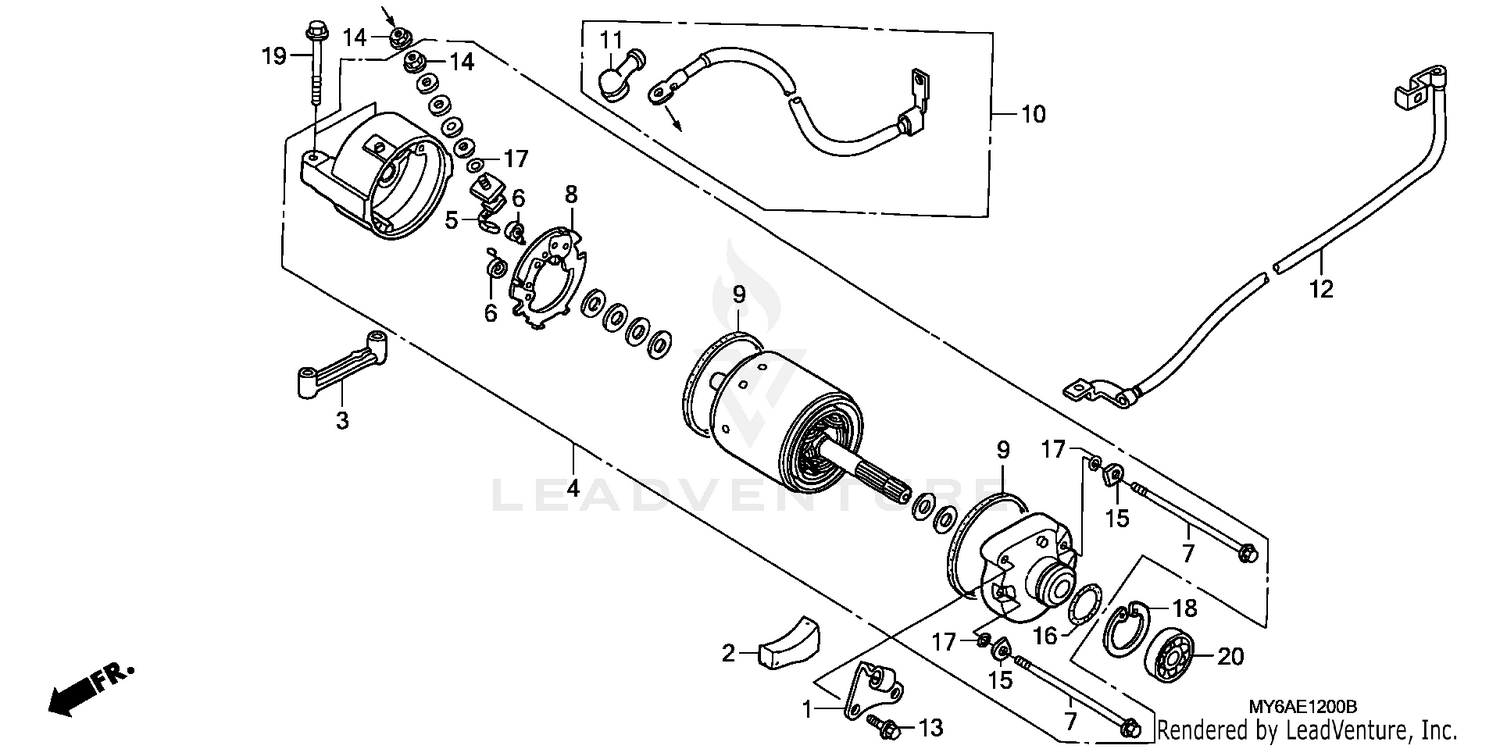

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECEIVER, CLUTCH CABLE
22838-MY6-880
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, STARTER MOTOR
31031-MK5-000
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
31190-MK4-600
|
$27.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
MOTOR ASSY., STARTER
31200-MN9-013
|
$868.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)
31201-KS5-901
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CARBON BRUSH
31204-KS5-901
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SETTING
31205-MN4-008
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER SET, BRUSH
31206-MN4-008
|
$28.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING (Honda Code 2541985)
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, STARTER MOTOR
32410-MY6-670
|
$58.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, STARTER MOTOR TERMINAL
32411-230-000
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, STARTER MOTOR TERMINAL
32411-253-000
Superseded by 32411-230-000
|
$8.04 | ||
|
Unavailable |
|||
|
#12
CABLE, BATTERY GROUND
32601-MY6-670
|
$53.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X16) (NSHF)
90004-GHB-630
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, STEEL PLATE
90122-MN4-008
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
O-RING (24.4X3.1) (Honda Code 2618221)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#17
O-RING (Honda Code 1292184)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CIRCLIP (INNER) (32MM)
94520-32000
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X55)
95701-06055-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, RADIAL BALL (6201)
96100-62010-00
|
$10.15 | ||
|
Unavailable |
|||
