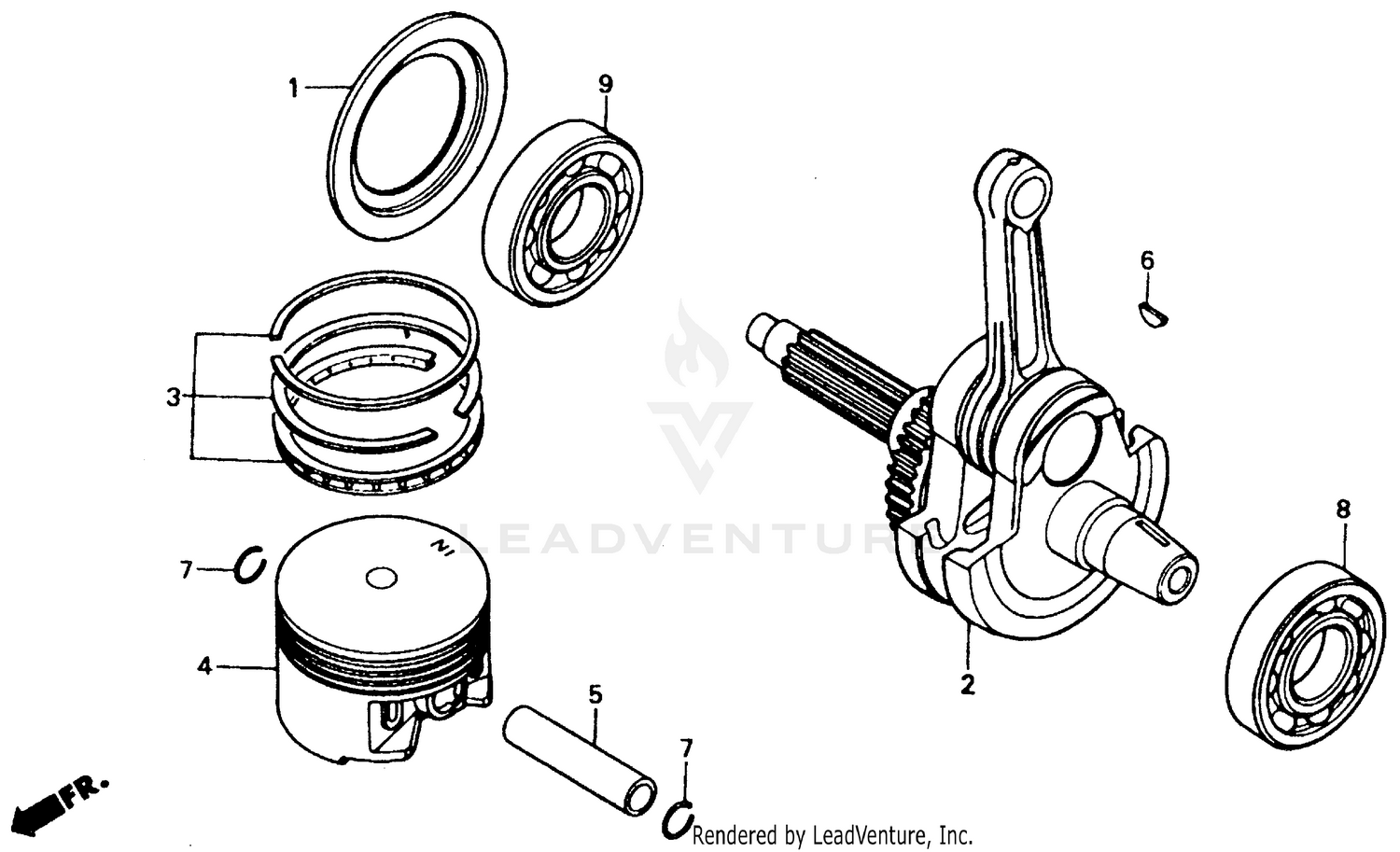

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, MAIN BEARING
11215-MG2-000
|
$8.10 | ||
|
Unavailable |
|||
|
#2
CRANKSHAFT
13000-MN1-671
|
$623.81 | ||
|
Unavailable |
|||
|
#3
RING SET, PISTON (STD)
13011-MN1-305
|
$83.67 | ||
|
Unavailable |
|||
|
#3
RING SET, PISTON (OS 0.25)
13021-MN1-305
|
$78.09 | ||
|
Unavailable |
|||
|
#3
RING SET, PISTON (OS 0.50)
13031-MN1-305
|
$75.81 | ||
|
Unavailable |
|||
|
#4
PISTON (STD)
13101-MN1-680
|
$99.18 | ||
|
Unavailable |
|||
|
#4
PISTON (OS 0.25)
13102-MN1-305
|
$121.60 | ||
|
Unavailable |
|||
|
#4
PISTON (OS 0.50)
13103-MN1-305
|
$121.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, PISTON
13111-MN1-670
|
$20.57 | ||
|
Available to order. Add to View Price |
|||
|
#6
KEY, SPECIAL WOODRUFF (25X18)
13331-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, PISTON PIN
90602-MN1-670
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, RADIAL BALL (6308)
91001-MN1-671
|
$67.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, RADIAL BALL (6307)
91001-MK2-003
|
$112.51 | ||
|
Available to order. Add to View Price |
|||
