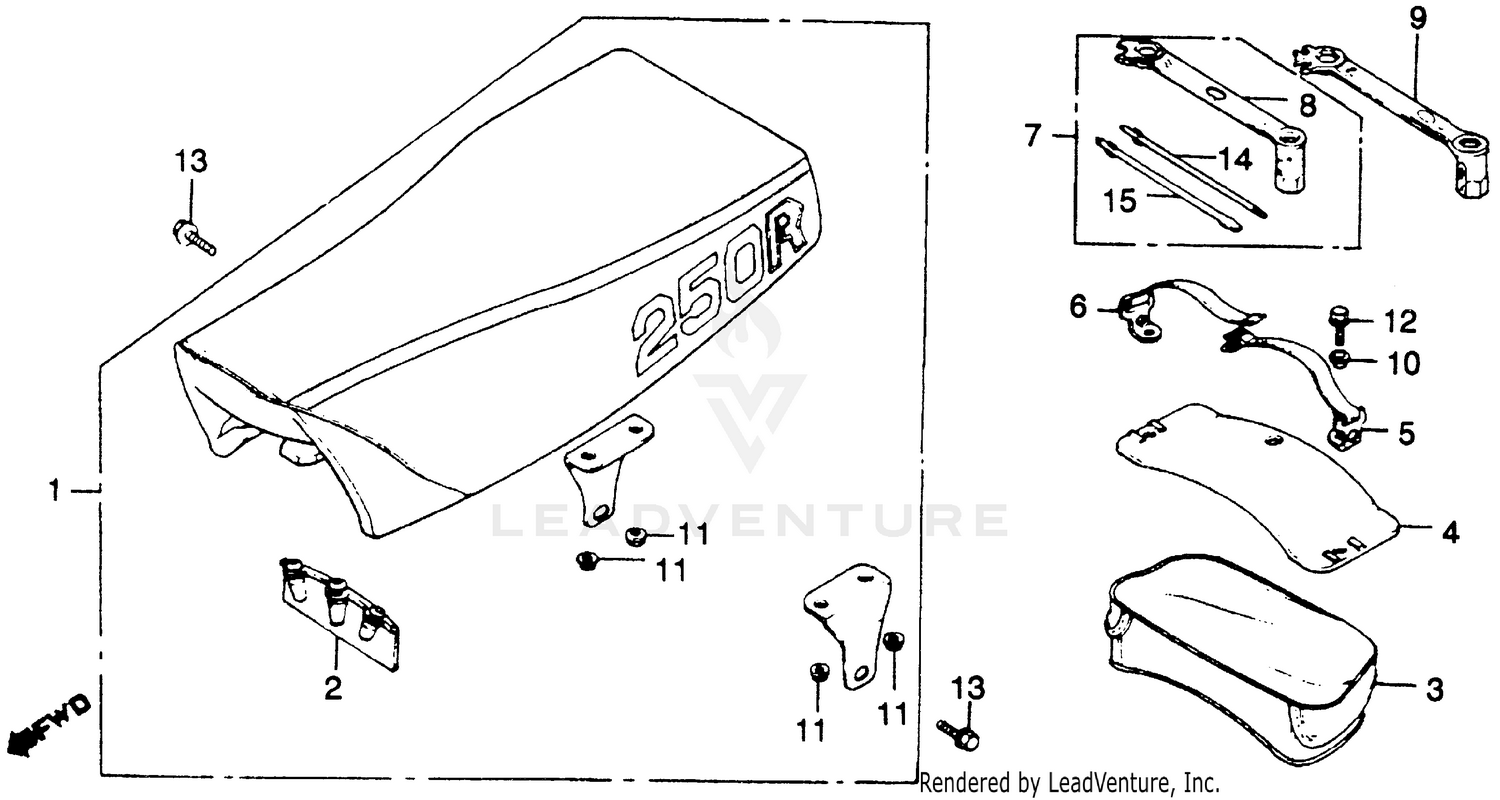

Seat + Tools Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY.
77200-KA6-000
Superseded by 77200-KA6-406
|
$297.60 | ||
|
Unavailable |
|||
|
#1
SEAT ASSY.
77200-KA6-406
|
$297.60 | ||
|
Unavailable |
|||
|
#2
RUBBER, SEAT SETTING (NOT AVAILABLE)
77201-429-000
|
$8.65 | ||
|
Unavailable |
|||
|
#3
BOX, TOOL (NOT AVAILABLE)
83501-MA0-000
|
$90.69 | ||
|
Unavailable |
|||
|
#4
PLATE, TOOL BAG (NOT AVAILABLE)
83502-MA0-000
|
$18.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND A, CARRIER (NOT AVAILABLE)
83505-MA0-000
|
$14.54 | ||
|
Unavailable |
|||
|
#6
BAND B, CARRIER (NOT AVAILABLE)
83506-MA0-000
|
$15.26 | ||
|
Unavailable |
|||
|
#9
WRENCH, EYE (24MM) (NOT AVAILABLE)
89225-MA0-770
|
$16.35 | ||
|
Unavailable |
|||
|
#10
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X16)
95700-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X16)
95900-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (8X20)
95700-08020-00
Superseded by 95701-08020-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X20)
95701-08020-00
|
$1.95 | ||
|
Unavailable |
|||
