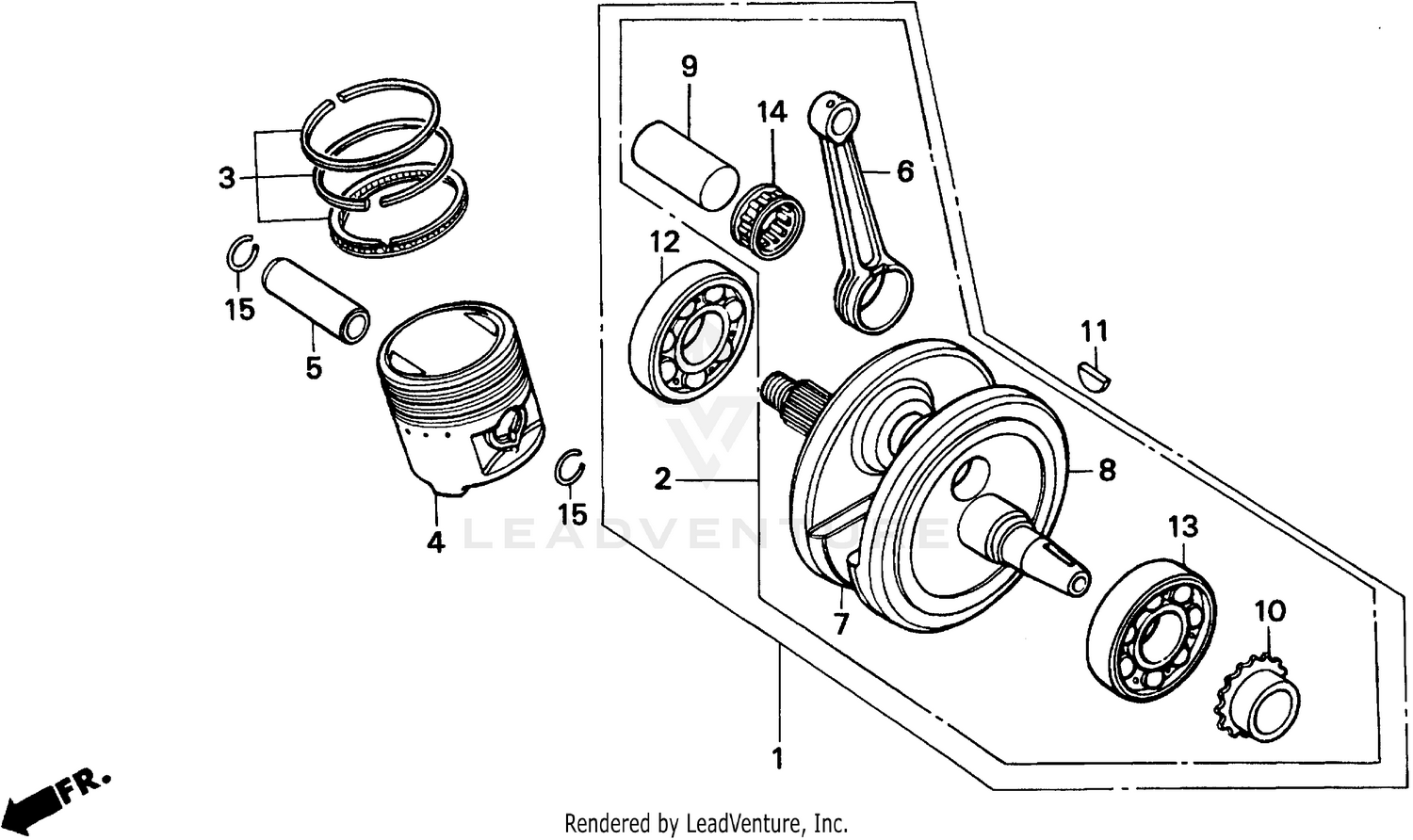

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CRANKSHAFT
13000-446-774
|
$443.53 | ||
|
Unavailable |
|||
|
#3
RING SET, PISTON (STD)
13011-446-811
|
$86.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON (STD)
13101-446-770
|
$100.68 | ||
|
Unavailable |
|||
|
#5
PIN, PISTON
13111-425-000
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
13201-446-770
|
$192.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKSHAFT, R.
13311-446-771
|
$227.57 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT, L.
13300-KF9-318
|
$206.99 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT, L.
13321-446-772
Superseded by 13300-KF9-318
|
$206.99 | ||
|
Unavailable |
|||
|
#9
PIN, CRANK
13380-KCN-300
|
$71.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPROCKET, TIMING (16T)
14311-KJ2-300
|
$38.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
KEY, WOODRUFF (4MM)
90741-KFB-000
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING, RADIAL BALL (28X72X18)
91001-KC6-961
|
$63.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (28X72X18) (NTN)
91001-KBR-003
|
$60.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (28X72X18) (NTN)
91001-446-771
Superseded by 91001-KBR-003
|
$60.24 | ||
|
Unavailable |
|||
|
#14
BEARING A, CONNECTING ROD LARGE END (RED)
91002-446-771
|
$38.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING B, CONNECTING ROD LARGE END (BLUE)
91003-446-771
|
$38.38 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING C, CONNECTING ROD LARGE END (WHITE)
91004-446-771
|
$38.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, PISTON PIN (15MM)
94601-15000
|
$1.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
