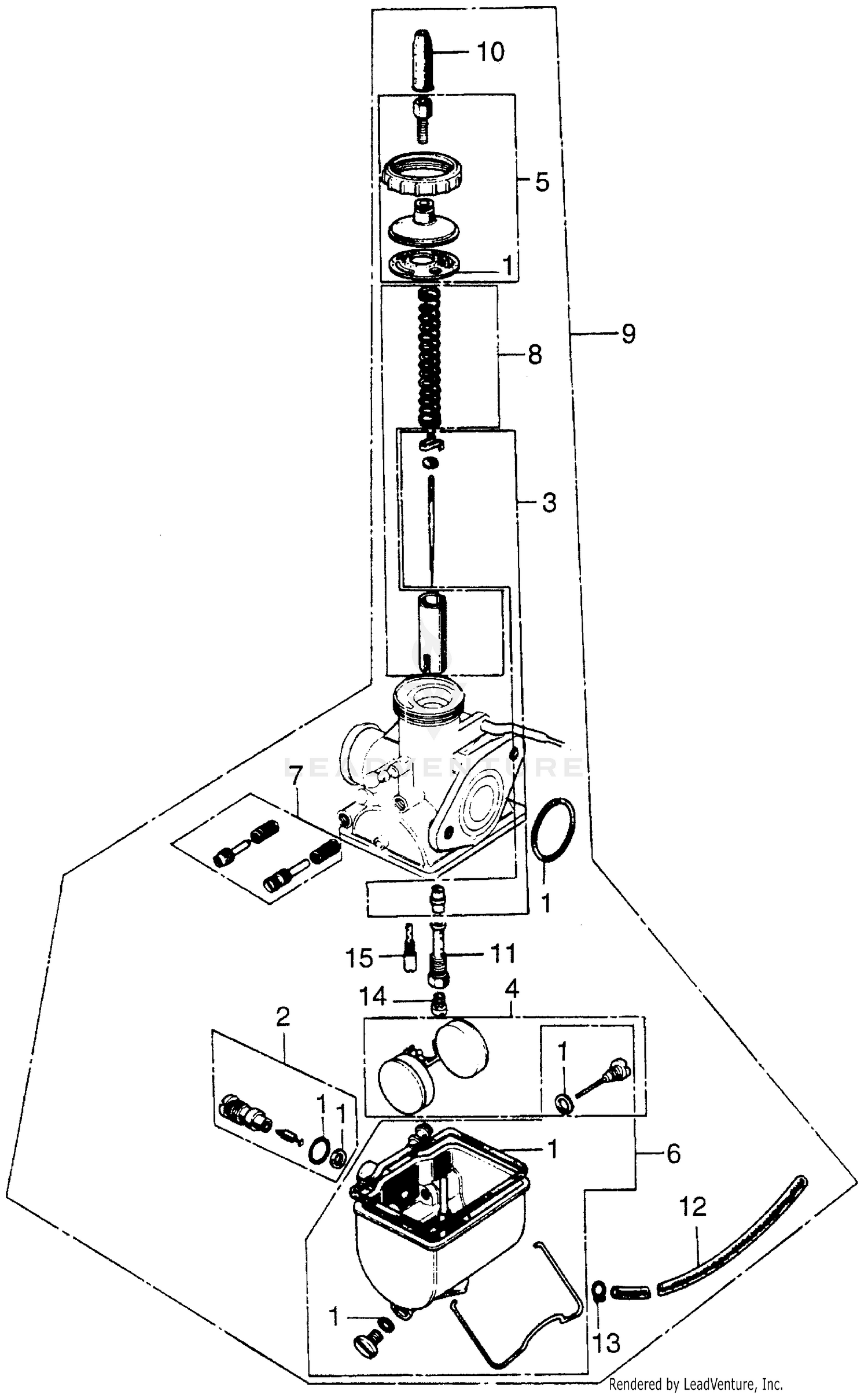

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-061-004
Superseded by 16010-061-305
|
$12.30 | ||
|
Unavailable |
|||
|
#1
GASKET SET
16010-061-305
|
$12.30 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-061-004
|
$32.28 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-118-670
|
$26.35 | ||
|
Unavailable |
|||
|
#4
FLOAT SET
16013-051-004
|
$29.18 | ||
|
Unavailable |
|||
|
#5
TOP SET (NOT AVAILABLE)
16014-088-004
|
$20.57 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-051-690
|
$61.40 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-KJ2-671
|
$15.89 | ||
|
Unavailable |
|||
|
#7
SCREW SET A
16016-035-004
Superseded by 16016-KJ2-671
|
$15.89 | ||
|
Unavailable |
|||
|
#8
VALVE SET, THROTTLE
16022-118-670
|
$24.48 | ||
|
Unavailable |
|||
|
#9
CARBURETOR ASSY. (NOT AVAILABLE)
16100-118-771
|
$192.56 | ||
|
Unavailable |
|||
|
#10
CAP, CABLE SEALING
16118-086-004
Superseded by 16118-166-004
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, CABLE SEALING
16118-166-004
|
$10.15 | ||
|
Unavailable |
|||
|
#11
HOLDER, NEEDLE JET (NOT AVAILABLE)
16139-089-004
|
$12.52 | ||
|
Unavailable |
|||
|
#12
BULK HOSE, FUEL (3.5X3000) (3.5X300)
95001-35003-60M
|
$25.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
JET, MAIN (#65) (NOT AVAILABLE)
99114-056-0651
Superseded by 99114-246-0650
|
$3.61 | ||
|
Unavailable |
|||
|
#14
JET, MAIN (#65) (NOT AVAILABLE)
99114-246-0650
|
$3.61 | ||
|
Unavailable |
|||
|
#15
JET SLOW #40
99130-040-14
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
