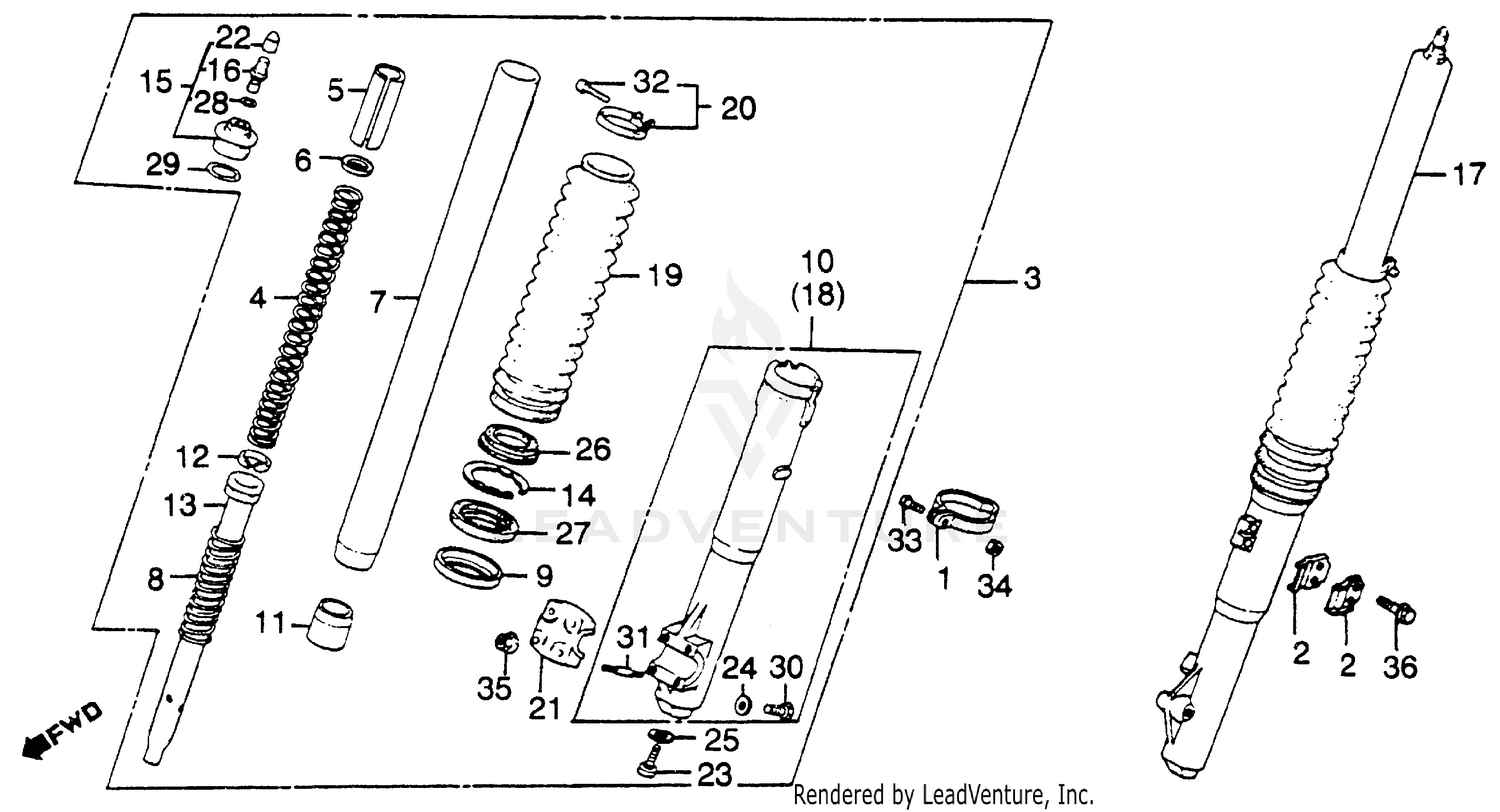

Xl500r Front Fork 82 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)
44832-MC4-000
|
$6.49 | ||
|
Unavailable |
|||
|
#2
CLAMP, FR. BRAKE CABLE (NOT AVAILABLE)
45461-MC4-000
|
$3.23 | ||
|
Unavailable |
|||
|
#3
FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)
51400-MC4-003
|
$778.65 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (NOT AVAILABLE)
51401-MC4-003
|
$56.17 | ||
|
Unavailable |
|||
|
#5
COLLAR, SPRING (NOT AVAILABLE)
51402-MA0-771
|
$12.41 | ||
|
Unavailable |
|||
|
#6
SEAT, SPRING
51403-MA0-771
|
$5.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
PIPE, FR. FORK (NOT AVAILABLE)
51410-MC4-003
|
$187.34 | ||
|
Unavailable |
|||
|
#8
SPRING, REBOUND (NOT AVAILABLE)
51412-MA0-771
|
$3.86 | ||
|
Unavailable |
|||
|
#9
RING, BACK-UP
51412-461-003
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING, BACK-UP
51412-461-305
Superseded by 51412-461-003
|
$8.84 | ||
|
Unavailable |
|||
|
#10
CASE, R. (LOWER) (NOT AVAILABLE)
51420-MC4-003
|
$305.76 | ||
|
Unavailable |
|||
|
#11
PIECE, OIL LOCK (NOT AVAILABLE)
51432-MC4-003
|
$16.48 | ||
|
Unavailable |
|||
|
#12
RING, PISTON
51437-MA0-771
|
$7.63 | ||
|
Unavailable |
|||
|
#13
PIPE, SEAT (NOT AVAILABLE)
51440-MC4-003
|
$59.17 | ||
|
Unavailable |
|||
|
#14
CIRCLIP (INNER) (50MM)
51447-461-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT ASSY., FR. FORK (NOT AVAILABLE)
51450-MC4-003
|
$64.28 | ||
|
Unavailable |
|||
|
#16
VALVE, AIR
51456-469-013
|
$40.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)
51500-MC4-003
|
$778.65 | ||
|
Unavailable |
|||
|
#18
CASE, L. (LOWER) (NOT AVAILABLE)
51520-MC4-003
|
$305.76 | ||
|
Unavailable |
|||
|
#19
BOOT, FR. FORK (NOT AVAILABLE)
51611-430-000
|
$39.46 | ||
|
Unavailable |
|||
|
#20
BAND, FR. FORK BOOT
51612-430-010
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOLDER, AXLE
51634-MA0-003
|
$45.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, AIR VALVE
52425-381-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (8MM) (SHOWA)
90116-283-010
Superseded by 90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SOCKET (8X27)
90116-383-721
|
$6.44 | ||
|
Unavailable |
|||
|
#24
GASKET, FR. FORK DRAIN PETCOCK
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
DUST SEAL, FR. FORK (NOT AVAILABLE)
91254-MA0-003
|
$11.97 | ||
|
Unavailable |
|||
|
#27
OIL SEAL (37X50X11)
91255-461-003
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL (37X50X11)
91255-461-004
Superseded by 91255-461-003
|
$31.38 | ||
|
Unavailable |
|||
|
#28
O-RING (5.8X1.9)
91301-469-003
Superseded by 91305-323-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#28
O-RING (5.8X1.9)
91305-323-000
|
$3.51 | ||
|
Unavailable |
|||
|
#28
O-RING (5.6X1.9) (ARAI)
91318-ME5-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (29X2.4) (NOK)
91344-PC9-004
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING (29X2.4) (NOK)
91356-371-000
Superseded by 91344-PC9-004
|
$4.42 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#30
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#31
BOLT, STUD (6X25)
92700-06035-0E
Superseded by 92900-06025-0E
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, STUD (6X25)
92900-06025-0E
|
$1.18 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN (3X25)
93500-03025-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (5X18)
93500-05018-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, HEX. (5MM)
94001-05000-0S
|
$2.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Unavailable |
|||
