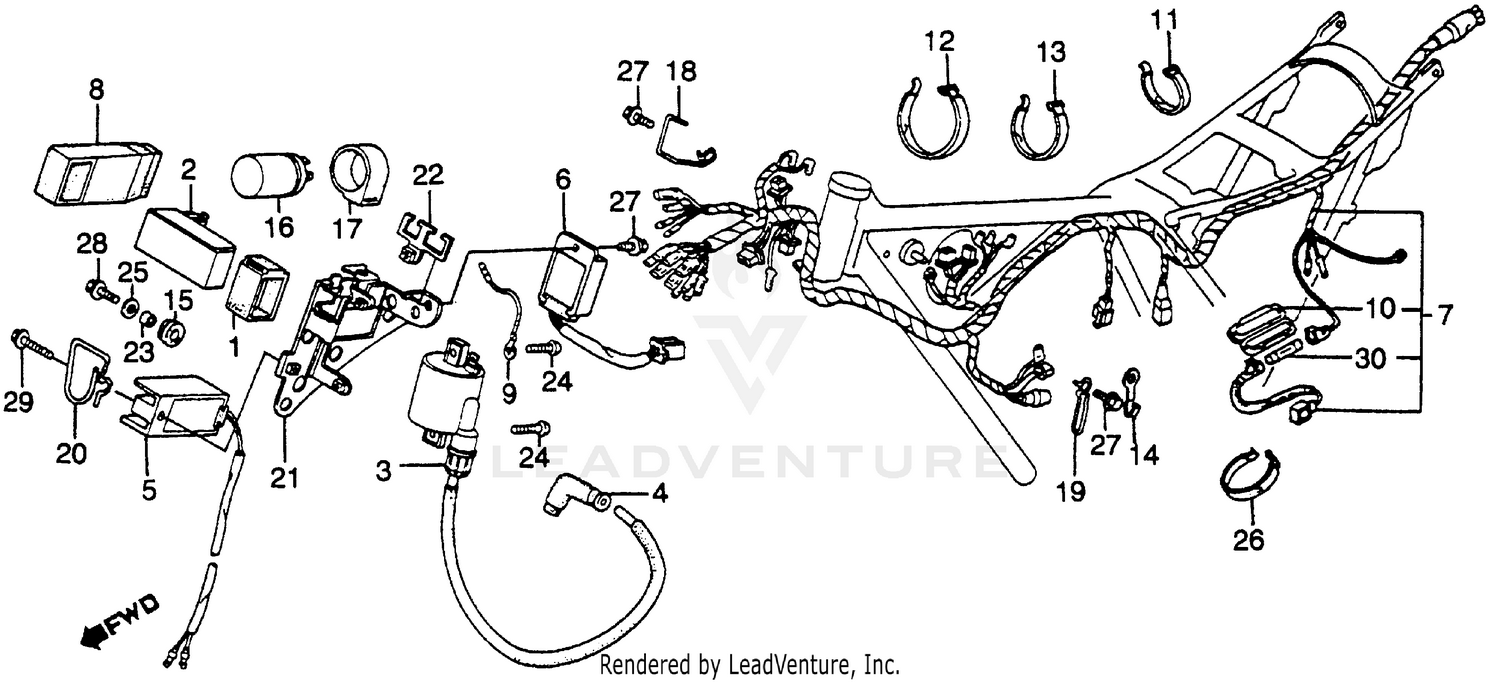

1982 Honda XL500R WIRE HARNESS + IGNITION COIL OEM Parts Diagram

Body, Fairing & Fender
+
Handlebars & Controls
+
Item MSRP Qty
#1 CUSHION, IGNITION CONTROL MODULE (CDI)
30401-KB4-000
$5.69
Available: Ships in 7-12 days.
Add to View Price
#2 MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) (NOT AVAILABLE)
30410-MC4-003
$115.22
Available: Ships in 7-12 days.
Add to View Price
#3 COIL ASSY., IGNITION
30500-KB7-003
Superseded by 30500-VM3-405
$92.84
Available: Ships in 7-12 days.
Add to View Price
#3 COIL ASSY., IGNITION
30500-KB9-000
Superseded by 30500-VM3-405
$92.84
Unavailable
#3 COIL ASSY., IGNITION
30500-VM3-405
$92.84
Unavailable
#3 COIL ASSY., IGNITION
30500-167-003
Superseded by 30500-VM3-405
$92.84
Unavailable
#3 COIL ASSY., IGNITION
30500-167-013
Superseded by 30500-VM3-405
$92.84
Unavailable
#3 COIL ASSY., IGNITION
30500-187-000
Superseded by 30500-VM3-405
$92.84
Unavailable
#3 COIL ASSY., IGNITION
30500-187-010
Superseded by 30500-VM3-405
$92.84
Unavailable
#4 CAP ASSY., NOISE SUPPRESSOR
30700-MA0-153
Superseded by 30700-MA0-163
$21.45
In Stock: Ready to ship.
Add to View Price
#4 CAP ASSY., NOISE SUPPRESSOR
30700-MA0-163
$21.45
Unavailable
#5 REGULATOR (NOT AVAILABLE)
31400-KB7-008
Superseded by 31400-KA2-641
$96.71
Available: Ships in 7-12 days.
Add to View Price
#6 RECTIFIER, REGULATOR (NOT AVAILABLE)
31600-MC4-000
Superseded by 31600-KG0-000
$116.06
Available: Ships in 7-12 days.
Add to View Price
#7 WIRE HARNESS (NOT AVAILABLE)
32100-MC4-670
$131.43
Available: Ships in 7-12 days.
Add to View Price
#8 COVER, C.D.I. CONNECTOR (NOT AVAILABLE)
32102-KB7-000
$5.35
Available: Ships in 7-12 days.
Add to View Price
#9 SUB-WIRE A (NOT AVAILABLE)
32111-KB7-000
$4.09
Available: Ships in 7-12 days.
Add to View Price
#10 CASE, FUSE CONNECTOR
32111-230-000
$3.84
Available: Ships in 7-12 days.
Add to View Price
#11 BAND, WIRE (NOT AVAILABLE)
32161-MA0-000
$3.47
Available: Ships in 7-12 days.
Add to View Price
#12 BAND, WIRE
32161-399-000
$3.25
Available: Ships in 7-12 days.
Add to View Price
#13 BAND, CABLE
32161-402-000
$4.42
Available: Ships in 7-12 days.
Add to View Price
#14 CLAMP, WIRE (NOT AVAILABLE)
32810-MC4-000
$5.33
Available: Ships in 7-12 days.
Add to View Price
#15 GROMMET, WIRE HARNESS
32983-028-000
$1.25
Available: Ships in 7-12 days.
Add to View Price
#16 RELAY, TURN SIGNAL
38300-415-004
Superseded by 38300-MG2-008
$26.55
Available: Ships in 7-12 days.
Add to View Price
#16 RELAY, TURN SIGNAL
38300-415-671
Superseded by 38300-MG2-008
$26.55
Unavailable
#16 RELAY, TURN SIGNAL
38301-415-004
Superseded by 38300-MG2-008
$26.55
Unavailable
#17 SUSPENSION, TURN SIGNAL RELAY
38306-292-000
$3.73
Available: Ships in 7-12 days.
Add to View Price
#18 CLAMP A, WIRE (NOT AVAILABLE)
45463-MC4-000
$3.23
Available: Ships in 7-12 days.
Add to View Price
#19 CLAMP B, WIRE (NOT AVAILABLE)
45464-MC4-000
$3.52
Available: Ships in 7-12 days.
Add to View Price
#20 CLAMP, CLUTCH CABLE (NOT AVAILABLE)
45466-MC4-000
$3.52
Available: Ships in 7-12 days.
Add to View Price
#21 PLATE, ELECTRIC BASE (NOT AVAILABLE)
50300-MC4-000
$27.94
Available: Ships in 7-12 days.
Add to View Price
#22 PLATE, CONNECTOR (NOT AVAILABLE)
50301-MC4-000
$4.65
Available: Ships in 7-12 days.
Add to View Price
#23 COLLAR, DISTANCE
66181-706-000
$0.69
Available: Ships in 7-12 days.
Add to View Price
#24 SCREW, PAN (5X16)
93500-05016-0A
$0.77
Available: Ships in 7-12 days.
Add to View Price
#25 WASHER, PLAIN (6MM)
94103-06000
$0.83
In Stock: Ready to ship.
Add to View Price
#26 BAND B1, WIRE
32161-404-000
$2.13
Available: Ships in 7-12 days.
Add to View Price
#26 BAND B1, CABLE
95014-61100
Superseded by 32161-404-000
$2.13
Unavailable
#27 BOLT, FLANGE (6X12)
95700-06012-00
Superseded by 95701-06012-00
$1.38
In Stock: Ready to ship.
Add to View Price
#27 BOLT, FLANGE (6X12)
95701-06012-00
$1.38
Unavailable
#28 BOLT, FLANGE (6X16)
95700-06016-00
Superseded by 95701-06016-00
$1.38
Available: Ships in 7-12 days.
Add to View Price
#28 BOLT, FLANGE (6X16)
95701-06016-00
$1.38
Unavailable
#29 BOLT, FLANGE (6X28)
95700-06028-00
$1.55
Available: Ships in 7-12 days.
Add to View Price
#29 BOLT, FLANGE (6X28)
95701-06028-00
$1.55
Available: Ships in 7-12 days.
Add to View Price
#30 FUSE A (10A)
98200-11000
$0.78
In Stock: Ready to ship.
Add to View Price
