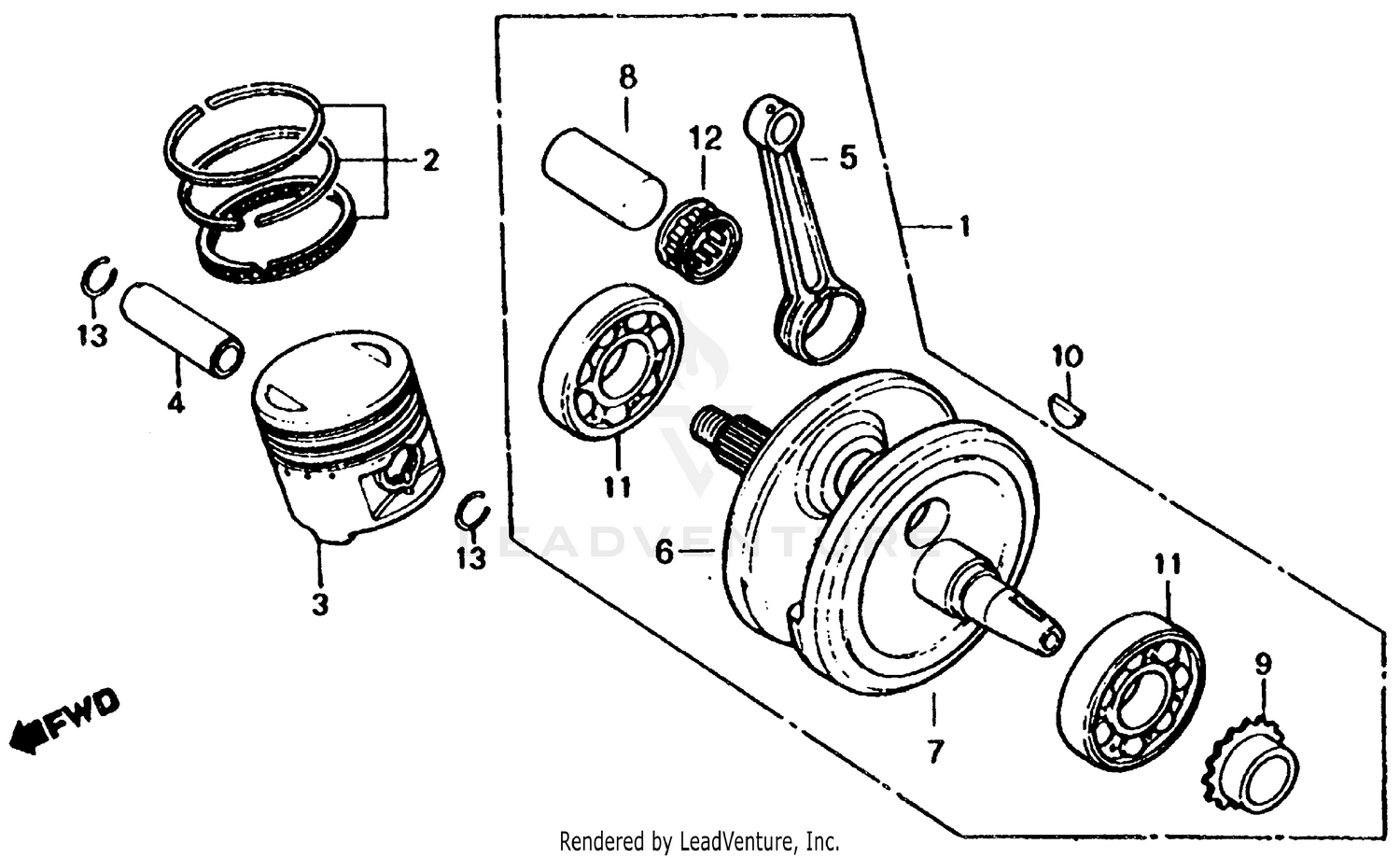

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-427-020
Superseded by 13000-427-305
|
$497.28 | ||
|
Unavailable |
|||
|
#1
CRANKSHAFT
13000-427-030
Superseded by 13000-427-305
|
$497.28 | ||
|
Unavailable |
|||
|
#1
CRANKSHAFT
13000-427-040
Superseded by 13000-427-305
|
$497.28 | ||
|
Unavailable |
|||
|
#1
CRANKSHAFT
13000-427-305
|
$497.28 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD)
13011-427-000
|
$48.23 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13021-427-000
|
$46.82 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50)
13031-427-000
|
$41.25 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (0.75)
13041-427-000
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (1.00)
13051-427-000
|
$42.49 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13101-427-003
|
$73.83 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25)
13102-427-000
|
$73.83 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50)
13103-427-000
|
$73.83 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75)
13104-427-000
|
$68.91 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-427-000
|
$55.58 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-425-000
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, CONNECTING
13202-427-300
|
$122.38 | ||
|
Unavailable |
|||
|
#6
CRANKSHAFT, R.
13311-427-300
Superseded by 13311-446-305
|
$212.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
CRANKSHAFT, R.
13311-446-305
|
$212.70 | ||
|
Unavailable |
|||
|
#6
CRANKSHAFT, R.
13311-446-770
Superseded by 13311-446-305
|
$212.70 | ||
|
Unavailable |
|||
|
#7
CRANKSHAFT, L.
13300-KF9-318
|
$206.99 | ||
|
Unavailable |
|||
|
#8
PIN, CRANK
13381-HF1-670
|
$52.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CRANK
13381-383-300
Superseded by 13381-HF1-670
|
$52.17 | ||
|
Unavailable |
|||
|
#9
SPROCKET, TIMING (16T)
14311-107-000
Superseded by 14311-958-000
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPROCKET, TIMING (16T)
14311-958-000
|
$49.75 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90701-HB6-000
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#10
KEY, WOODRUFF (25X14X4)
90741-003-010
Superseded by 90701-HB6-010
|
$4.76 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-KY7-003
Superseded by 91009-HC0-003
|
$38.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-003
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-004
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-008
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-013
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-014
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91001-383-018
Superseded by 91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#11
BEARING, RADIAL BALL (63/28)
91009-HC0-003
|
$38.09 | ||
|
Unavailable |
|||
|
#12
BEARING A, CONNECTING ROD (RED) (TOYO)
91002-440-003
|
$31.01 | ||
|
Unavailable |
|||
|
#12
BEARING B, CONNECTING ROD (BLUE) (TOYO)
91003-440-003
|
$31.01 | ||
|
Unavailable |
|||
|
#12
BEARING C, CONNECTING ROD (WHITE) (TOYO)
91004-440-003
|
$31.01 | ||
|
Unavailable |
|||
|
#13
CLIP, PISTON PIN (15MM)
94601-15000
|
$1.16 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
