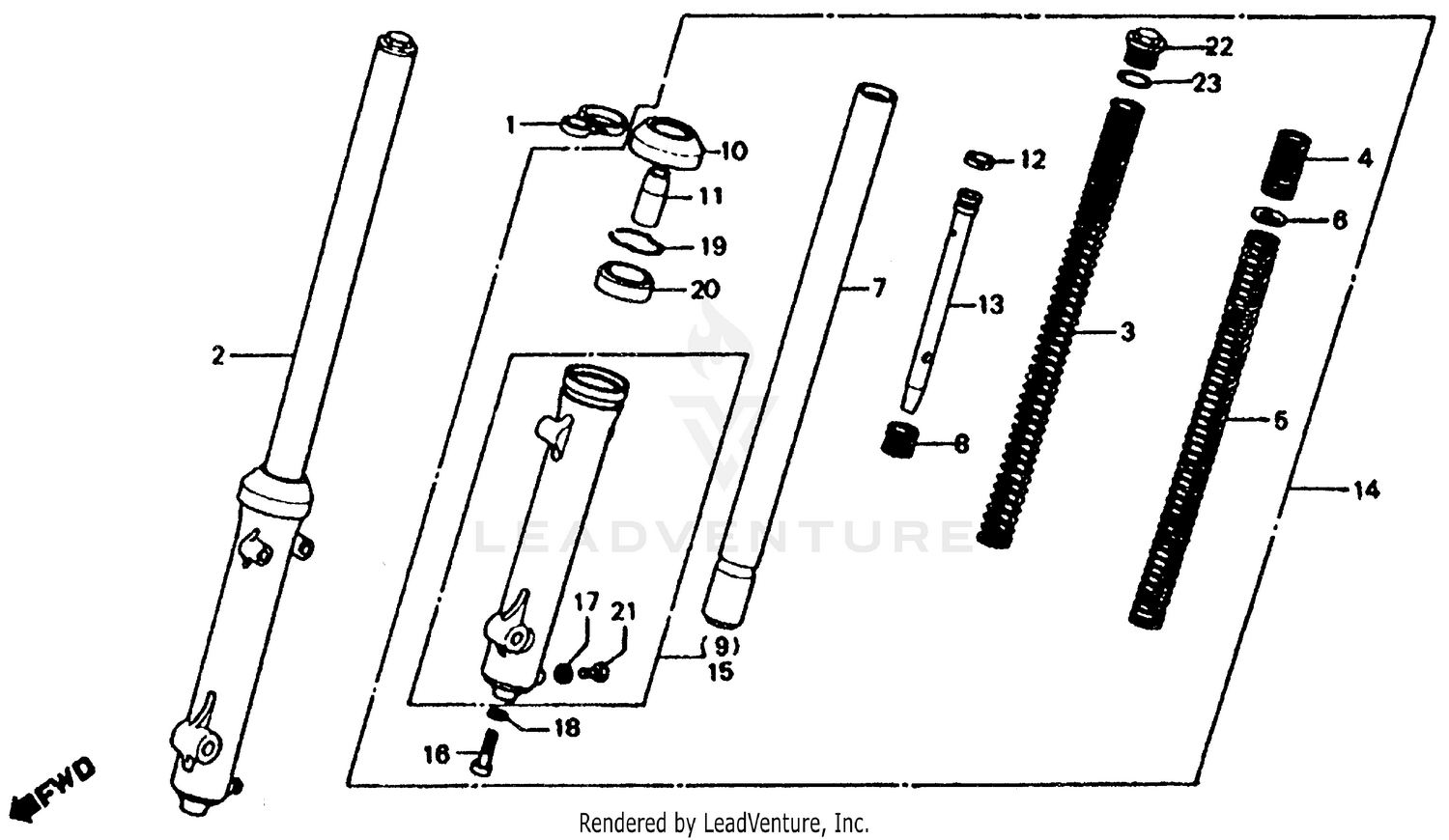

Front Shock Absorber 79-81 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, BRAKE CABLE (NOT AVAILABLE)
45468-399-620
|
$7.44 | ||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER, R. FR. (NOT AVAILABLE)
51400-437-003
|
$470.78 | ||
|
Unavailable |
|||
|
#3
SPRING, FR. FORK (NOT AVAILABLE)
51401-437-003
|
$33.06 | ||
|
Unavailable |
|||
|
#7
PIPE, FR. FORK
51410-437-003
|
$240.16 | ||
|
Unavailable |
|||
|
#8
SPRING, FR. FORK REBOUND
51412-331-770
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE, R. (LOWER) (NOT AVAILABLE) CASE, R. (LOWER) (SHOWA)
51421-437-003
|
$170.29 | ||
|
Unavailable |
|||
|
#10
DUST SEAL (SHOWA)
51425-437-003
Superseded by 91254-437-003
|
$17.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUST SEAL (SHOWA)
91254-437-003
|
$17.33 | ||
|
Unavailable |
|||
|
#11
PIECE, OIL LOCKING
51432-388-003
Superseded by 51432-447-731
|
$33.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIECE, OIL LOCKING
51432-447-731
|
$33.22 | ||
|
Unavailable |
|||
|
#12
RING, PISTON
51437-373-781
|
$4.11 | ||
|
Unavailable |
|||
|
#13
PIPE, SEAT
51440-437-003
|
$48.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE)
51500-437-003
|
$470.78 | ||
|
Unavailable |
|||
|
#15
CASE, L. (LOWER) (NOT AVAILABLE) CASE, L. (LOWER) (SHOWA)
51521-437-003
|
$170.29 | ||
|
Unavailable |
|||
|
#16
BOLT, SOCKET (8MM) (SHOWA)
90116-283-010
Superseded by 90116-383-721
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SOCKET (8MM) (SHOWA)
90116-383-721
|
$6.44 | ||
|
Unavailable |
|||
|
#17
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, SPECIAL (8MM)
90544-283-000
|
$3.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
RING, OIL SEAL STOP
90601-354-000
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SET, FR. OIL FILTER
51495-331-405
|
$23.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL SET (FR FORK)
91255-331-671
Superseded by 51495-331-405
|
$23.93 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X8)
92000-06008
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEX. (6X8)
92000-06008-0A
Superseded by 92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. (6X8)
92101-06008-0A
|
$1.43 | ||
|
Unavailable |
|||
|
#22
BOLT D1, FORK
94605-27101
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (23X2.4)
94608-30000
|
$1.36 | ||
|
Unavailable |
|||
