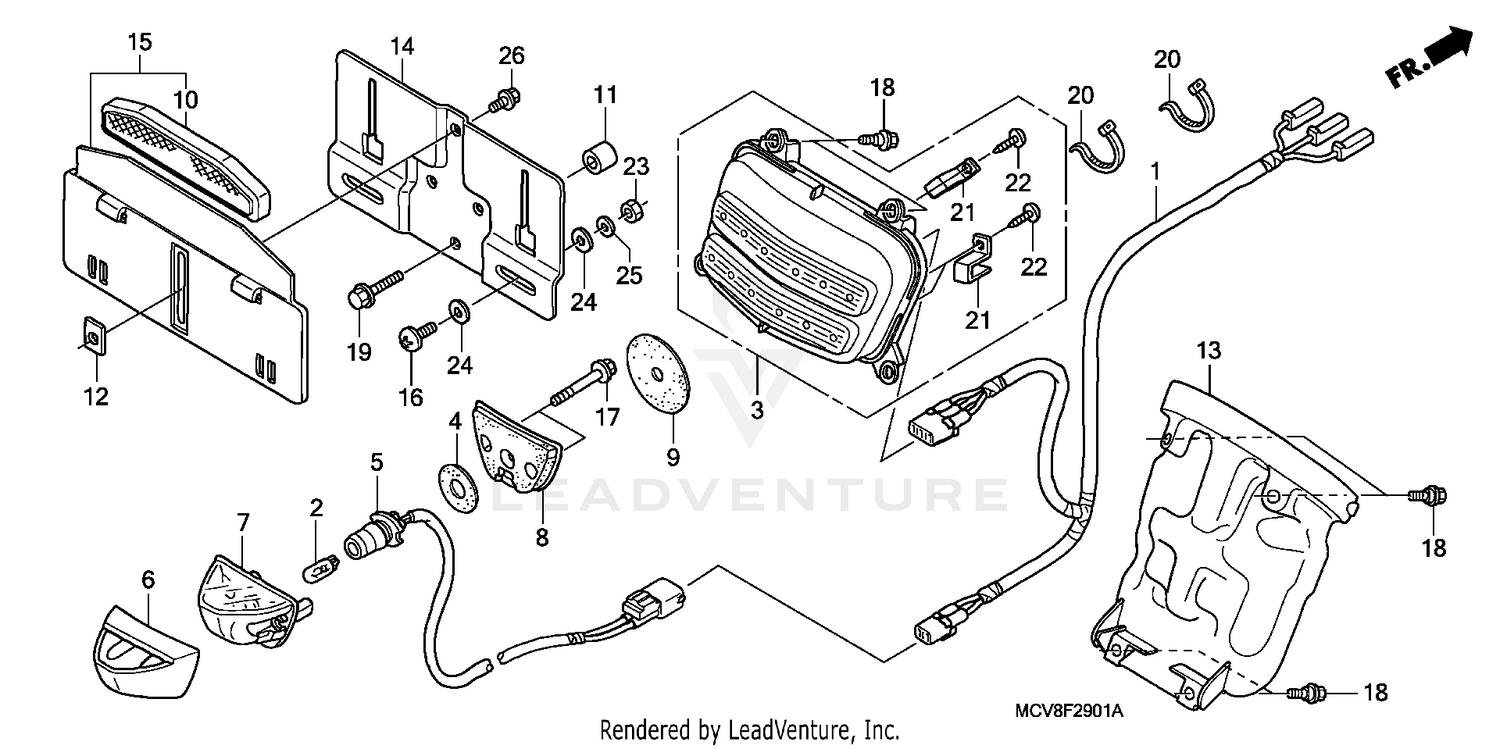

Taillight (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SUB-HARNESS, RR.
32102-MCV-N10
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
TAILLIGHT ASSY., & STOP
33701-MCV-N11
|
$246.64 | ||
|
Unavailable |
|||
|
#4
RUBBER A, LICENSE LIGHT
33722-MEC-670
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET, LICENSE LIGHT
33723-MCV-N10
|
$24.50 | ||
|
Unavailable |
|||
|
#6
LIGHT COVER, LICENSE
33725-MEC-A00
|
$70.75 | ||
|
Unavailable |
|||
|
#7
LENS, LICENSE LIGHT
33727-MEC-A00
|
$34.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, LICENSE LIGHT
33730-MEC-010
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER B, LICENSE LIGHT
33733-MEC-670
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
REFLECTOR, REFLEX
33743-MEC-860
|
$52.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR B, ROLLER
40559-197-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER (INNER)
77360-MCV-N10
|
$25.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, NUMBER PLATE
84701-MCV-N11
|
$33.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET B ASSY., NUMBER PLATE
84705-MCV-N10
|
$38.67 | ||
|
Unavailable |
|||
|
#16
SCREW, SPECIAL (6X14)
90110-GW0-000
Superseded by 90110-GAH-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (5X35)
90114-MEC-000
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X25)
90122-369-000
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, WIRE HARNESS
90652-MB0-000
|
$3.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, SUB-HARNESS
91410-MCV-N10
|
$4.12 | ||
|
Unavailable |
|||
|
#22
SCREW, TAPPING (5X8)
93901-25010
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X8)
96001-06008-07
|
$1.07 | ||
|
Unavailable |
|||
