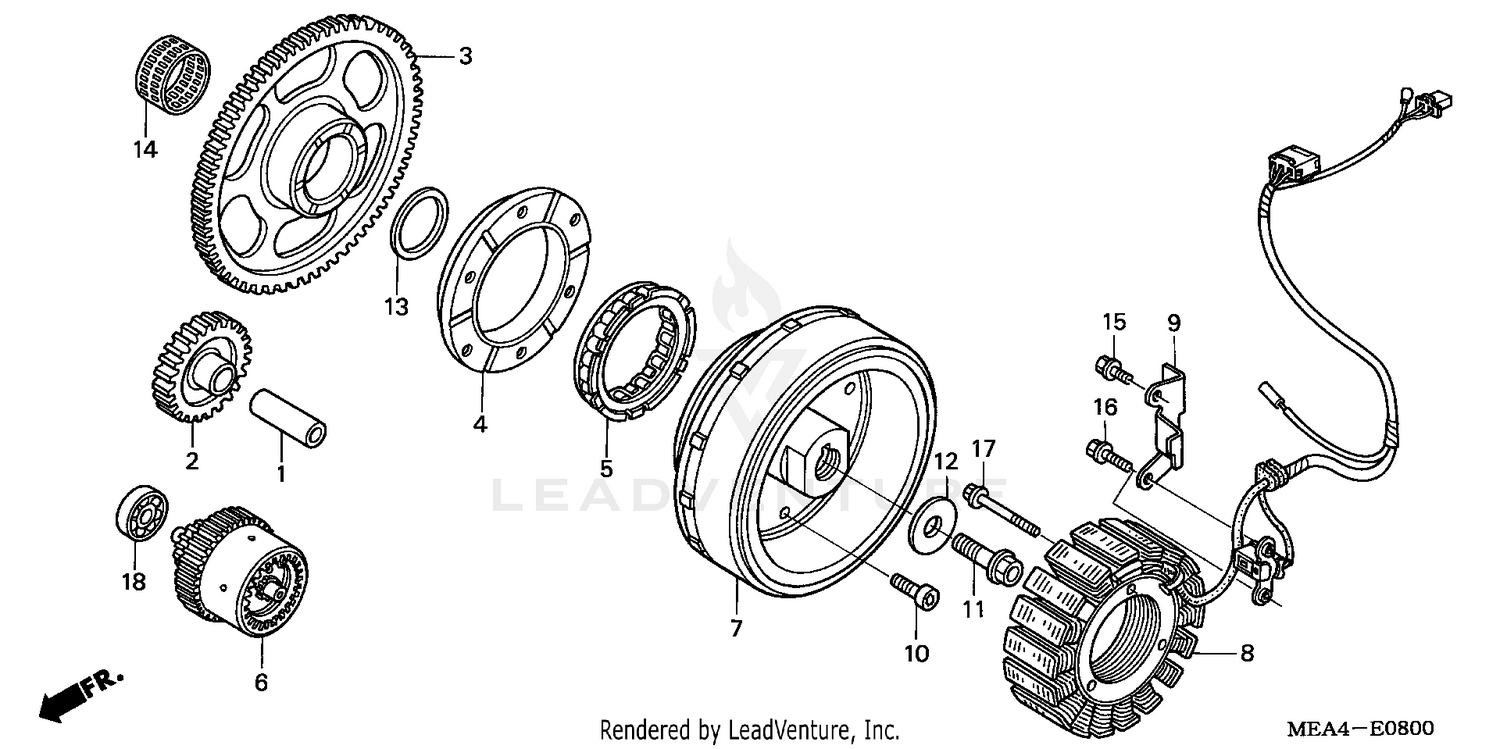

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIN, PISTON
13111-KE6-830
|
$16.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, STARTER REDUCTION (27T)
28101-MCH-000
|
$83.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, STARTING DRIVEN (76T)
28110-MCH-000
|
$195.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLUTCH OUTER, STARTING
28121-MAH-000
|
$171.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLUTCH, ONE-WAY
28126-MK5-004
|
$115.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
LIMITER ASSY., TORQUE
28140-MCH-000
|
$383.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLYWHEEL
31110-MEA-671
|
$565.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
STATOR
31120-MEA-671
|
$421.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, ALTERNATOR WIRE
32961-MEA-670
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SOCKET (8MM)
90010-MCH-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (12X45)
90023-MBT-010
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (12.2X40X5)
90402-MBA-A40
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (34MM)
90451-383-000
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, NEEDLE (34X44X24)
91021-MCH-003
|
$35.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X20)
96001-06020-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X45)
96001-06045-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, RADIAL BALL (6000)
96100-60000-00
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
