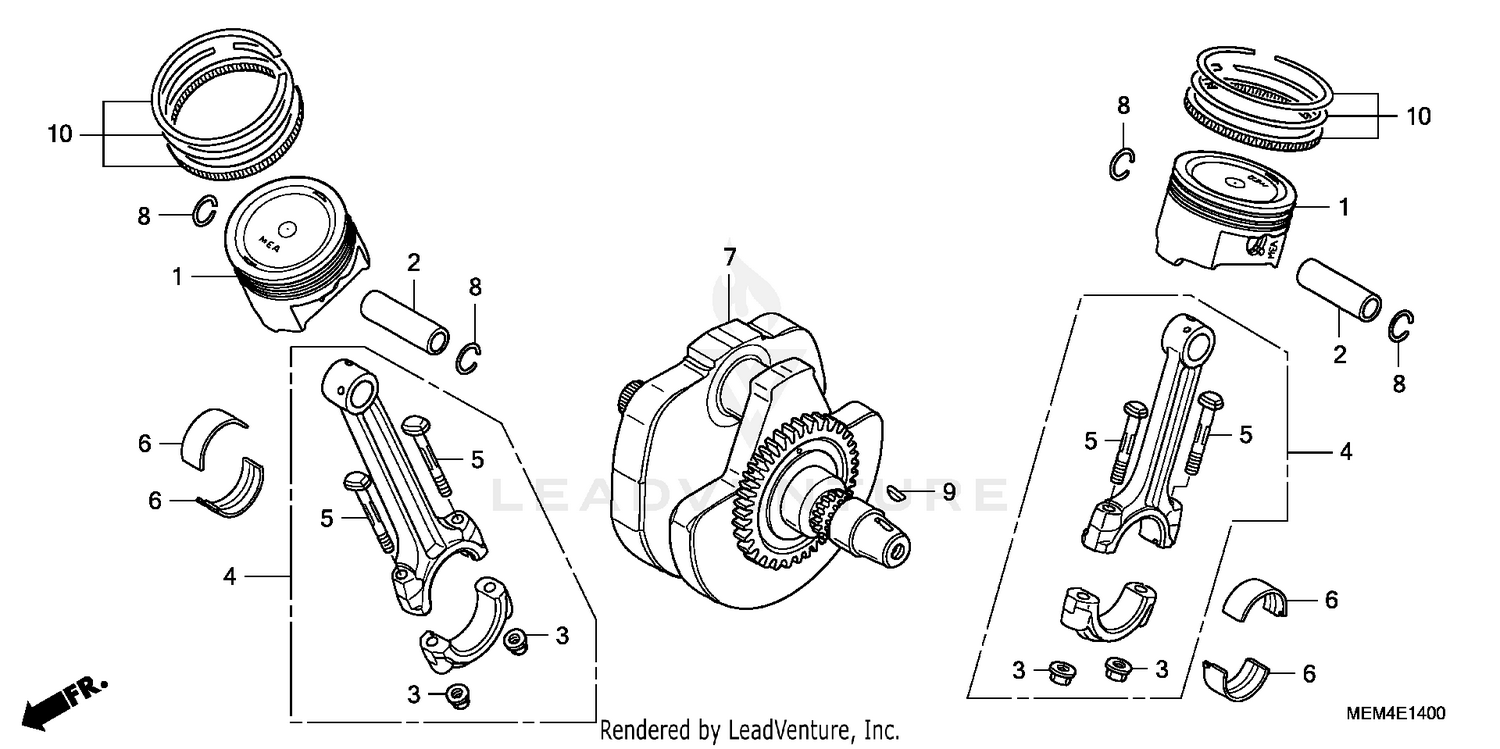

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON (STD)
13101-MEA-670
|
$137.36 | ||
|
Available to order. Add to View Price |
|||
|
#1
PISTON (0.25)
13102-MEA-670
|
$129.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, PISTON
13111-MEA-670
|
$22.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CONNECTING ROD
13205-MG8-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD ASSY., CONNECTING (C)
13230-MEA-670
|
$328.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD ASSY., CONNECTING (D)
13240-MEA-670
|
$313.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD ASSY., CONNECTING (E)
13250-MEA-670
|
$313.98 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, CONNECTING ROD
13213-MG8-000
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING A, CONNECTING ROD (GREEN)
13218-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING B, CONNECTING ROD (YELLOW)
13219-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING C, CONNECTING ROD (PINK)
13220-MG8-003
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
CRANKSHAFT
13310-MEA-740
|
$877.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, PISTON PIN (1.2X20)
90601-KA5-000
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, WOODRUFF (25X14)
90741-413-000
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON (STD)
13011-MEA-670
|
$62.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON (0.25)
13021-MEA-670
|
$62.95 | ||
|
Available to order. Add to View Price |
|||
