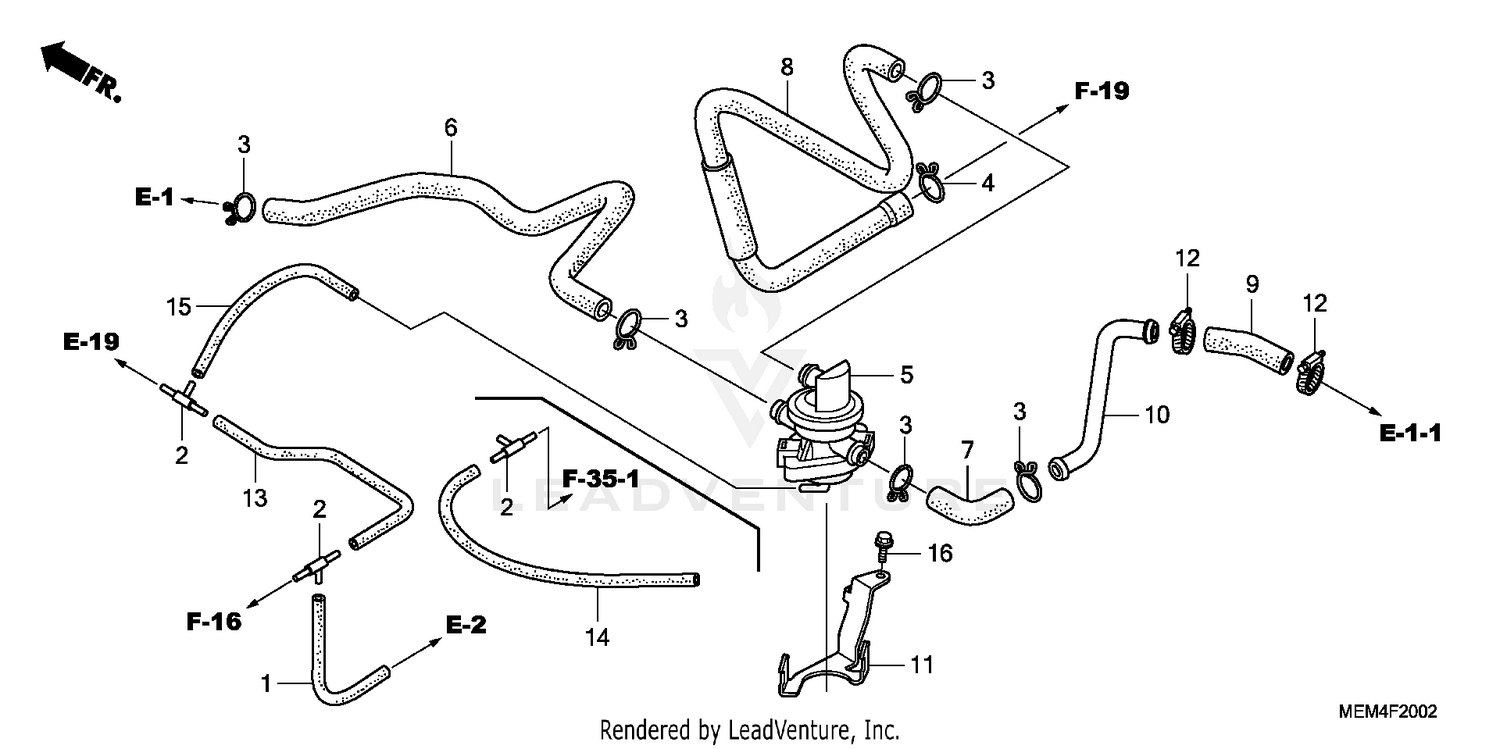

Air Injection Control Valve ('08-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE A, VACUUM
16956-MEM-670
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT A, VACUUM TUBE
17201-MG9-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, BREATHER TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, SUB-TANK HOSE
17724-102-700
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE ASSY., AIR INJECTION CONTROL
18650-MEG-013
|
$70.99 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., AIR INJECTION CONTROL (HIGH ALTITUDE)
18650-MEG-802
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
TUBE (AICV-FR. HEAD)
18651-MEA-A50
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE B (AI)
18652-MEA-670
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE (AICV-AIR CLEANER)
18653-MEA-A50
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE (AI PIPE-RR. HEAD)
18654-MEA-A50
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE (AI)
18655-MEA-A50
|
$30.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
STAY, AIR INJECTION CONTROL VALVE
18660-MEA-A50
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, WATER HOSE (25MM)
19504-KY1-003
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, WATER HOSE (25MM)
19507-KA3-830
Superseded by 19504-KY1-003
|
$12.47 | ||
|
Unavailable |
|||
|
#13
BULK HOSE, VACUUM (3.5X1000) (3.5X55)
95005-35001-20M
|
$11.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BULK HOSE, VACUUM (3.5X1000) (3.5X200)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X18)
95701-06018-08
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
