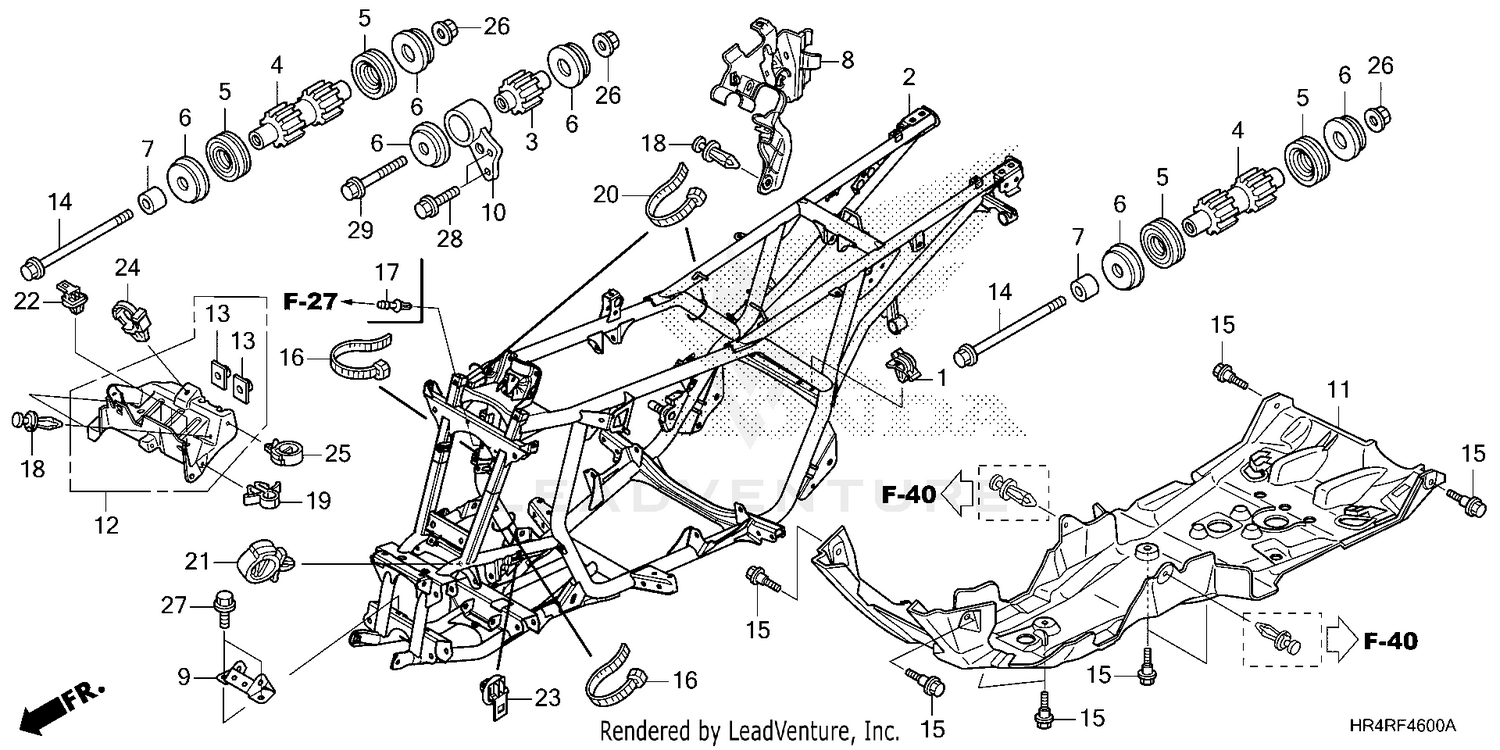

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME
50100-HR3-HA0
|
$1,465.16 | ||
|
Unavailable |
|||
|
#3
RUBBER, ENGINE HEAD MOUNTING
50201-HP5-600
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, ENGINE MOUNTING (LOWER)
50202-HP0-A50
|
$30.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DUST SEAL, ENGINE MOUNTING
50203-HM7-003
|
$24.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER C, MOUNTING
50204-HP5-600
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, ENGINE HANGER
50304-HN8-000
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, CONNECTOR (SIDE)
50340-HR3-A20
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FR. GEAR CASE
50350-HR3-A20
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, HEAD HANGER
50351-HP5-600
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD, ENGINE *NH1* (BLACK)
50360-HR3-A20ZA
|
$53.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, CONNECTOR (FR)
50370-HR3-A20
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SPECIAL (6X7)
61304-958-003
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOLT, ENGINE HANGER (10X148)
90103-147-000
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6MM)
90111-147-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, WIRE (165MM) (BLACK)
90651-KV6-003
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BREATHER TUBE
90652-HF7-003
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLIP, WIRE HARNESS (6MM) (WHITE)
90654-SA4-003
|
$0.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)
90679-SG9-E01
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, WIRE HARNESS
90684-ZA0-601
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP, CONNECTOR (BROWN)
91535-TF0-003
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, WIRE HARNESS (BLACK)
91556-SK7-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, WIRE HARNESS *NH1L* (BLACK)
91558-SD5-003
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE (10MM)
94050-10000
|
$1.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (8X16)
95701-08016-08
|
$1.83 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE (8X22)
95701-08022-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (10X60)
95701-10060-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
