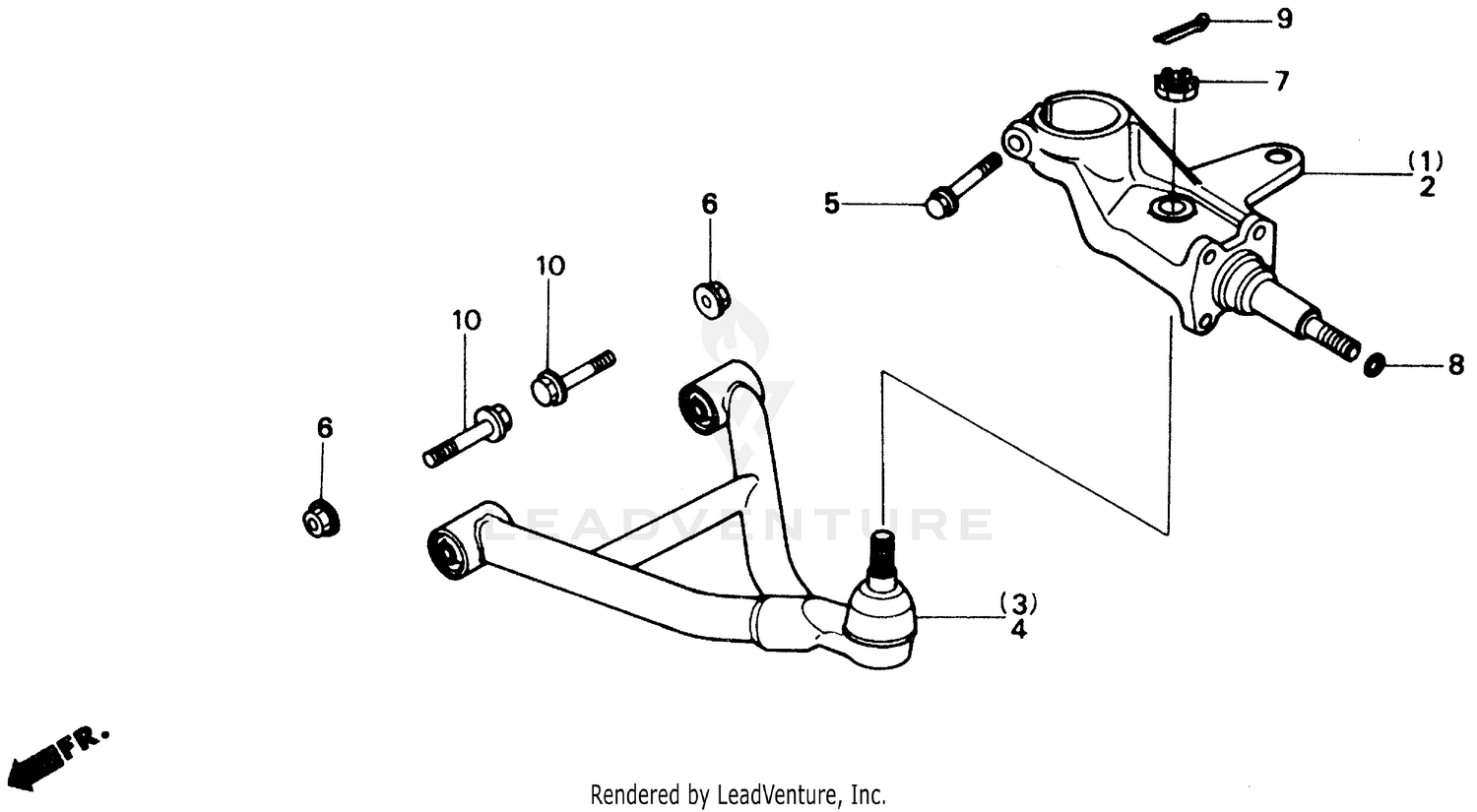

Front Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
KNUCKLE, R. (NOT AVAILABLE)
51211-HC4-000
|
$122.14 | ||
|
Unavailable |
|||
|
#2
KNUCKLE, L. (NOT AVAILABLE)
51221-HC4-000
|
$123.61 | ||
|
Unavailable |
|||
|
#3
ARM ASSY., R. FR. (LOWER) (NOT AVAILABLE)
51350-HC4-010
|
$329.20 | ||
|
Unavailable |
|||
|
#4
ARM ASSY., L. FR. (LOWER) (NOT AVAILABLE)
51360-HC4-010
|
$422.82 | ||
|
Unavailable |
|||
|
#5
BOLT, FLANGE (10X39)
90153-HC4-000
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, CASTLE (12MM)
90310-HB9-000
|
$7.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (11.3X1.3) (ARAI) (NOT AVAILABLE)
91352-KG8-831
|
$1.68 | ||
|
Unavailable |
|||
|
#9
PIN, COTTER (3.0X45)
94201-30200
Superseded by 94201-30450
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, COTTER (3.0X45)
94201-30250
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#9
PIN, COTTER (3.0X45)
94201-30280
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#9
PIN, COTTER (3.0X45)
94201-30300
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#9
PIN, COTTER (3.0X45)
94201-30400
Superseded by 94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#9
PIN, SPLIT (3.0X45)
94201-30450
|
$1.08 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (10X62)
90151-HC5-000
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X62)
95801-10065-00
Superseded by 90151-HC5-000
|
$9.74 | ||
|
Unavailable |
|||
