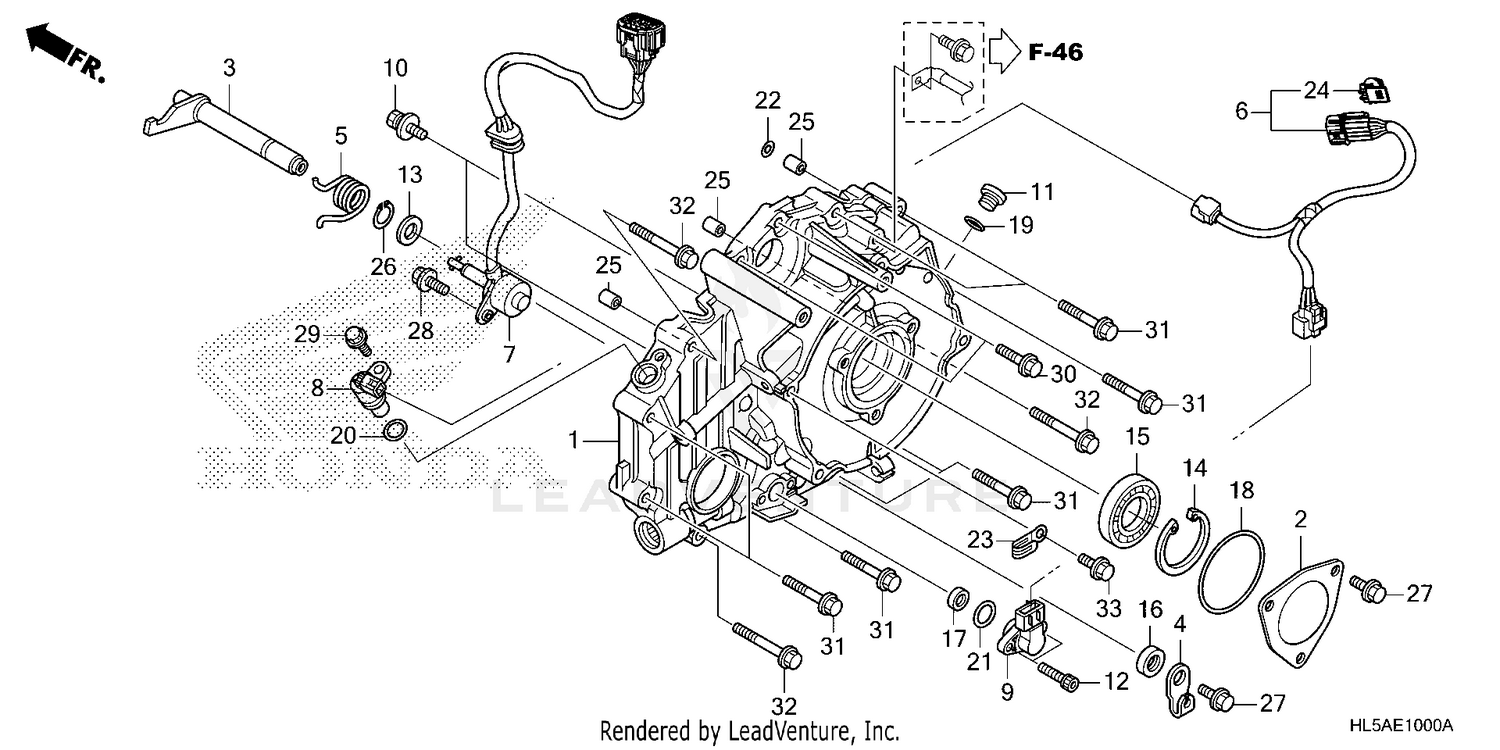

Rear Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. CRANKCASE
11340-HL5-A40
|
$224.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, RR. COVER
11342-HP5-600
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT A, REVERSE STOPPER
24860-HP5-000
|
$25.18 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, REVERSE STOPPER
24865-HP5-600
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, REVERSE STOPPER
24867-HP5-600
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUB-HARNESS, ENGINE (NOT AVAILABLE)
32101-HL5-K01
|
$68.33 | ||
|
Unavailable |
|||
|
#7
SWITCH ASSY., CHANGE
35759-HR3-HA1
|
$146.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., SPEED (TDK-EPC)
37700-KZR-601
|
$53.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR ASSY., ANGLE
38800-HR3-A21
|
$31.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT-WASHER (6X12) (Honda Code 2551760)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP (14MM)
90084-KY2-000
|
$19.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SOCKET (5X20)
90116-HP5-600
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (12MM)
90452-166-600
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP (INNER) (42MM)
90602-GFZ-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, RADIAL BALL (6806)
91015-HR0-F21
|
$21.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL (12X22X5)
91201-965-000
|
$5.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL SEAL (8X16X6)
91208-MS2-611
Superseded by 91254-792-003
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (8X16X6)
91208-689-005
Superseded by 91254-792-003
|
$3.42 | ||
|
Unavailable |
|||
|
#17
OIL SEAL (8X16X6)
91254-792-003
|
$3.42 | ||
|
Unavailable |
|||
|
#18
O-RING (58X3)
91301-HR3-A40
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING, ANGLE SENSOR
91308-HN0-A10
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING (7.8X1.9) (NOK)
91313-MN5-004
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP (2X70)
91413-679-000
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)
95701-06012-00
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
