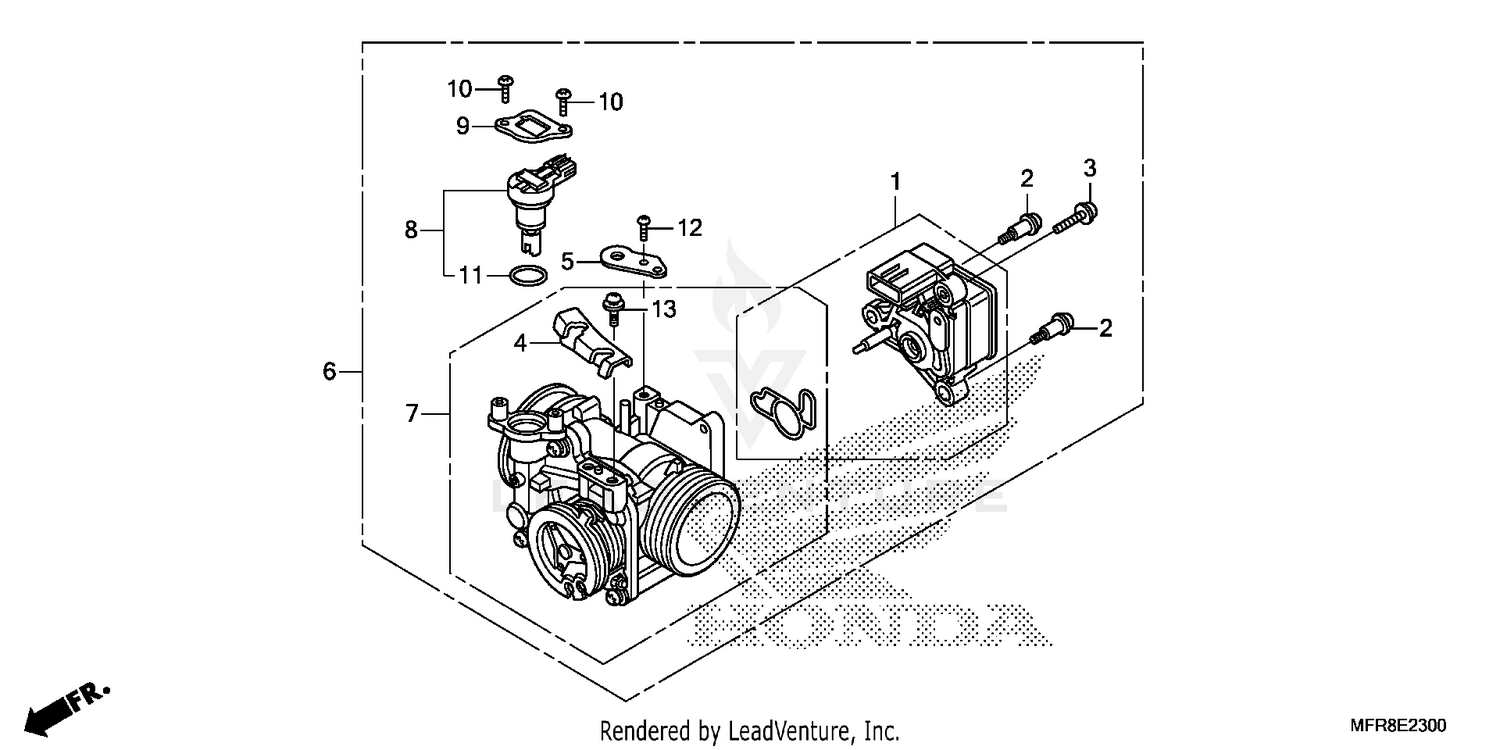

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SENSOR SET
16060-MFR-671
|
$204.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TORX (5X8.7)
16081-KPH-701
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TORX (5X17)
16082-KPH-701
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, WIRE
16169-MFR-671
|
$19.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, HARNESS CLAMP
16196-MFR-671
|
$5.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BODY ASSY., THROTTLE (GQ9HA A)
16400-MFR-671
|
$538.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY SET
16410-MFR-671
|
$298.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, IDLE AIR CONTROL
16430-MFE-641
|
$138.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, IDLE AIR CONTROL VALVE
16432-MFE-641
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TORX
16433-HN8-A61
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (17.8X1.9)
16435-HN8-A61
|
$10.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (5X10)
93500-05010-0H
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN (5X10)
93500-05010-08
Superseded by 93500-05010-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN (5X10)
93500-05010-1H
Superseded by 93500-05010-0H
|
$0.95 | ||
|
Unavailable |
|||
|
#13
SCREW-WASHER (5X12) (Honda Code 0368621)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-WASHER (5X12)
93892-05012-18
Superseded by 93892-05012-08
|
$1.20 | ||
|
Unavailable |
|||
