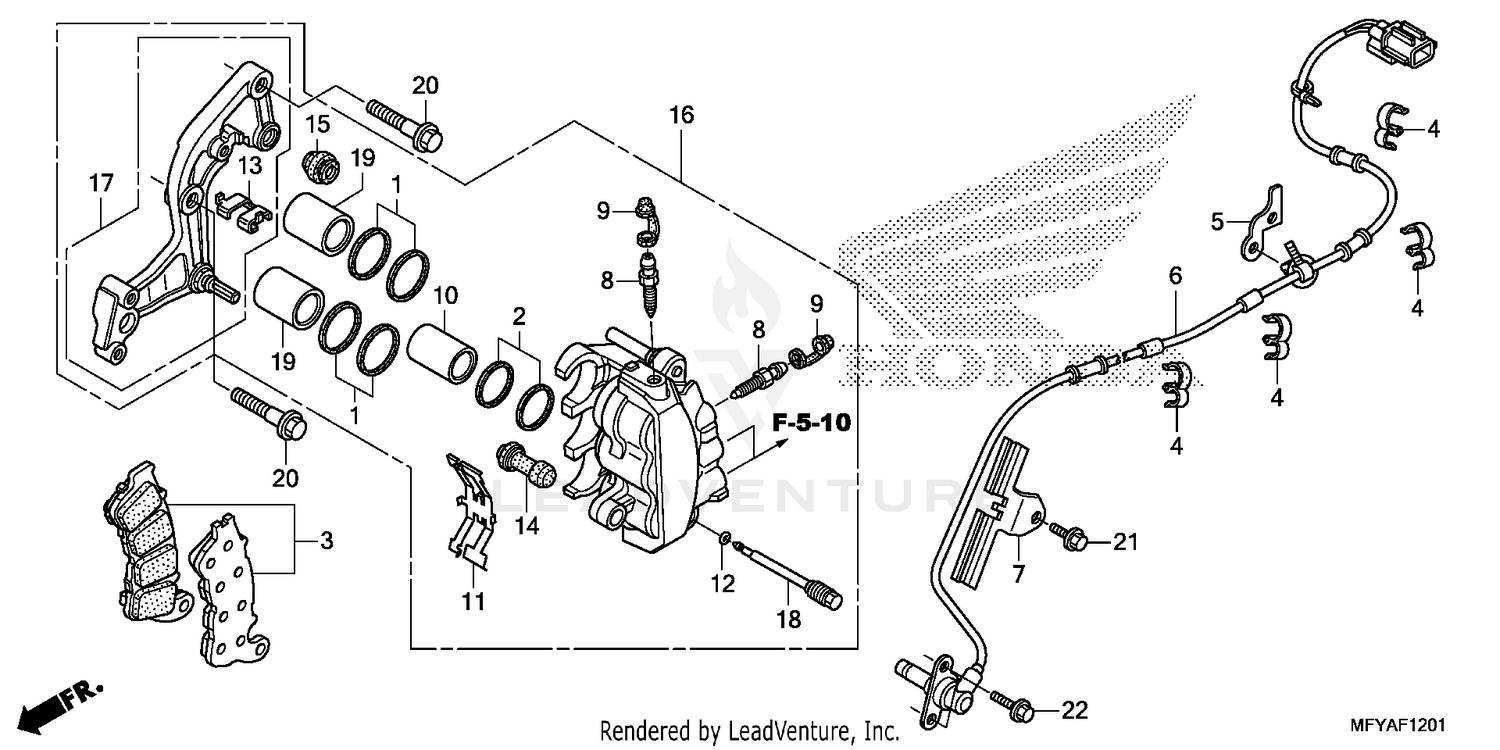

Front Brake Caliper (abs) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (RIGHT SIDE, QTY-1)
06431-MA3-405
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)
06451-MZ2-405
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, FR.
06455-MFR-A01
Superseded by 06455-MFR-A02
|
$77.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, PIPE
11152-KS4-003
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, SPEED SENSOR
38515-MFY-A10
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR, FR. WHEEL SPEED
38520-MFY-A11
|
$220.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, SPEED SENSOR WIRE
38521-MFR-A00
|
$12.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON A (22X27)
45107-MAJ-G41
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, PAD
45108-MET-652
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
RETAINER, BRACKET
45112-MET-651
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CALIPER SUB-ASSY., L. FR. (NISSIN)
45150-MFR-A01
|
$618.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET SUB-ASSY., L. FR.
45190-MFR-A01
|
$104.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, HANGER
45215-MBT-D51
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
PISTON B (27X35)
45218-MAJ-G41
|
$44.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X35)
90131-MFR-670
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
