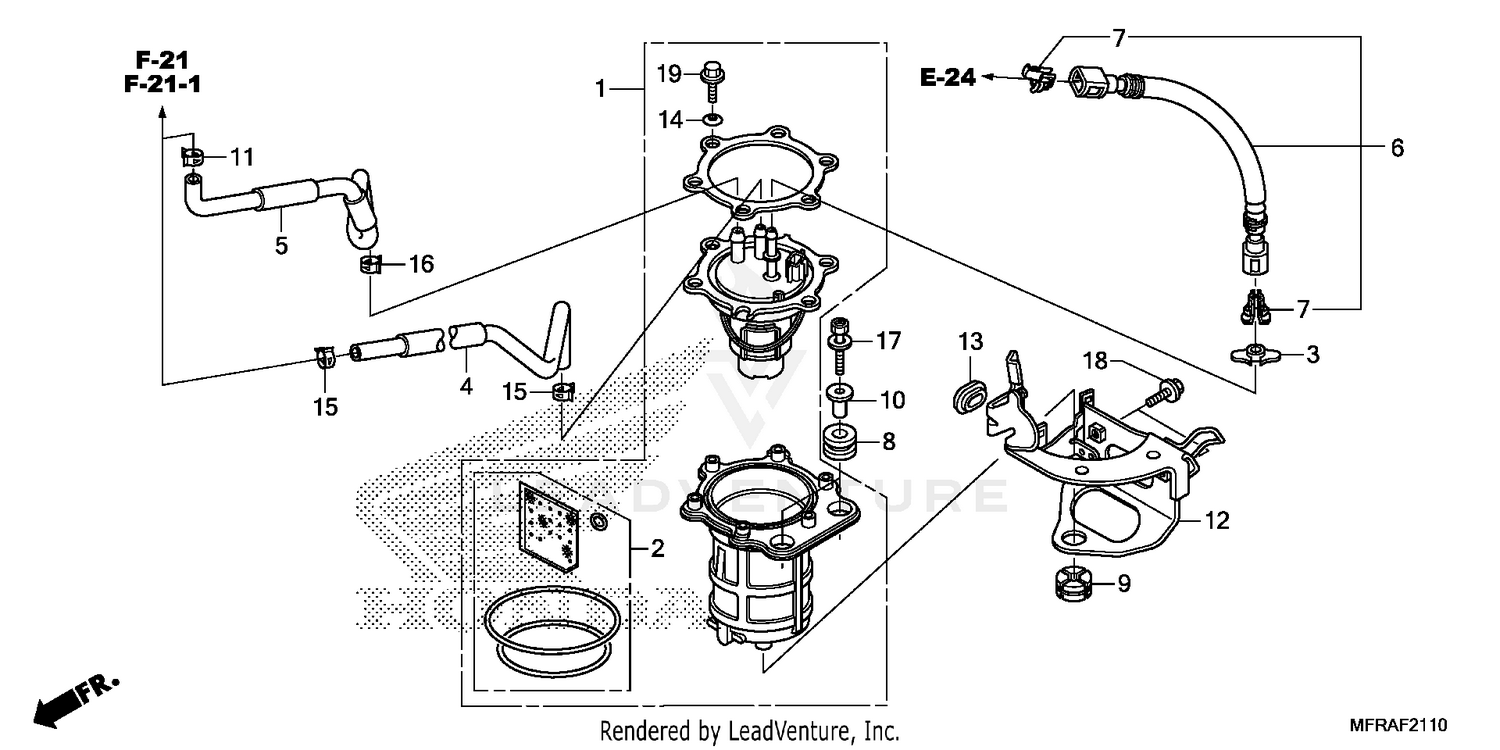

Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL (MSDS)
16700-HN8-601
|
$174.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER SET (INSTALL INST, REFER TO TRX500 (HR0) SM (61HR000) PG.7-17)
16706-HR0-F01
|
$30.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, FUEL JOINT
16719-HN8-A61
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FUEL PUMP BREATHER
16730-MFY-A00
|
$30.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE, FUEL
16951-MFY-A00
|
$41.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, FUEL FEED
17526-MFR-671
|
$79.96 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER (GREEN) (TOKAI)
17711-S0X-A31
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER, MUFFLER
18334-KA3-830
|
$4.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
RUBBER, RADIATOR MOUNTING
19051-KA3-830
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, RADIATOR MOUNTING
19052-MGH-640
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, MASTER CYLINDER OIL HOSE
43514-445-771
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAY, FUEL PUMP
50228-MFR-610
|
$69.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET, AIR CLEANER HOUSING
83551-GE2-000
|
$7.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, CONICAL SPRING
90501-HN8-A60
|
$0.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP, TUBE (12.0)
90651-HN6-A51
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP, CANISTER HOSE
90682-SA0-671
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X30)
93404-06030-00
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X16)
95701-08016-07
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
