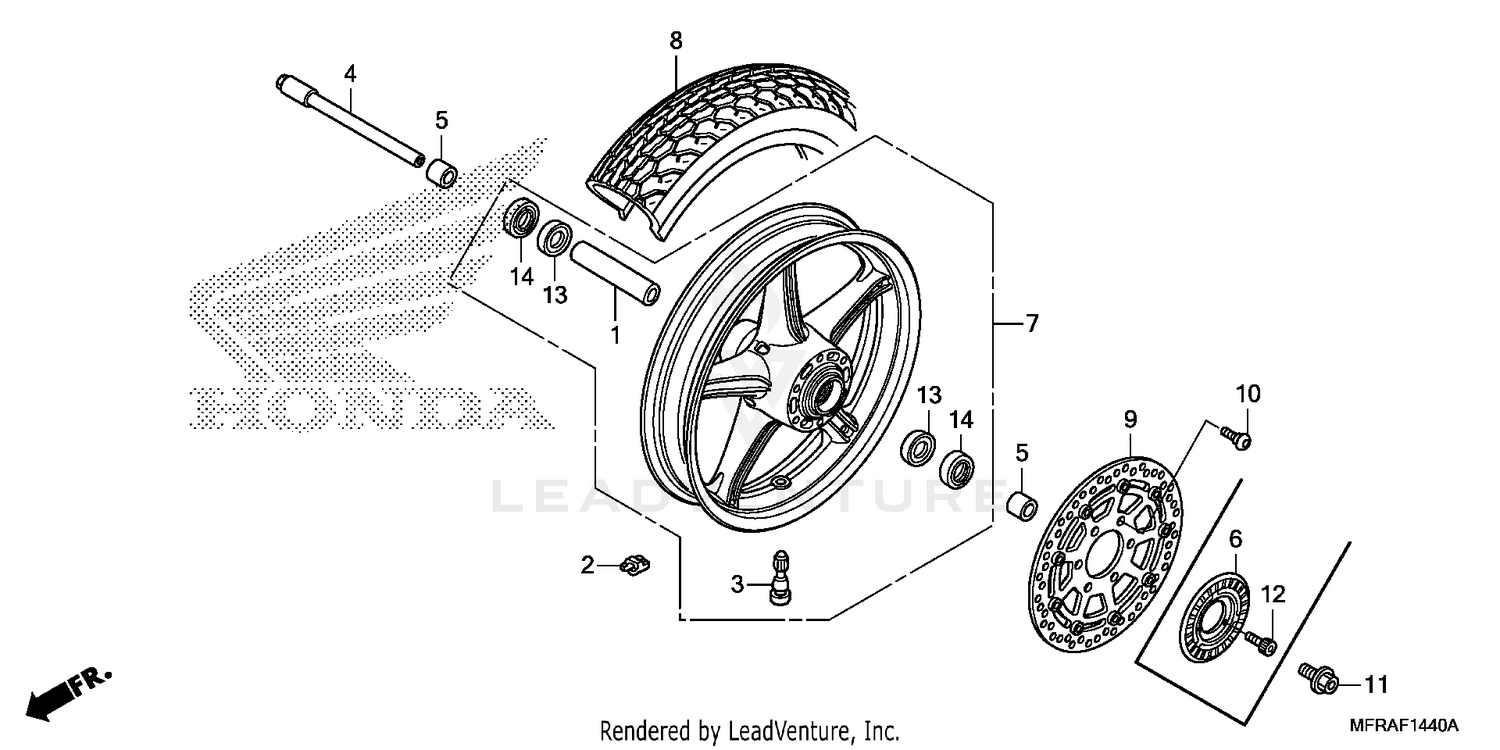

Front Wheel (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, RR. AXLE DISTANCE (FR.)
42620-MW0-010
|
$38.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
WEIGHT, BALANCE (10G)
42704-MER-D00
|
$11.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
WEIGHT, BALANCE (20G)
42705-MER-D00
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
WEIGHT, BALANCE (30G)
42706-MER-D00
|
$19.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (BS) VALVE, RIM (MICHELIN)
42753-ML7-003
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (DUNLOP)
42753-ML7-004
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
AXLE, FR. WHEEL
44301-MFY-A00
|
$115.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. FR. WHEEL SIDE
44311-MCH-A00
|
$15.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, FR. PULSER (RR.)
44515-MFR-A00
|
$178.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR.
44650-MFR-B40
|
$1,076.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
WHEEL SUB-ASSY., FR. (COO)
44650-MFR-P10
|
$1,076.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR. (140/80-17M/C 69H) (BS)
44711-MFY-A01
|
$282.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
TIRE, FR.
44711-MFY-A02
Superseded by 44711-MFY-A04
|
$282.30 | ||
|
Unavailable |
|||
|
#8
TIRE, FR.
44711-MFY-A03
Superseded by 44711-MFY-A04
|
$282.30 | ||
|
Unavailable |
|||
|
#8
TIRE, FR.
44711-MFY-A04
|
$282.30 | ||
|
Unavailable |
|||
|
#9
DISK, FR. BRAKE
45120-MFR-681
|
$730.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, DISK (8X22)
90103-MFY-A00
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FR. AXLE
90105-MBT-610
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, TORX (5X10)
90131-KFK-630
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING, RADIAL BALL (6304UU)
91053-MM5-004
|
$38.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUST SEAL (30X52X7)
91253-442-003
|
$16.91 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
