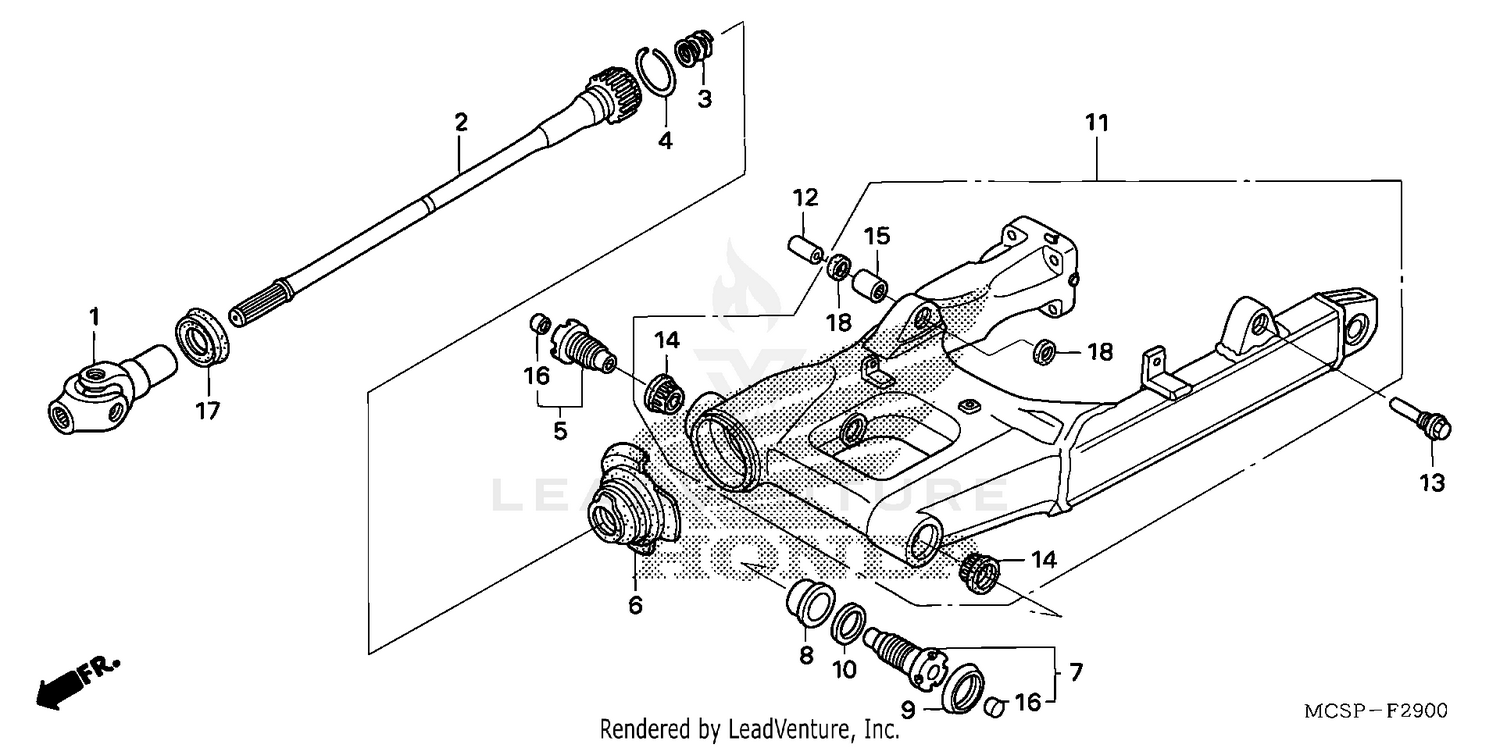

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, YOKE
40200-MCS-G00
|
$260.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, PROPELLER
40201-MCS-G00
|
$228.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, PROPELLER SHAFT
40215-MCS-G00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, STOPPER
40221-MB0-000
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT ASSY., R. PIVOT
52101-MCS-760
|
$79.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, JOINT
52104-MCS-G00
|
$19.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT ASSY., L. PIVOT
52106-MCS-760
|
$111.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, L. PIVOT
52141-MCS-761
|
$79.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, PIVOT
52142-MCS-760
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.50)
52160-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.55)
52161-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.60)
52162-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.65)
52163-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.70)
52164-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.75)
52165-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.80)
52166-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.85)
52167-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.90)
52168-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (0.95)
52169-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.00)
52170-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.05)
52171-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.10)
52172-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.15)
52173-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.20)
52174-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.25)
52175-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.30)
52176-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.35)
52177-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.40)
52178-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.45)
52179-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.50)
52180-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.55)
52181-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.60)
52182-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.65)
52183-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, PIVOT (1.70)
52184-MCS-760
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
SWINGARM SUB-ASSY., RR.
52200-MCS-G00
|
$970.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR, CUSHION CONNECTING ROD
52463-MAL-G00
|
$14.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BRAKE STOPPER
90158-MZ0-000
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING, TAPER ROLLER (25X47X15)
91066-MCA-003
|
$36.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING, NEEDLE (KOYO)
91071-KV3-005
|
$30.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
DUST SEAL (20X7)
91253-MCS-761
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL (27X43X7)
91261-ME9-005
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUST SEAL (17X24X5) (ARAI)
91262-KV3-831
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
