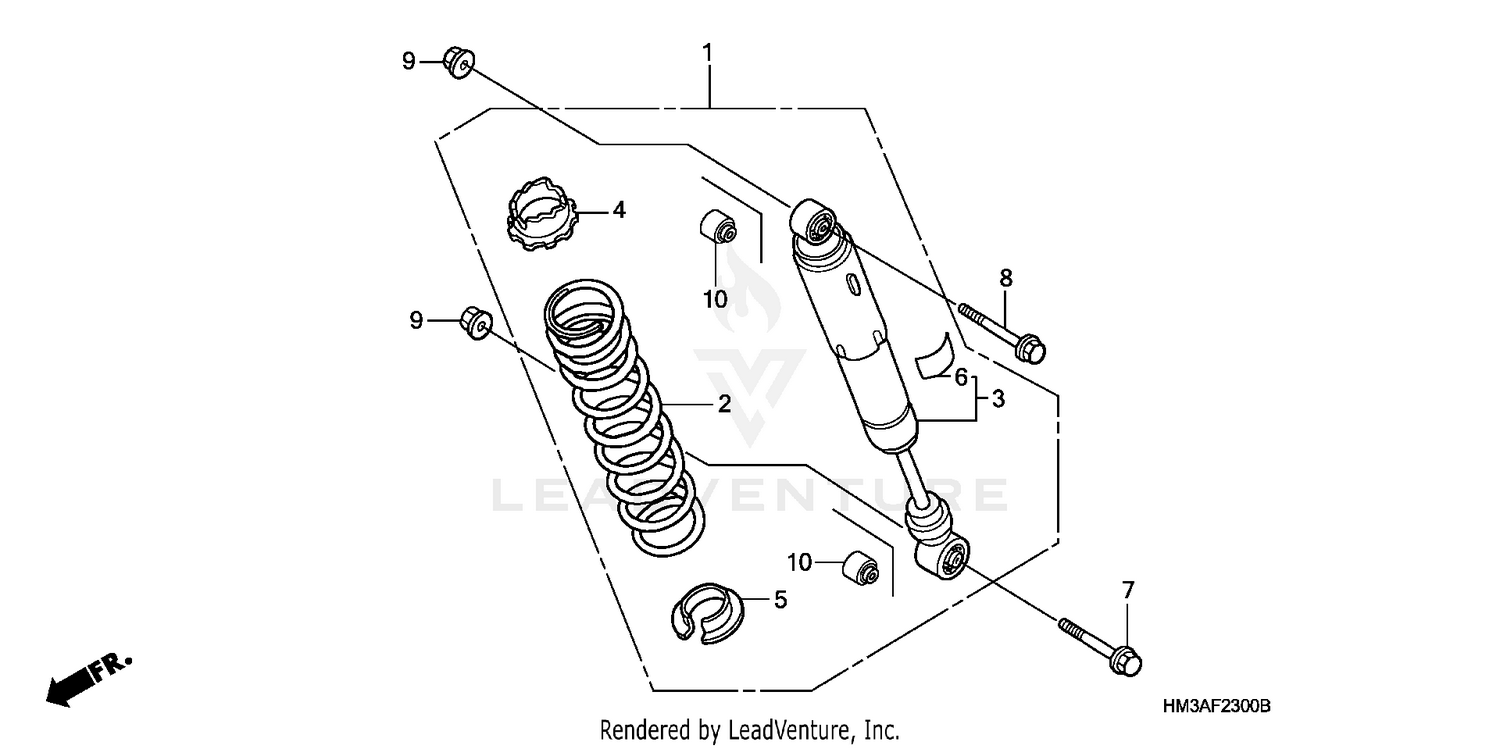

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CUSHION ASSY., RR. (KAYABA)
52400-HM3-004
|
$471.94 | ||
|
Unavailable |
|||
|
#2
SPRING, RR. SHOCK ABSORBER
52401-HM3-004
|
$177.79 | ||
|
Unavailable |
|||
|
#3
DAMPER, RR.
52410-HM3-004
|
$505.25 | ||
|
Unavailable |
|||
|
#4
SEAT, SPRING
52422-HC0-004
|
$66.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, SPRING (LOWER)
52424-HC0-004
|
$27.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
LABEL, RR. DAMPER (ENGLISH)
87516-KV6-610
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (12X58)
90155-HC0-000
|
$15.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, FLANGE (12X66)
90156-HC0-000
|
$16.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, FLANGE (12MM) (FUSERASHI)
90306-KF0-003
|
$4.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
