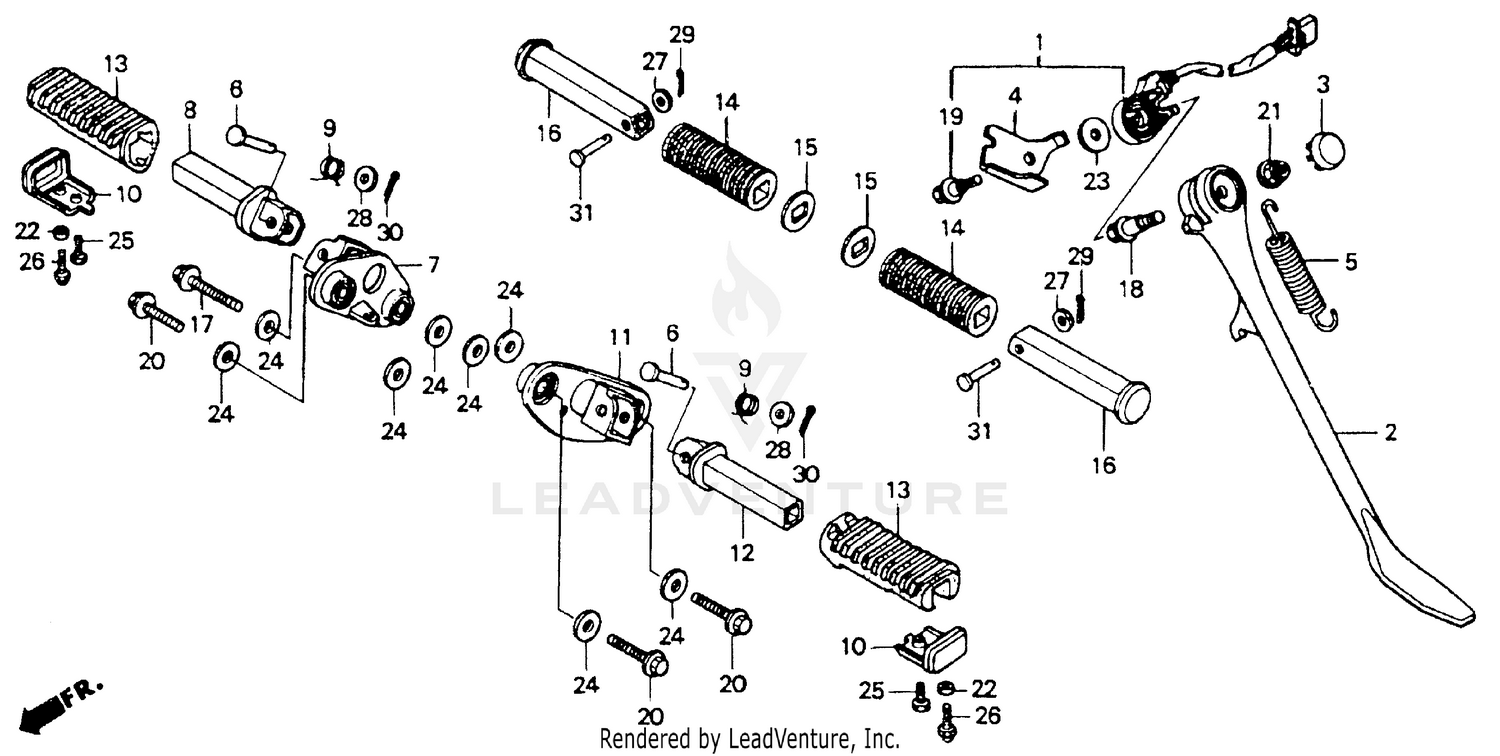

Step 94 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH SET, SIDE STAND
35700-MZ8-305
|
$114.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR, SIDE STAND (NOT AVAILABLE)
50530-MZ8-770
Superseded by 50530-KW9-920
|
$112.87 | ||
|
Unavailable |
|||
|
#3
CAP, STAND PIVOT
50531-MZ8-000
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, SWITCH (SOURCE: VINTAGE PARTS INC.)
50532-MZ8-000
|
$8.03 | ||
|
Unavailable |
|||
|
#5
SPRING, SIDE STAND
50541-MK3-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, STEP BAR JOINT
50603-033-010
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, R. MAIN STEP (NOT AVAILABLE)
50610-MR1-000
|
$115.41 | ||
|
Unavailable |
|||
|
#8
BAR, R. STEP
50612-MR1-000
|
$38.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, STEP RETURN
50617-MB1-700
|
$7.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
STOPPER, STEP RUBBER
50619-MN0-000
|
$21.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, L. MAIN STEP (NOT AVAILABLE)
50620-MR1-000
|
$115.41 | ||
|
Unavailable |
|||
|
#12
BAR, L. STEP
50642-MR1-000
|
$38.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, MAIN STEP
50661-MN0-000
|
$14.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, PILLION FOOTPEG
50710-377-000
Superseded by 50716-371-660
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, PILLION FOOTPEG
50716-371-660
|
$17.24 | ||
|
Unavailable |
|||
|
#15
WASHER, PILLION STEP
50712-413-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, PILLION STEP (COO)
50715-MN0-000
Superseded by 50715-MFR-305
|
$25.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X75)
90102-MN0-000
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SIDE STAND PIVOT
90108-MR5-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (6MM)
90111-MZ8-000
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL FLANGE (10X40)
90101-MAA-000
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL FLANGE (10X40)
90124-KR3-000
Superseded by 90101-MAA-000
|
$13.82 | ||
|
Unavailable |
|||
|
#21
NUT, SIDE STAND
90203-MF9-710
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR (6MM)
90311-GF0-810
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER (6MM)
90406-KV3-780
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLAIN (10.3MM)
90527-230-000
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEX. (6X12)
92000-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, HEX. (6X12)
92000-06012-0A
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X12)
92100-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X12)
92101-06012
Superseded by 92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#25
BOLT, HEX. (6X12)
92101-06012-0A
|
$1.48 | ||
|
Unavailable |
|||
|
#26
BOLT, CAP (6X16)
92500-06016-0A
Superseded by 92501-06016-0A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, CAP (6X16)
92501-06016-0A
|
$3.28 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#27
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#28
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, SPLIT (1.6X10)
94201-16100
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
