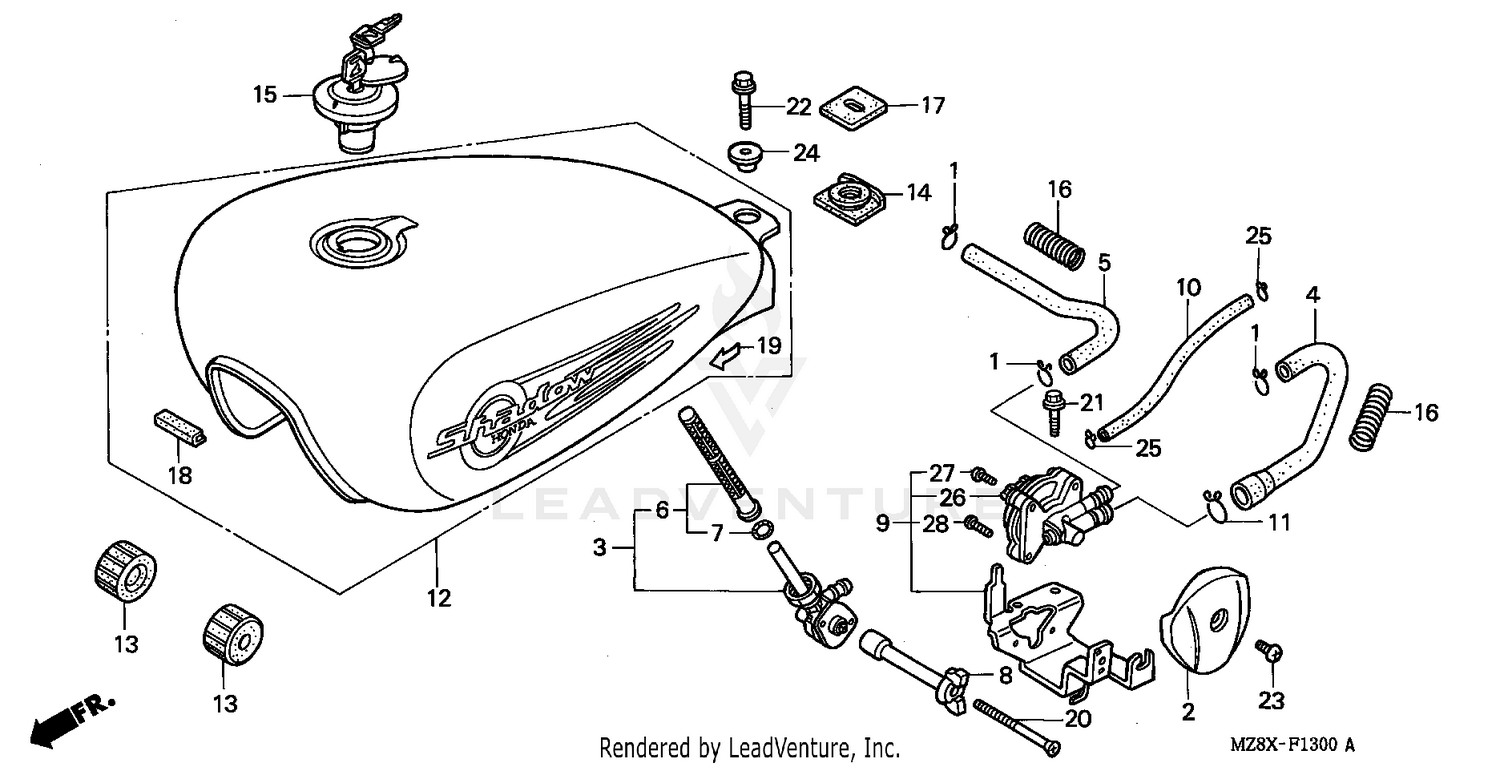

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, OIL DRAIN TUBE
15771-551-000
|
$11.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, THROTTLE LINK
16112-MR1-000
|
$27.42 | ||
|
Available to order. Add to View Price |
|||
|
#3
PETCOCK ASSY.
16950-MZ8-L21
Superseded by 16950-MZ8-L23
|
$121.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
PETCOCK ASSY.
16950-MZ8-L22
Superseded by 16950-MZ8-L23
|
$121.96 | ||
|
Unavailable |
|||
|
#3
PETCOCK ASSY.
16950-MZ8-L23
|
$121.96 | ||
|
Unavailable |
|||
|
#4
TUBE A, FUEL
16951-MZ8-G20
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
TUBE B, FUEL
16952-MZ8-G20
|
$12.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREEN SET, FUEL STRAINER
16952-MZ8-L21
|
$23.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
16958-KM9-005
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER, PETCOCK
16963-MZ8-G20
|
$41.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
PETCOCK ASSY., AUTO
16970-MZ8-G21
Superseded by 16970-MZ8-G23
|
$255.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
PETCOCK ASSY., AUTO
16970-MZ8-G22
Superseded by 16970-MZ8-G23
|
$255.85 | ||
|
Unavailable |
|||
|
#10
TUBE, AUTO PETCOCK
16981-MZ8-G20
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP, BREATHER TUBE
17316-611-000
|
$11.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK SET, FUEL (TYPE1) (WL)
17520-MZ8-L80ZA
|
$759.38 | ||
|
Unavailable |
|||
|
#13
RUBBER, FR. FUEL TANK
17611-KE8-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
RUBBER, FR. FUEL TANK
17611-286-000
Superseded by 17611-KE8-000
|
$5.29 | ||
|
Unavailable |
|||
|
#14
CUSHION, RR. FUEL TANK
17613-MR1-000
|
$17.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, FUEL FILLER
17620-KR3-013
Superseded by 17620-KR3-023
|
$113.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, GUARD
17672-MY1-000
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER, RR. FUEL TANK SETTING
80101-KW9-970
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#18
RUBBER, PROTECTOR
83171-KW9-680
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
MARK, FUEL PETCOCK (TYPE4)
83607-KV3-300ZD
|
$2.77 | ||
|
Unavailable |
|||
|
#20
SCREW, OVAL (5X80)
90020-MZ8-G20
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (6X16)
90102-KS6-000
|
$11.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, SPECIAL FLANGE (8X28)
90103-MB0-000
|
$6.22 | ||
|
Unavailable |
|||
|
#23
SCREW A, COWL SETTING (LOWER)
90105-MJ6-841
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, FUEL TANK SETTING
90324-MZ8-G20
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, TUBE (B7)
95002-02070
|
$1.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
