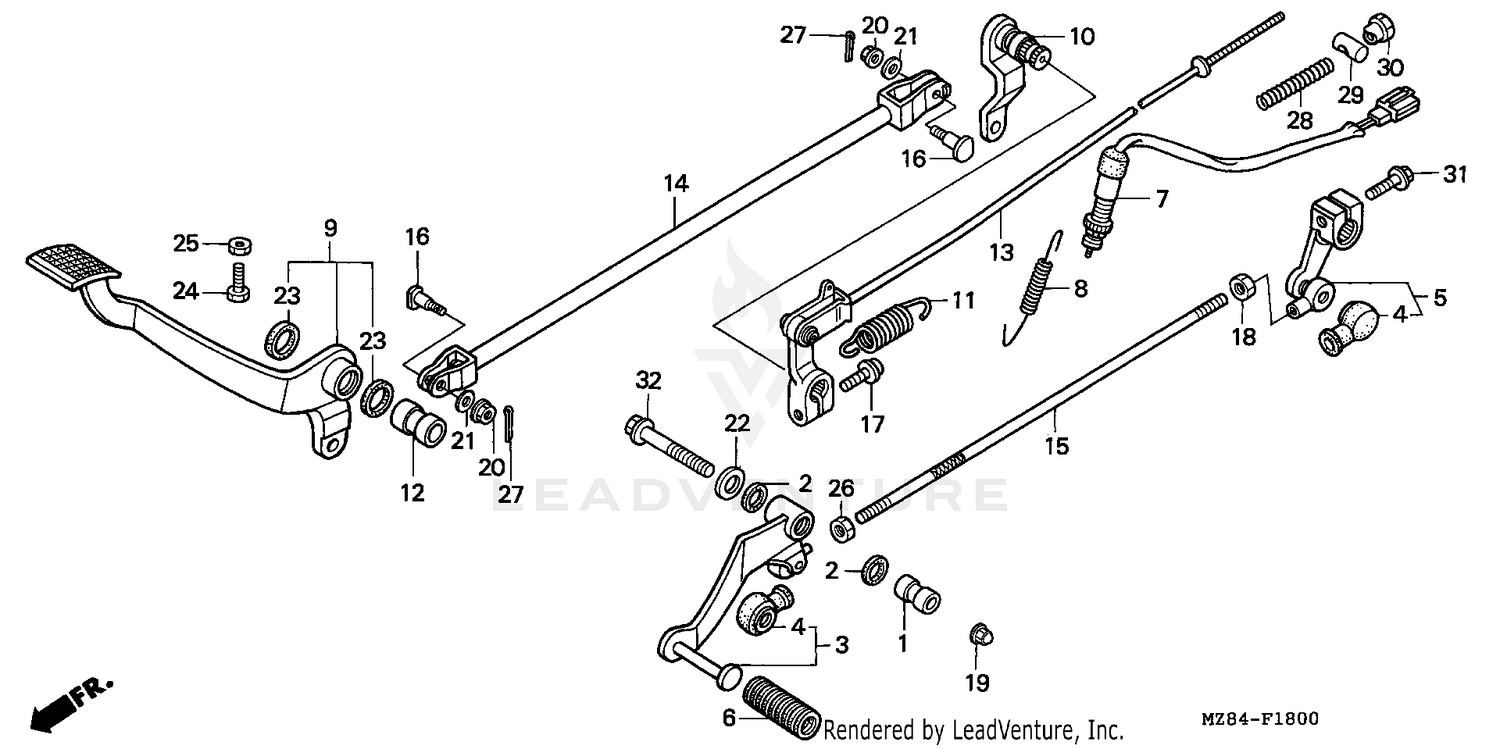

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, GEARSHIFT PEDAL PIVOT
24705-MK3-000
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, DUST SEAL
24706-MK3-770
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT
24715-MBS-000
Superseded by 24715-MZ8-R50
|
$78.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT
24715-MR1-000
Superseded by 24715-MZ8-R50
|
$78.45 | ||
|
Unavailable |
|||
|
#3
PEDAL, GEARSHIFT
24715-MZ8-R50
|
$78.45 | ||
|
Unavailable |
|||
|
#4
COVER, DUST
24724-422-000
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
ARM, GEARSHIFT
24725-MR1-000
|
$56.02 | ||
|
Unavailable |
|||
|
#6
RUBBER, GEARSHIFT PEDAL
24781-KR3-770
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-GM2-010
Superseded by 35350-MK3-405
|
$21.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., RR. STOP
35350-MK3-405
|
$21.98 | ||
|
Unavailable |
|||
|
#8
SPRING, STOP SWITCH
35357-KE1-000
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PEDAL, RR. BRAKE
46500-MR1-000
|
$139.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, RR. BRAKE MIDDLE (NOT AVAILABLE)
46510-KW9-690
|
$37.78 | ||
|
Unavailable |
|||
|
#11
SPRING, BRAKE RETURN
46514-MR1-770
|
$5.31 | ||
|
Unavailable |
|||
|
#12
COLLAR, RR. BRAKE PIVOT
46515-MM8-000
|
$14.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, RR. BRAKE
46525-MR1-010
|
$61.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
ROD, RR. BRAKE MIDDLE (NOT AVAILABLE)
46540-MR1-000
|
$58.97 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, TIE ROD
90065-MR1-003
|
$28.66 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, MIDDLE ROD JOINT
90104-MR1-000
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SOCKET (8X28)
90154-MJ0-000
|
$5.07 | ||
|
Unavailable |
|||
|
#18
NUT, HEX. (8MM)
90201-MR1-000
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CAP (8MM)
90208-438-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U (6MM) (FUSE RASHI)
90301-473-003
|
$5.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER (6MM)
90502-HB3-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER (8MM)
90514-921-000
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#23
DUST SEAL (17X23X3) (NOK)
91206-968-003
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. (6X16)
92101-06016-0B
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEX. (6MM)
94002-06020-0S
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEX. (8MM)
94002-08020-0S
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, SPLIT (2.0) (NOT AVAILABLE)
94201-20100
|
$3.78 | ||
|
Unavailable |
|||
|
#28
SPRING A, BRAKE ROD
95014-73100
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT B, BRAKE ARM
95015-32001
|
$1.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT B, BRAKE ROD ADJUSTING
95015-42000
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BOLT, FLANGE (8X45)
95701-08045-00
|
$1.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
