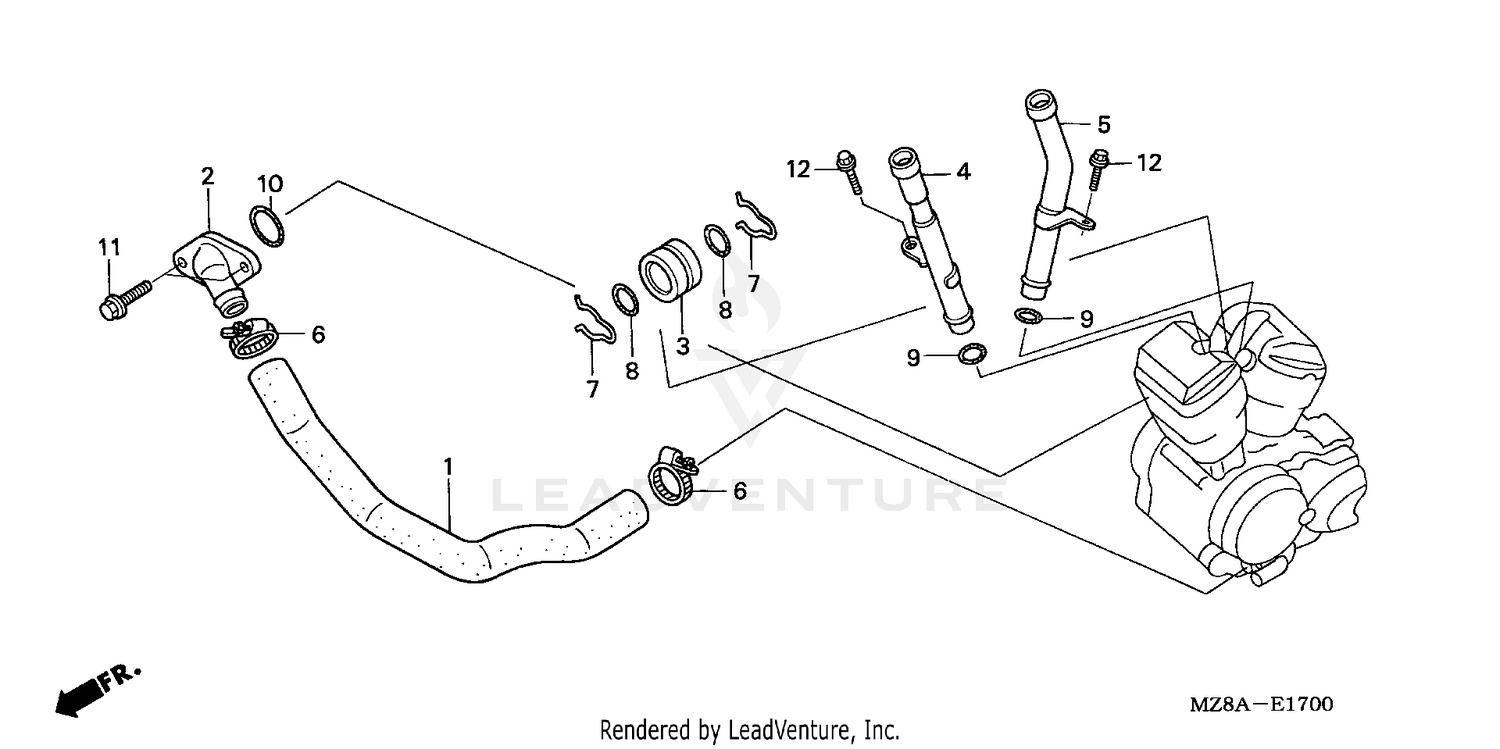

Water Pipe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, MAIN WATER
19501-MR1-000
|
$34.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, WATER HOSE
19503-MR1-000
|
$50.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT, WATER
19505-MR1-000
|
$25.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, FR. OUTLET WATER
19511-MR1-000
|
$17.18 | ||
|
Unavailable |
|||
|
#5
PIPE, RR. OUTLET WATER
19512-MZ8-H00
|
$12.66 | ||
|
Unavailable |
|||
|
#6
CLAMP, HOSE (24-32MM)
19516-ML7-691
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, RING (18MM)
90601-MR1-000
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (18X2.6) (ARAI)
91306-KK4-003
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, WATER PIPE (ARAI)
91315-ME9-003
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
91356-169-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X20)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
