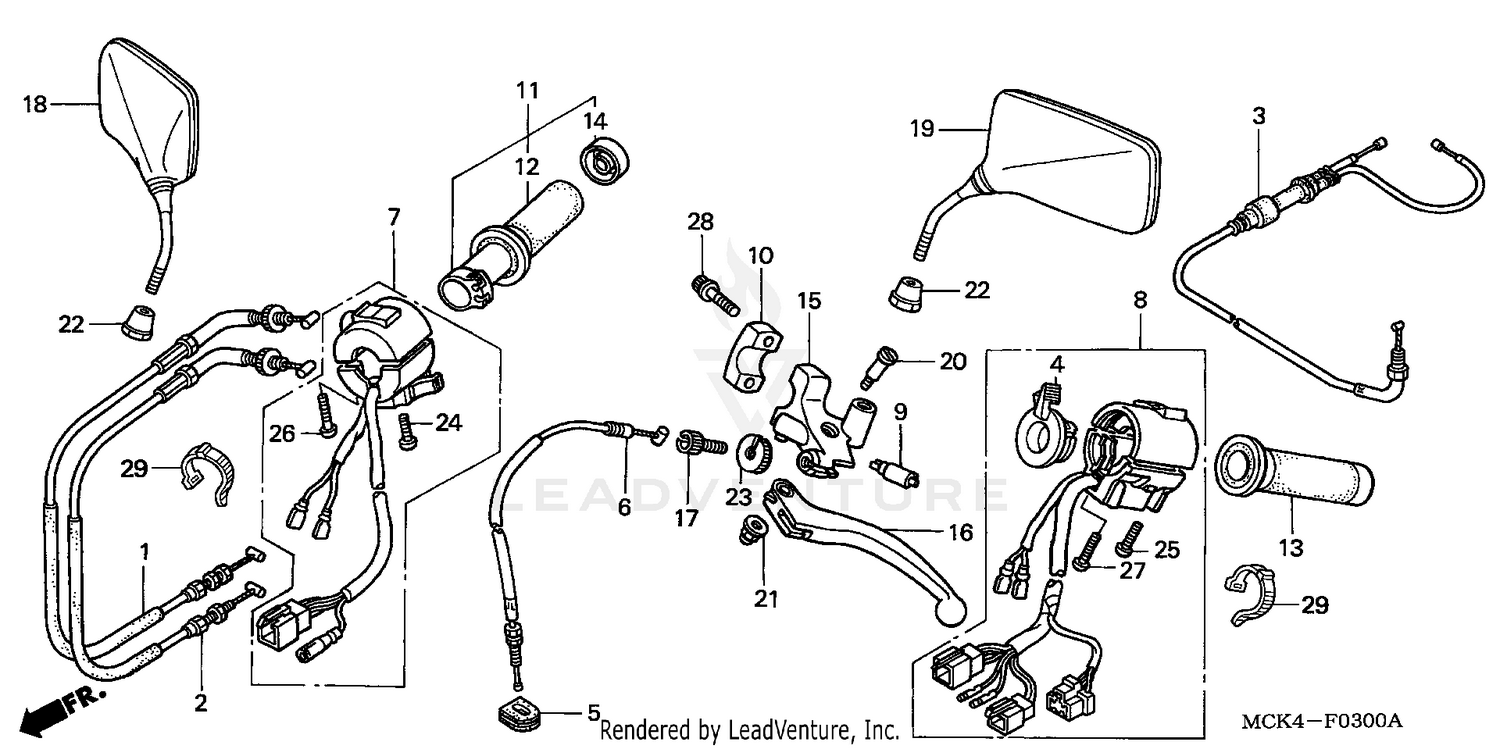

Handle Switch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE A, THROTTLE
17910-MCK-A00
|
$34.87 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MCK-A00
|
$34.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CHOKE
17950-MCK-A00
|
$75.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEVER, CHOKE
17962-MZ0-671
|
$26.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET, WIRE
19905-ZA8-701
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE, CLUTCH
22870-MCK-A00
|
$28.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., STARTER & STOP
35013-MBH-660
Superseded by 35013-MAH-A02
|
$166.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY., STARTER & STOP
35013-MBH-670
Superseded by 35013-MAH-A02
|
$166.75 | ||
|
Unavailable |
|||
|
#7
SWITCH ASSY., STARTER & STOP
35013-MBH-671
Superseded by 35013-MAH-A02
|
$166.75 | ||
|
Unavailable |
|||
|
#8
SWITCH SET, TURN SIGNAL
35020-MCK-A00
|
$155.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
SWITCH, FR. LEVER
35330-413-003
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, MASTER CYLINDER (NISSIN)
45517-MR1-671
|
$33.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, R.
53145-MM8-000
|
$53.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
GRIP, R.
53145-MM8-000
|
$53.13 | ||
|
Unavailable |
|||
|
#12
GRIP, R.
53165-MM8-000
Superseded by 53145-MM8-000
|
$53.13 | ||
|
Unavailable |
|||
|
#13
GRIP, L. HANDLE
53166-KCR-000
|
$44.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP, GRIP END
53167-MM8-000
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, HANDLE LEVER
53172-MR1-000
|
$43.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
LEVER, L. HANDLE
53178-MAH-000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WIRE ADJUSTING
53192-268-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
MIRROR, R.
88210-GCK-000
|
$78.26 | ||
|
Available to order. Add to View Price |
|||
|
#19
MIRROR, L.
88220-GCK-000
|
$83.01 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, CAP (6MM)
90201-415-000
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
NUT, LOCK
90314-323-000
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FIXING
90321-MA6-750
|
$12.65 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, PAN (5X22)
93500-05022-0A
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (5X25)
93500-05025-0A
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN (5X32)
93500-05032-0A
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, SOCKET (6X22)
96600-06022-10
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, SOCKET (6X22)
96700-06022-10
Superseded by 96600-06022-10
|
$2.40 | ||
|
Unavailable |
|||
