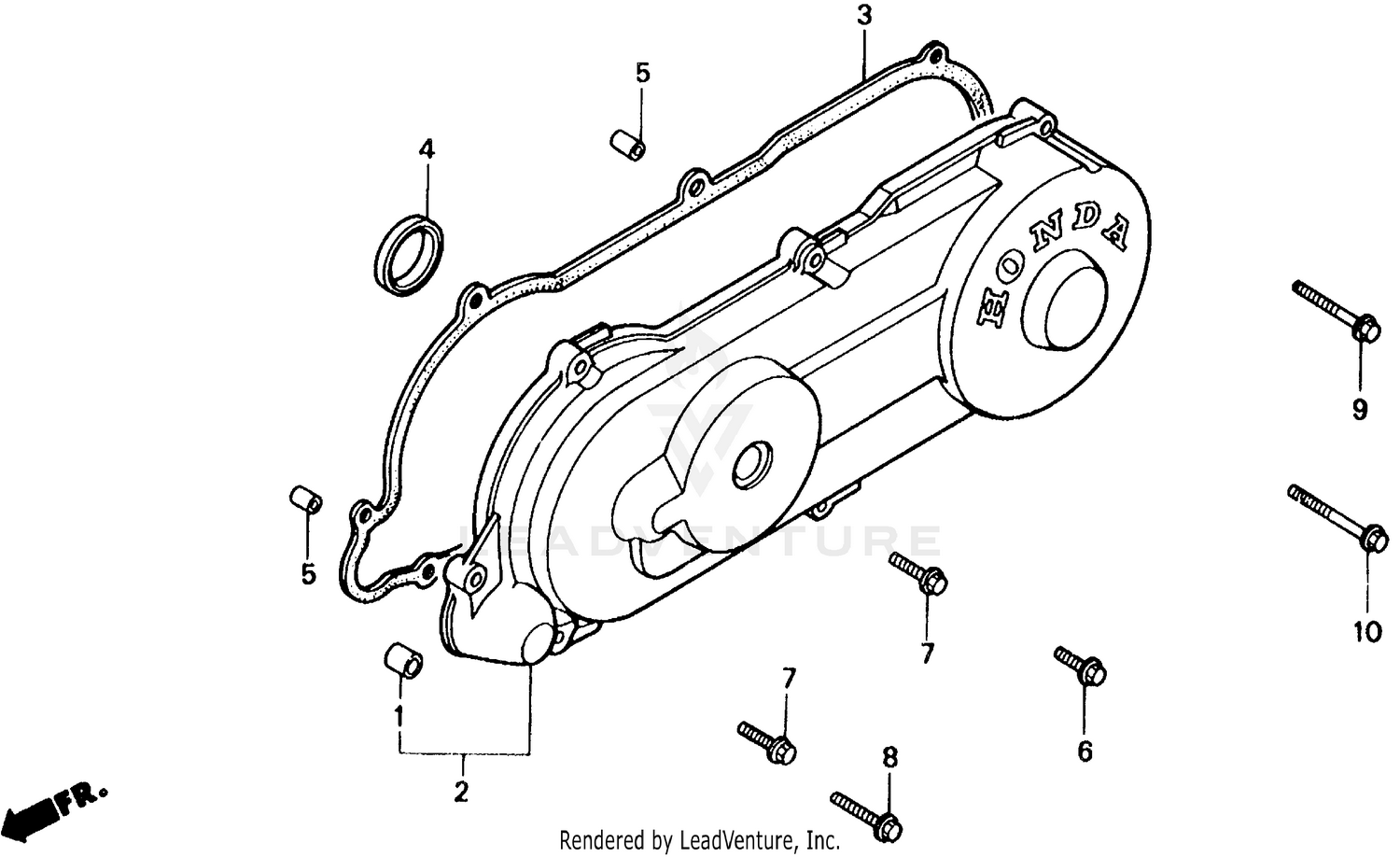

Left Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BUSH (8X12X8)
11205-GAH-003
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#1
BUSH (8X12X8)
11205-GF0-761
Superseded by 11205-GAH-003
|
$11.16 | ||
|
Unavailable |
|||
|
#2
COVER, L. SIDE
11340-GS6-700
|
$155.78 | ||
|
Unavailable |
|||
|
#2
COVER, L. SIDE
11340-GS6-705
Superseded by 11340-GS6-700
|
$155.78 | ||
|
Unavailable |
|||
|
#3
GASKET, L. CRANKCASE COVER
11395-GS6-000
Superseded by 11395-GS6-405
|
$20.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, L. CRANKCASE COVER
11395-GS6-405
|
$20.14 | ||
|
Unavailable |
|||
|
#4
COLLAR, KICK BOSS
28255-GS6-000
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN A, DOWEL (10X14)
94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#5
PIN A, DOWEL (10X14)
90703-HC4-000
Superseded by 94301-10140
|
$2.58 | ||
|
Unavailable |
|||
|
#6
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X40)
96001-06040-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X55)
96001-06055-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
