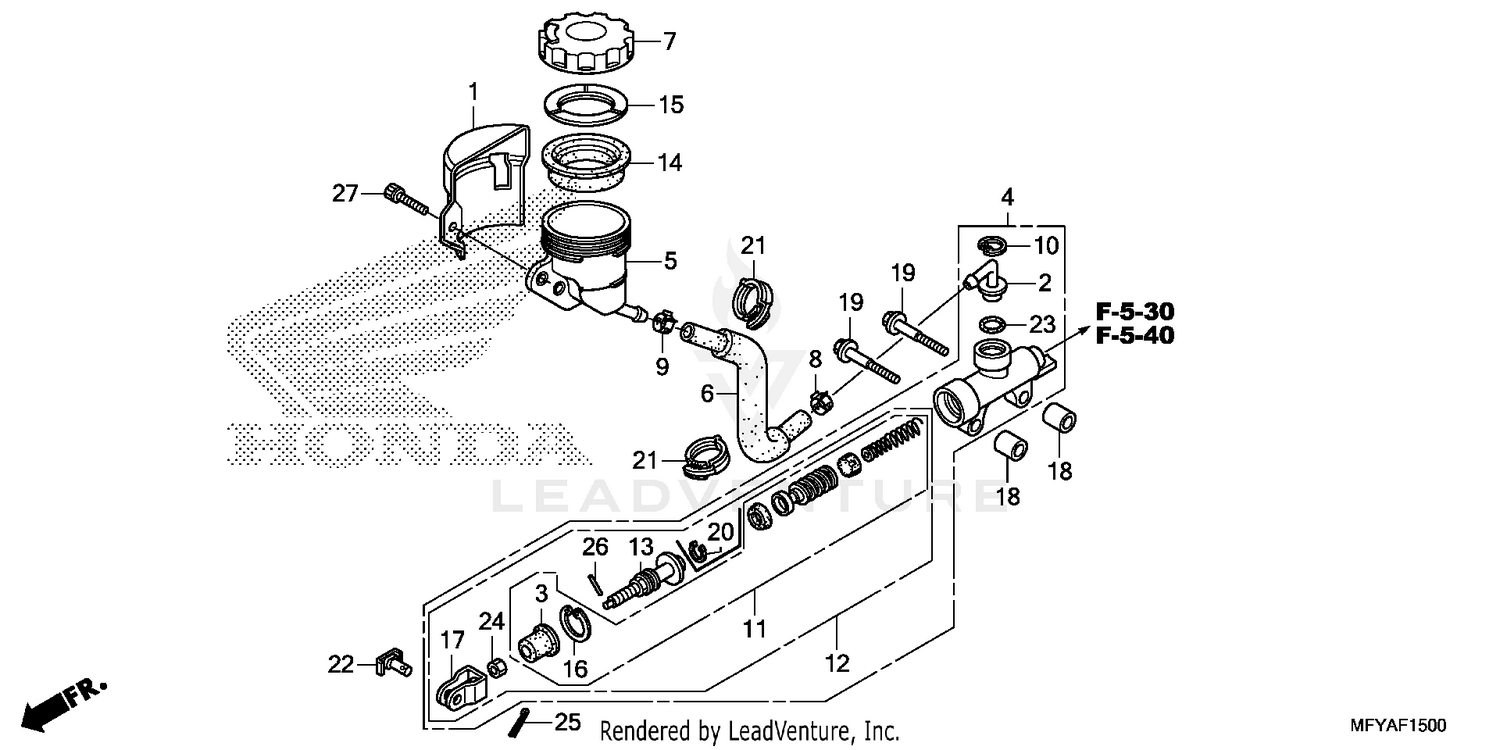

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, RR. BRAKE OIL CUP
21341-MCH-000
|
$21.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, MASTER CYLINDER
43503-KS6-701
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
43510-MFR-305
Superseded by 43510-MFR-671
|
$237.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
43510-MFR-671
|
$237.56 | ||
|
Unavailable |
|||
|
#5
CUP, MASTER CYLINDER OIL
43511-MA6-006
|
$49.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. MASTER CYLINDER
43512-MFR-671
|
$12.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, OIL CUP
43513-MY1-006
|
$35.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, MASTER CYLINDER OIL HOSE
43514-MN9-006
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP, RR. MASTER CYLINDER (FOR FR.)
43517-KS6-701
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MB2-315
|
$56.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
ROD, PUSH
43530-MV9-006
|
$40.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM
45520-300-000
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, DIAPHRAGM
45521-MJ6-006
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT, BRAKE ROD
46504-MAH-671
|
$16.33 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, RR. BRAKE BRACKET
50617-MFR-670
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (6X35)
95801-06035-08
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, WIRE HARNESS
90683-KJ2-003
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, JOINT
90751-MEH-000
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, HEX. (8MM)
94002-08000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, SPRING (2X10)
94305-20102
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SOCKET (6X16)
96600-06016-07
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
