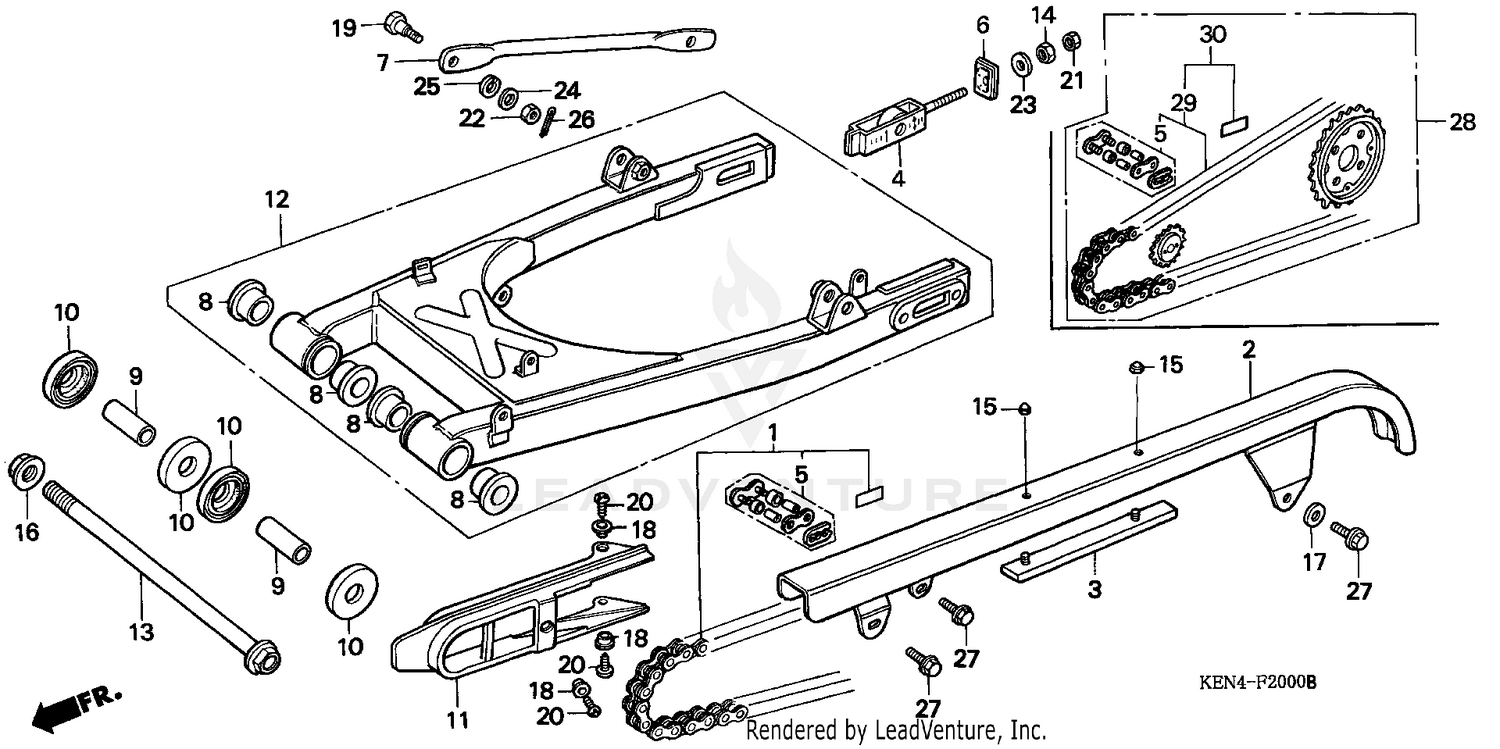

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CASE, DRIVE CHAIN
40510-KR3-600
|
$149.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SLIDER, CHAIN CASE
40515-KR3-700
|
$27.04 | ||
|
Available to order. Add to View Price |
|||
|
#4
ADJUSTER, CHAIN
40543-KR3-000
|
$39.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER LINK (DAIDO)
40545-KCN-305
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER LINK (RK EXCEL)
40545-KCN-306
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, SWINGARM END
40546-KK6-000
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, RR. BRAKE STOPPER *NH1* (BLACK)
43431-KB2-000ZC
|
$25.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SWINGARM
52108-356-006
Superseded by 52109-KC1-003
|
$22.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SWINGARM
52109-KC1-003
|
$22.13 | ||
|
Unavailable |
|||
|
#9
COLLAR, R. SWINGARM
52141-356-010
|
$99.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, SWINGARM DUST SEAL (NOK)
52144-356-005
|
$20.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SLIDER, DRIVE CHAIN
52170-KR3-601
|
$45.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWINGARM SET *NH1* (BLACK)
52200-KR3-316ZA
|
$341.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SWINGARM PIVOT
90121-KR3-600
|
$42.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPECIAL (6MM)
90302-KBP-900
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, FLANGE CAP (5MM)
90303-GC2-630
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U (14MM)
90305-GE8-003
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER (6.5X18)
90545-323-700
|
$2.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER, CHAIN SLIDER COLLAR, RR. FENDER
90556-KR3-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT A, STOPPER ARM
92812-10000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (5X8)
93901-25080
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN (6MM) (USED ON TAILLIGHT)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (8MM)
94101-08000
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPRING (10MM)
94111-10000
|
$1.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PIN, COTTER (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X8)
96001-06008-02
|
$1.76 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN KIT, DRIVE (520-120L)
06406-KEN-A11
Superseded by 06406-KEN-A12
|
$208.30 | ||
|
Unavailable |
|||
|
#30
*40540-KPM-305
06405-KCN-P00
Superseded by 06405-KPM-P00
|
$120.72 | ||
|
Unavailable |
|||
|
#30
CHAIN SET, DRIVE (RK520 112L-120L) (RK EXCEL) (STANDARD LINK 106L) (NOT AVAILABLE)
06405-KCN-P10
|
$131.69 | ||
|
Unavailable |
|||
