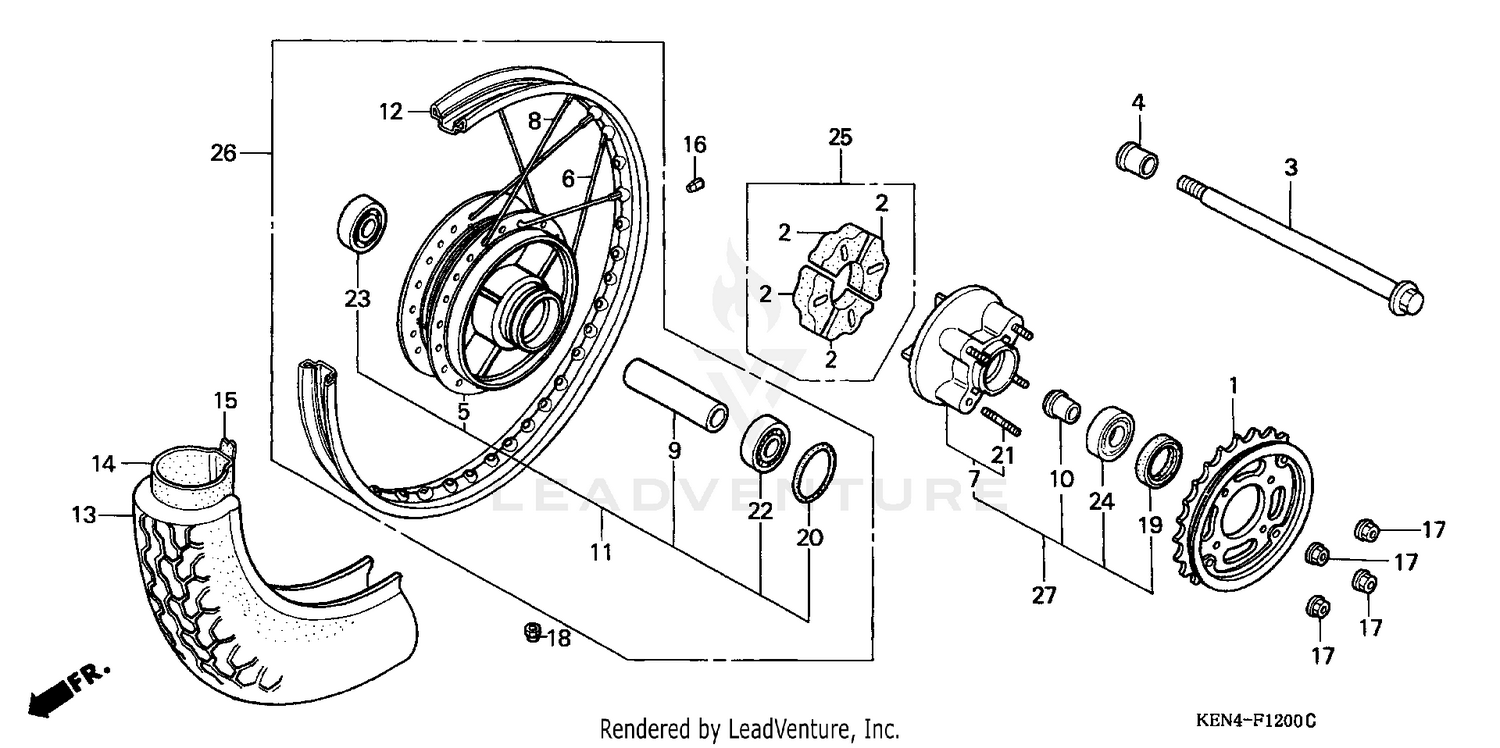

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, FINAL DRIVEN (33T)
41200-KEN-670
|
$106.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, RR. WHEEL
42301-KR3-601
|
$37.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, RR. WHEEL SIDE
42312-KR3-000
|
$17.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPOKE SET A, RR. (B9X120.5) (INSIDE)
42610-KR3-405
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPOKE SET B, RR. (B9X120) (OUTSIDE)
42611-KR3-405
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, RR. AXLE DISTANCE
42620-KE1-000
|
$26.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR B, RR. AXLE DISTANCE
42625-KR3-000
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
HUB SUB-ASSY., RR.
42635-KEN-A50
|
$404.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIM, RR. WHEEL
42701-KR3-013
Superseded by 42701-KR3-023
|
$98.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIM, RR. WHEEL
42701-KR3-023
|
$98.15 | ||
|
Unavailable |
|||
|
#13
TIRE, RR. (130/90-15) (66P G508) (BS)
42711-KR3-U01
|
$206.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
TIRE, RR. (130/90-15) (66P G508) (BS)
42711-KR3-609
Superseded by 42711-KR3-U01
|
$206.40 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (130/90-15) (DUNLOP)
42712-KR3-003
Superseded by 42712-KR3-004
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, TIRE (130/90-15) (DUNLOP)
42712-KR3-004
|
$45.31 | ||
|
Unavailable |
|||
|
#14
TUBE, TIRE (130/90-15) (DUNLOP)
42712-KR3-009
Superseded by 42712-KR3-004
|
$45.31 | ||
|
Unavailable |
|||
|
#15
FLAP, TIRE (2.75-15) (DUNLOP)
42713-KR3-003
Superseded by 42713-KR3-004
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
FLAP, TIRE (2.75-15) (DUNLOP)
42713-KR3-004
|
$9.75 | ||
|
Unavailable |
|||
|
#16
BALANCER, WHEEL (20G)
44606-283-000
|
$10.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (10MM) NUT, SELF-LOCK (10MM)
90304-GE8-003
|
$4.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
NUT, TIRE VALVE
90306-371-003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (28X42X7) (ARAI)
91257-230-000
Superseded by 91257-230-003
|
$13.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
OIL SEAL (28X42X7) (ARAI)
91257-230-003
|
$13.31 | ||
|
Unavailable |
|||
|
#19
OIL SEAL (28X42X7) (ARAI)
91257-230-005
Superseded by 91257-230-003
|
$13.31 | ||
|
Unavailable |
|||
|
#20
O-RING (42X2.4)
91304-704-000
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, STUD (10X45)
92716-10045-0E
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, RADIAL BALL (6202U) (FUJIKOSHI)
91051-KEB-G01
|
$12.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6302UU)
96140-63020-10
Superseded by 96150-63020-10
|
$18.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (6302UU)
96150-63020-10
|
$18.62 | ||
|
Unavailable |
|||
|
#24
BEARING, RADIAL BALL (6004UU)
96150-60040-10
|
$23.66 | ||
|
Unavailable |
|||
|
#25
DAMPER SET, WHEEL
06410-KR3-620
|
$60.27 | ||
|
Available to order. Add to View Price |
|||
|
#26
WHEEL SUB-ASSY., RR.
42650-KEN-A50
Superseded by 42650-KEN-A51
|
$459.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
WHEEL SUB-ASSY., RR.
42650-KEN-A51
|
$459.13 | ||
|
Unavailable |
|||
|
#27
FLANGE SUB-ASSY., RR. DRIVEN
42615-KR3-620
|
$280.31 | ||
|
Available to order. Add to View Price |
|||
